Top » Piese de schimb » Piese Stanley » SFMCSTB963B Type 1

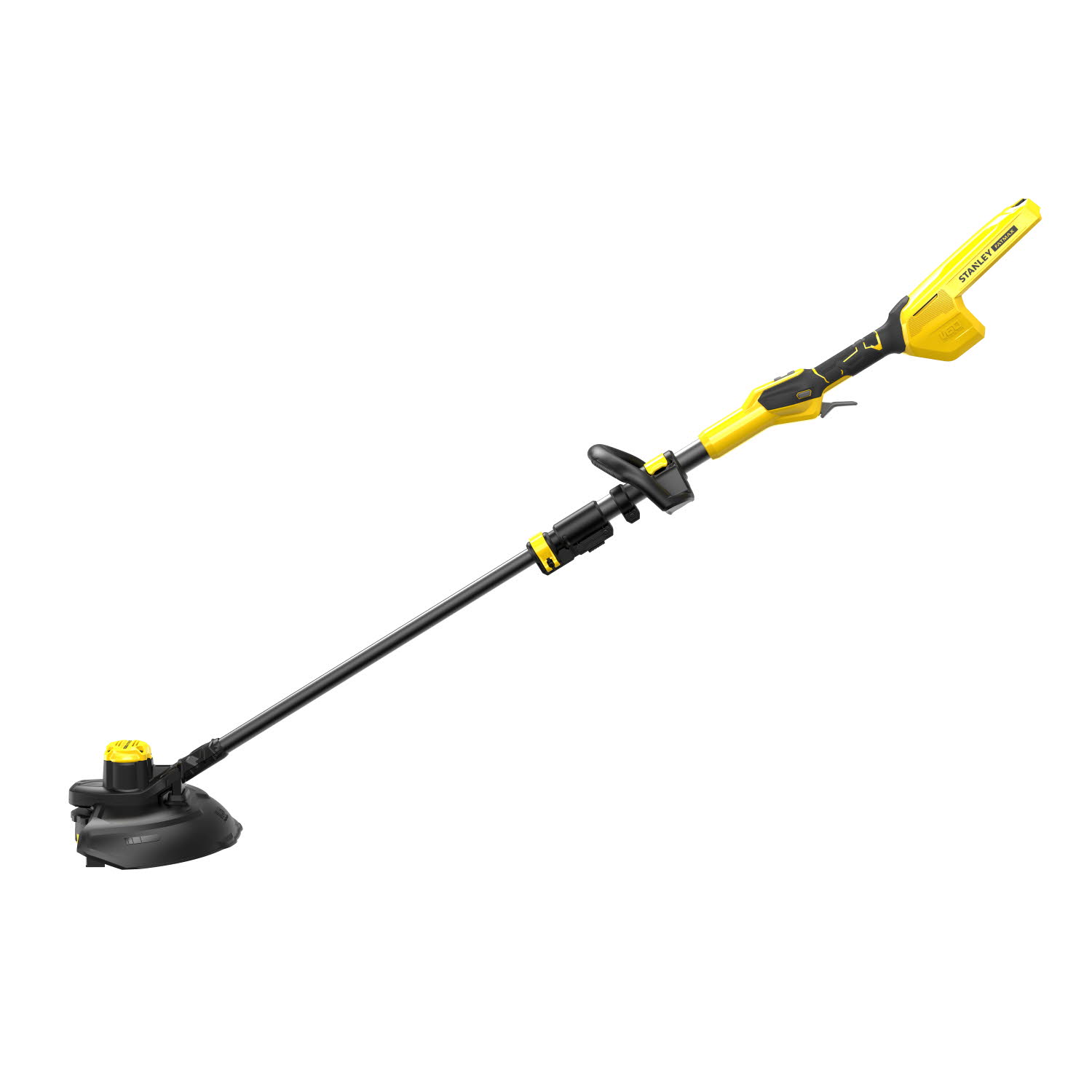

TRIMER CU FIR STANLEY SFMCSTB963B Type 1
[SFMCSTB963B Type 1]
TRIMER CU FIR STANLEY SFMCSTB963B Type 1
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR STANLEY SFMCSTB963B Type 1
Click pentru a mari
TRIMER CU FIR STANLEY SFMCSTB963B Type 1
Click pentru a mari

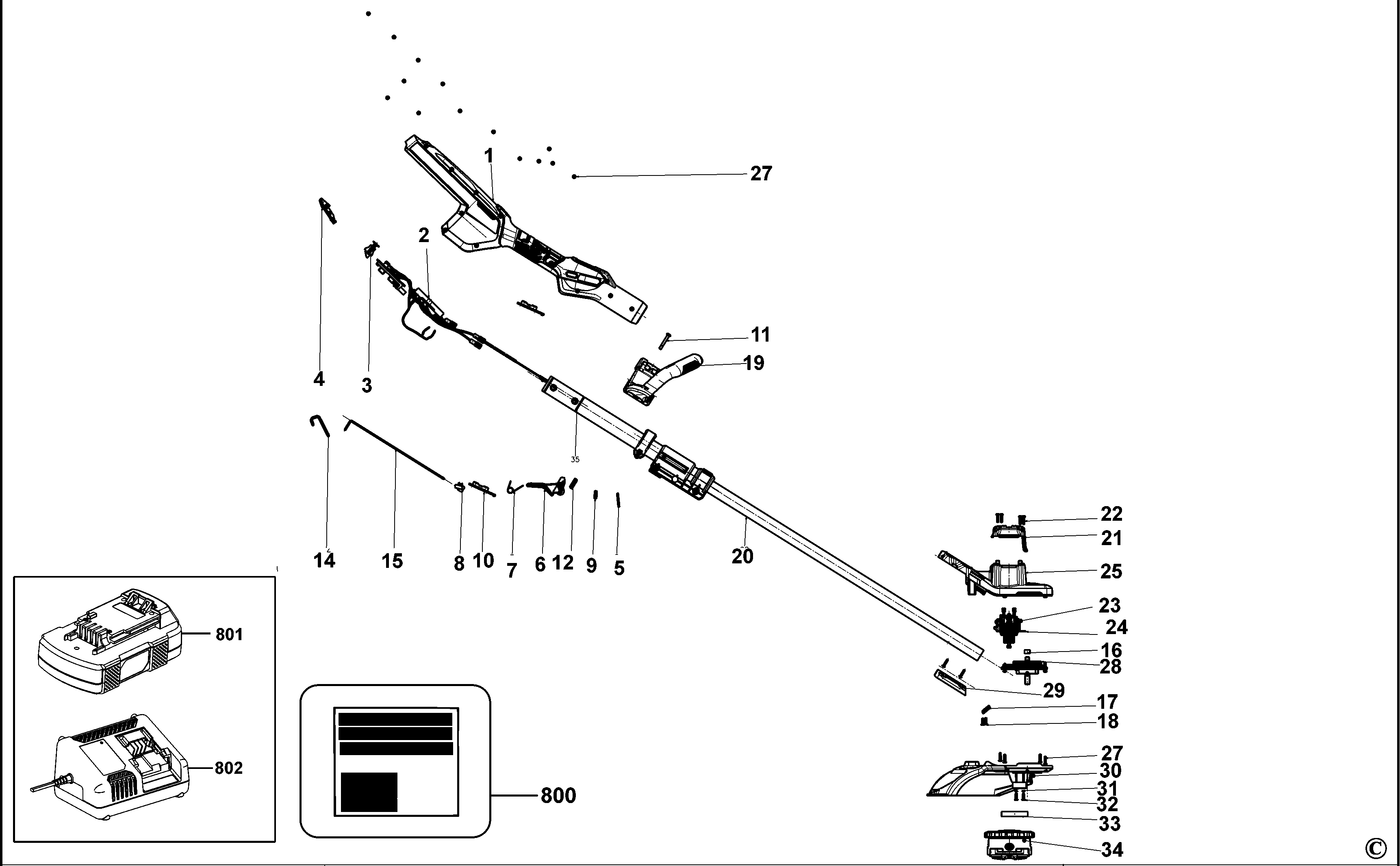

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (N715559) 21676 RON
2 1 1 MODULE (N855924) 42426 RON
3 1 1 LATCH (N859852) 944 RON
4 1 1 Button Latch CM 60V (N580658) 82 RON
5 1 1 PIN (90618343) 588 RON
6 1 1 TRIGGER (N602434) 82 RON
7 1 1 SPRING (N616757) 588 RON
8 1 1 LOCK BUTTON (N595796) 668 RON
9 1 1 SPRING COMPRESSION (90559867) 588 RON
10 1 1 BUTTON (N595797) 588 RON
11 1 1 SCREW (90579167) 588 RON
12 1 1 SWITCH (90600458) 2182 RON
13 1 1 HARNESS (N764260) 2182 RON
14 1 1 CLIP (N545340) 944 RON
15 1 1 SWITCH (N599648) 588 RON
16 1 1 BEARING, NEEDLE (330004-27) 944 RON
17 1 1 CLAMP CORD CORNER (329301-00) 558 RON
18 1 1 SCREW (373158) 558 RON
19 1 1 HANDLE (N715567) 5370 RON
20 1 1 POLE PIECE SA (N718958) 18568 RON
21 1 1 MOTOR SA (N718982) 48037 RON
22 1 1 COVER (N859854) 13697 RON
23 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
24 1 1 BAG (585145-02) 588 RON
25 1 1 CLAMP (N715566) 668 RON
26 1 1 SCREW (90611830) 588 RON
27 1 1 SCREW (747329) 558 RON
28 1 1 SPINDLE LOCK (90607066) 1933 RON
29 1 1 SPOOL CARRIER (N719010) 15469 RON
30 1 1 RING (N598162) 588 RON
31 1 1 HARNESS (N726848) 11337 RON
32 1 1 SWITCH SA (N804842) 15469 RON
33 1 1 BLOCK (N726850) 9012 RON
34 1 1 CONNECTOR (N737355) 944 RON
34 1 1 SPOOL CARRIER (N719010) 15469 RON
34 1 1 CONNECTOR (650974-00) 668 RON
35 1 1 TIP (N755866) 588 RON
800 1 1 000000-99 - Indisponibil
801 1 1 000000-04 - Indisponibil
802 1 1 000000-04 - Indisponibil
