Top » Piese de schimb » Piese Stanley » SFMCM300B Type 1

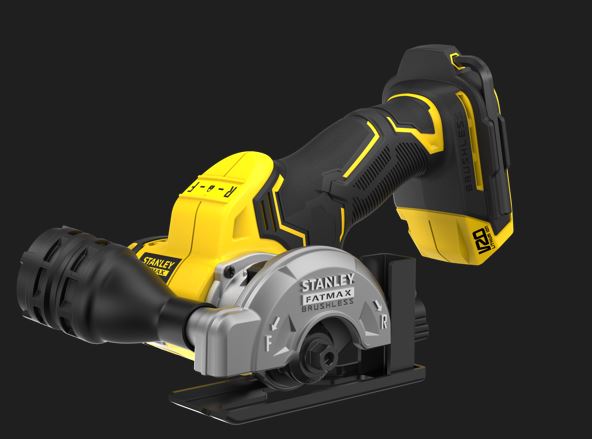

TAIERE STANLEY SFMCM300B Type 1
[SFMCM300B Type 1]
TAIERE STANLEY SFMCM300B Type 1
Click pentru a mari
Imagini suplimentare
TAIERE STANLEY SFMCM300B Type 1
Click pentru a mari
TAIERE STANLEY SFMCM300B Type 1
Click pentru a mari

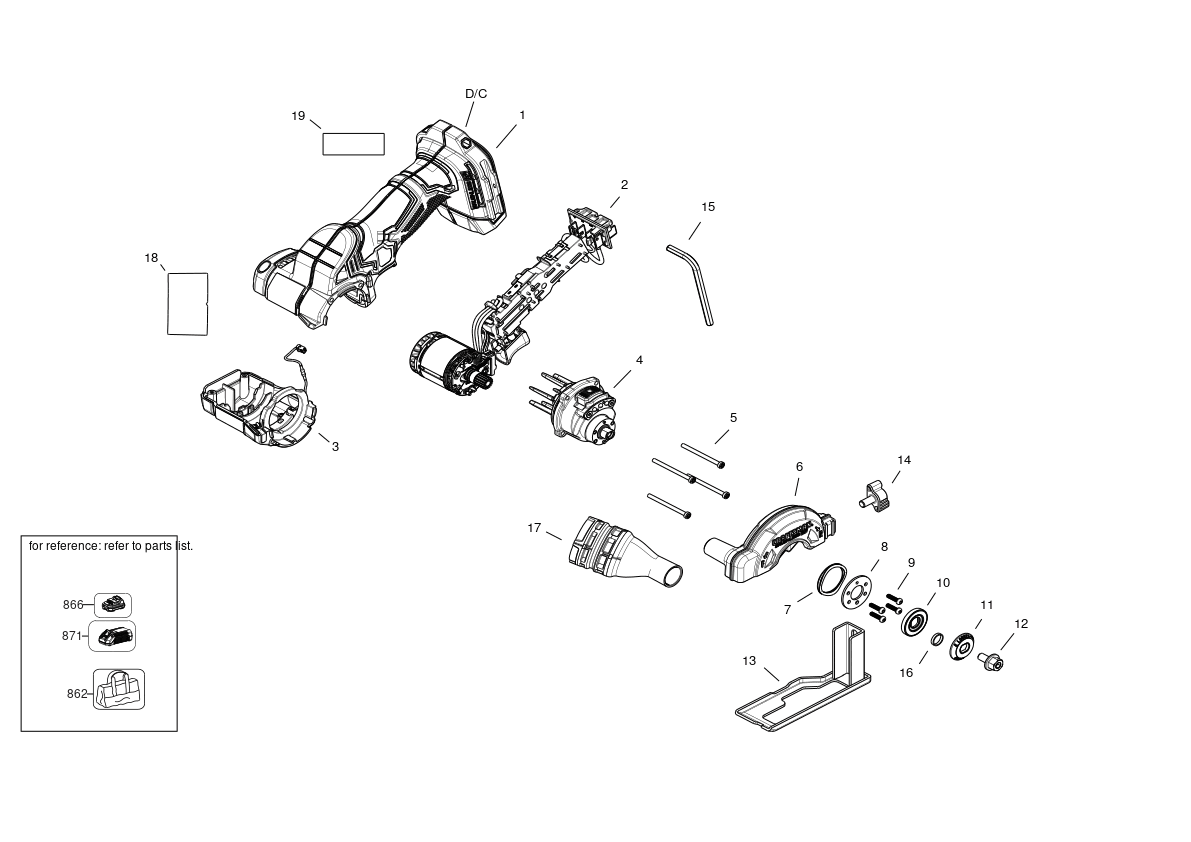

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (NA308577) 4827 RON
2 1 1 MOTOR & SWITCH SA (NA532832) 78485 RON
3 1 1 MOTOR HOUSING SA (NA553588) 5370 RON
4 1 1 GEARCASE SA (NA532828) 24962 RON
5 1 4 Screw M3.15 X42 (330019-63) 558 RON
6 1 1 GUARD SA (NA553573) 10241 RON
7 1 1 WASHER SPRING (NA415712) 668 RON
8 1 1 GUARD PLATE (N767663) 588 RON
9 1 4 SCREW-SCREW M3X0.5X12LG PAN HEAD TORX (NA381321) 588 RON
10 1 1 INNER FLANGE (N802185) 668 RON
11 1 1 OUTER FLANGE (NA072546) 82 RON
12 1 1 BLADE BOLT (N864353) 668 RON
13 1 1 GUARD CUT OFF (NA126731) 4355 RON
14 1 1 KNOB (N116069) 781 RON
15 1 1 WRENCH (NA071697) 82 RON
16 1 1 BUSHING (N901038) 114 RON
17 1 1 DUST PORT (NA138542) 2182 RON
18 1 1 NA360730 - Indisponibil
18 1 1 RATING LABEL (NA623179) 588 RON
19 1 1 LABEL-FORWARD/REVERSE LABEL (NA365946) 588 RON
