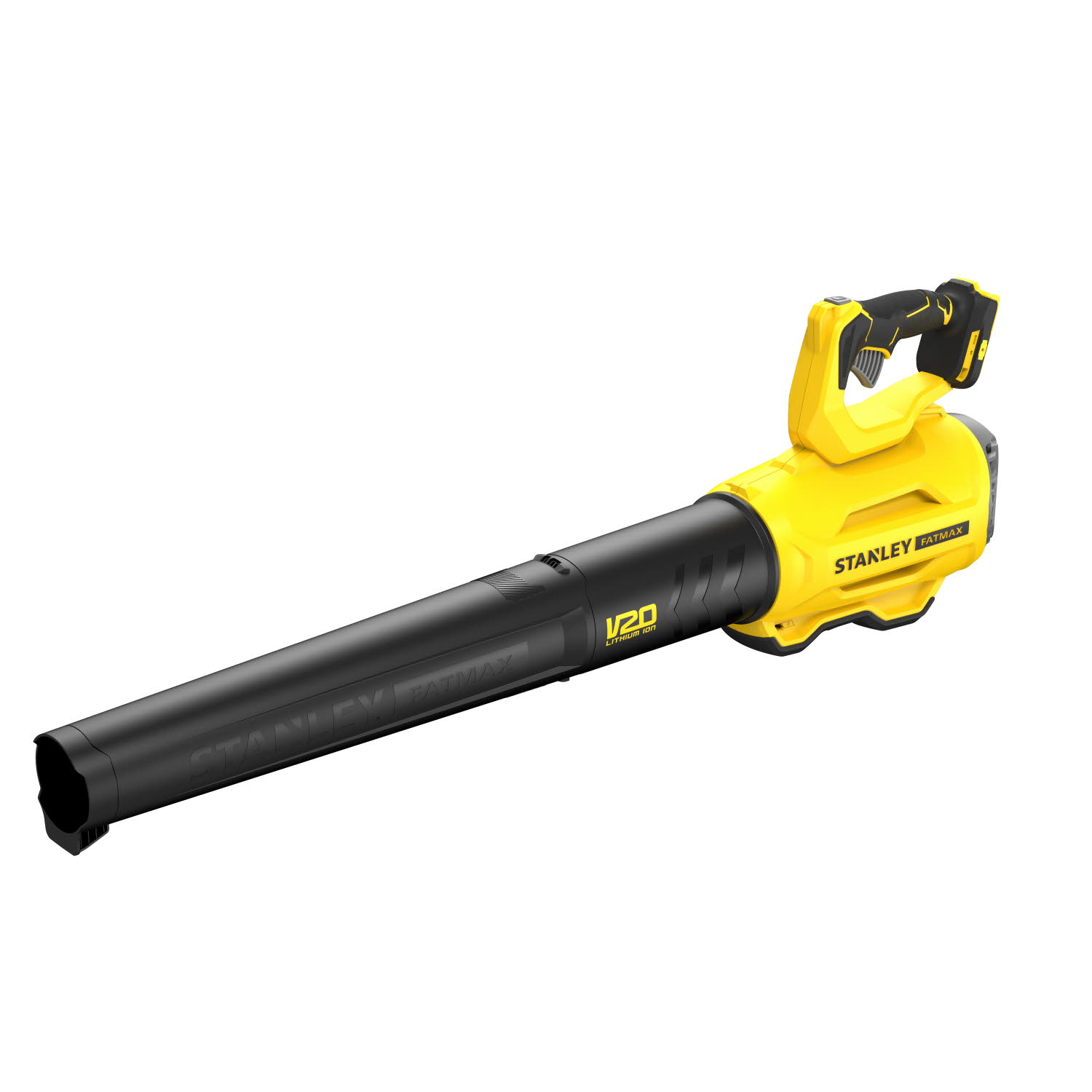

SUFLANTA STANLEY SFMCBL7 Type 1
[SFMCBL7 Type 1]
SUFLANTA STANLEY SFMCBL7 Type 1
Click pentru a mari
Imagini suplimentare
SUFLANTA STANLEY SFMCBL7 Type 1
Click pentru a mari
SUFLANTA STANLEY SFMCBL7 Type 1
Click pentru a mari

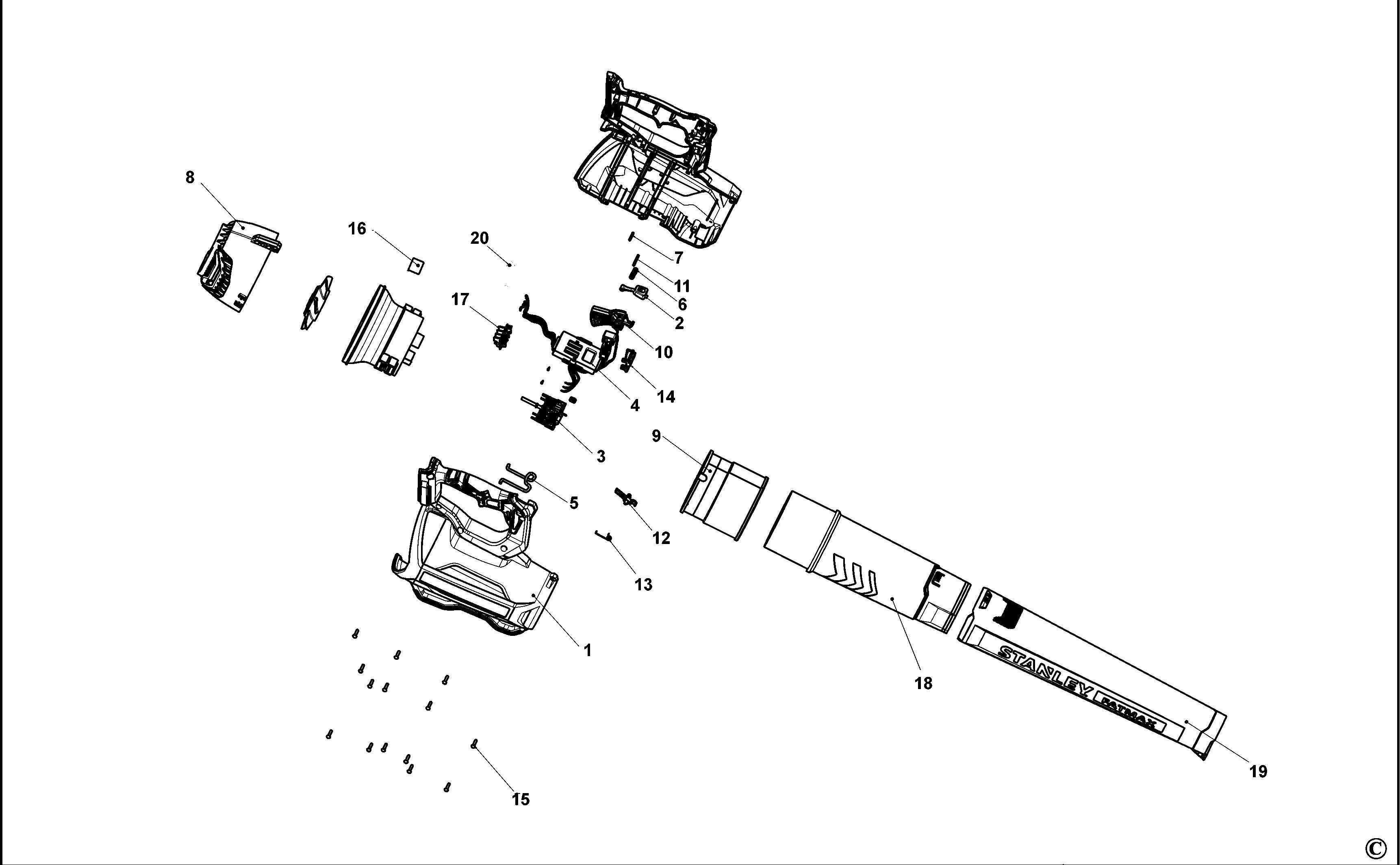

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N732116) 28836 RON
2 1 1 BUTTON (N561314) 668 RON
3 1 1 MOTOR SA (N694522) 27287 RON
4 1 1 MODULE (N856099) 51127 RON
5 1 1 CLIP (N545340) 944 RON
6 1 1 SPRING (90623558) 588 RON
7 1 1 PIN (632492-00) 781 RON
8 1 1 INLET (N531215) 4355 RON
9 1 1 HOUSING (90614111) 2796 RON
10 1 1 ACTUATOR (N567167) 944 RON
11 1 1 PIN (330041-57) 588 RON
12 1 1 CLIP (90605748) 588 RON
13 1 1 SPRING TORSION (90609997) 588 RON
14 1 1 SWITCH (90605114) 588 RON
15 1 1 SCREW (90611830) 588 RON
16 1 1 FOAM (90620643) 588 RON
17 1 1 PCB (N727992) 4827 RON
18 1 1 TUBE (N704775) 4355 RON
19 1 1 TUBE (N719663) 4827 RON
20 1 1 NUT (N633355) 588 RON
800 1 1 RATING LABEL (N729767) 668 RON
