Top » Piese de schimb » Piese Stanley » SFMCBL01B Type 1

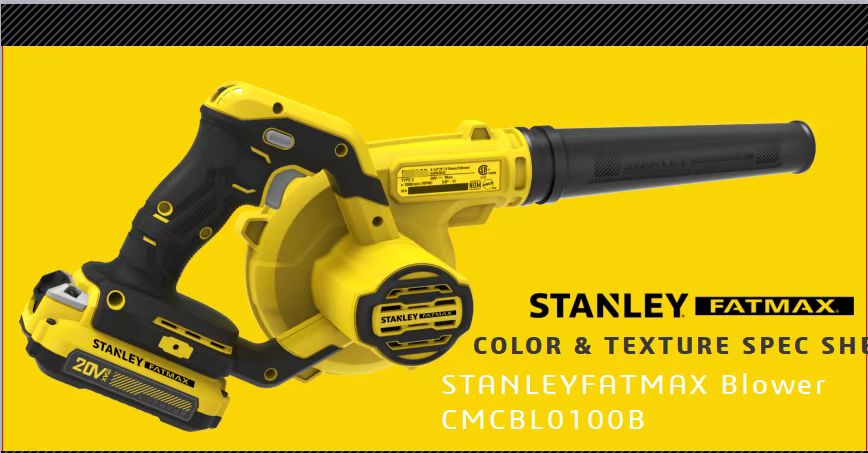

SUFLANTA STANLEY SFMCBL01B Type 1
[SFMCBL01B Type 1]
SUFLANTA STANLEY SFMCBL01B Type 1
Click pentru a mari
Imagini suplimentare
SUFLANTA STANLEY SFMCBL01B Type 1
Click pentru a mari
SUFLANTA STANLEY SFMCBL01B Type 1
Click pentru a mari

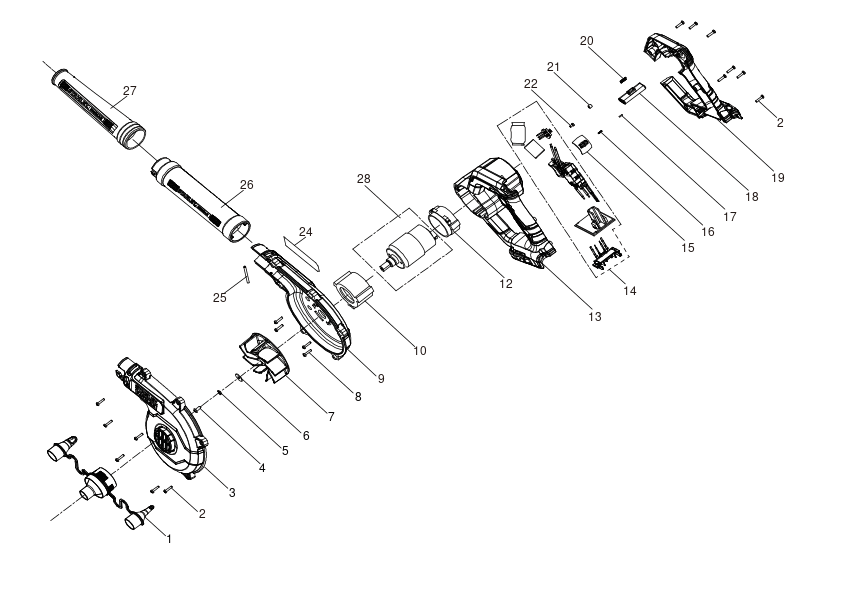

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ADAPTOR SA (5170046-00) 3268 RON
2 1 13 SCREW (N433236) 668 RON
3 1 1 COVER (N851804) 741 RON
4 1 1 SCREW (N433233) 588 RON
5 1 1 WASHER SPRING (N433232) 588 RON
6 1 1 WASHER (N433229) 588 RON
7 1 1 FAN (N433228) 2796 RON
8 1 4 SCREW (N433235) 588 RON
9 1 1 COVER (N851806) 741 RON
10 1 1 PAD (N433226) 1630 RON
11 1 1 MOTOR (5170046-01) 24962 RON
12 1 1 PAD (N433227) 1630 RON
13 1 1 MOTOR COVER (N851811) 11337 RON
14 1 1 PCB SA (N851828) 44688 RON
15 1 1 BUTTON (5170046-02) 82 RON
16 1 1 SPRING (N440805) 588 RON
17 1 1 PIN (N440804) 588 RON
18 1 1 BUTTON (5170046-03) 944 RON
19 1 1 HANDLE (N851814) 5370 RON
20 1 1 SPRING (N433493) 588 RON
21 1 1 CYLINDER (N433189) 588 RON
22 1 1 SCREW (N433234) 588 RON
23 1 1 DRIVE SHAFT (5170046-04) 3268 RON
24 1 1 RATING LABEL (N717195) 82 RON
25 1 1 NEEDLE (5170046-05) 82 RON
26 1 1 EXTENSION (N851823) 5370 RON
27 1 1 TUBE (N851825) 6688 RON
28 1 1 MOTOR SA (N433225) 20216 RON
