Top » Piese de schimb » Piese Stanley » SFMCW220B Type 1

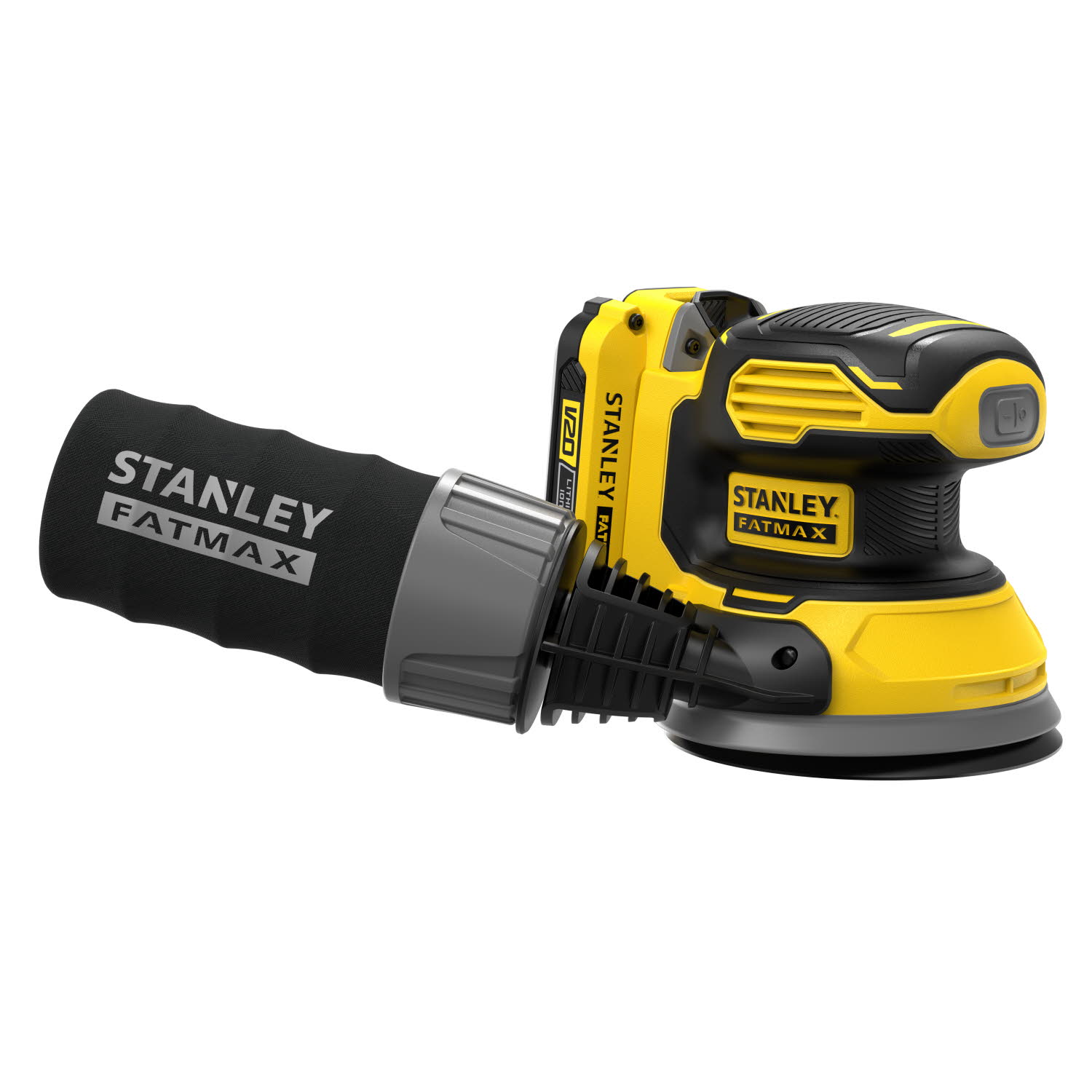

SLEFUITOR STANLEY SFMCW220B Type 1
[SFMCW220B Type 1]
SLEFUITOR STANLEY SFMCW220B Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR STANLEY SFMCW220B Type 1
Click pentru a mari
SLEFUITOR STANLEY SFMCW220B Type 1
Click pentru a mari

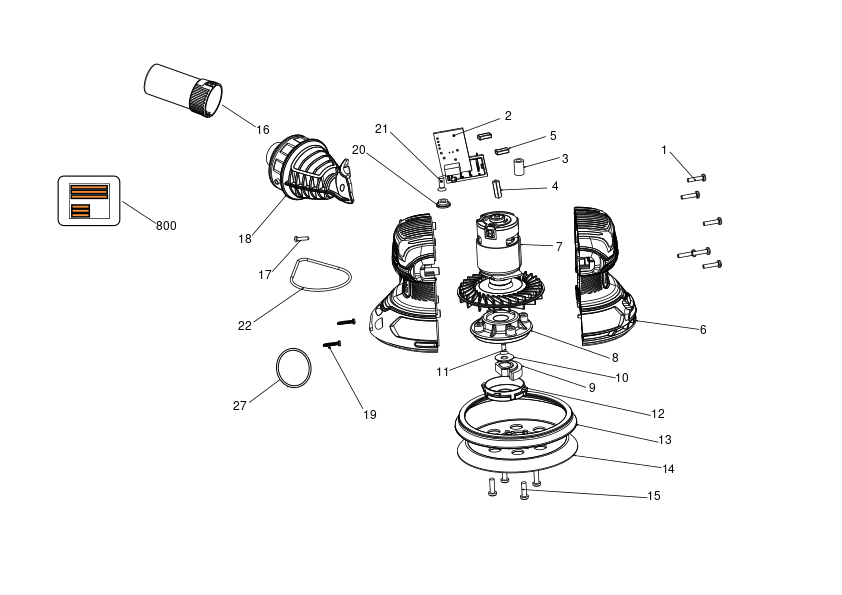

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 6 Screw M3.5X16 T15 (330019-03) 558 RON
2 1 1 PCB SA (N724283) 16689 RON
3 1 1 TUBE (90623806) 114 RON
4 1 1 CLAMP (N517679) 588 RON
5 1 2 CLAMP (N496225) 588 RON
6 1 1 HOUSING (N683178) 11337 RON
7 1 1 MOTOR SA (N543631) 20216 RON
8 1 1 HOLDER BEARING (90637216) 2796 RON
9 1 1 COUNTERWEIGHT (90638226) 944 RON
10 1 1 WASHER CONE (151652-00) 558 RON
11 1 1 SCREW (388405-00) 558 RON
12 1 1 CAP (90637460) 588 RON
13 1 1 SKIRT (N556360) 1318 RON
14 1 1 PAD (N522093) 6688 RON
15 1 4 screw dw744 (330019-12) 558 RON
16 1 1 BAG (N526493) 3268 RON
17 1 1 SCREW (330019-28) 588 RON
18 1 1 SHROUD (N512496) 3268 RON
19 1 2 SCREW (N073391) 4827 RON
20 1 1 INSERT (N495380) 588 RON
21 1 1 SCREW (N495386) 588 RON
22 1 1 BELT (NA076570) 668 RON
800 1 1 RATING LABEL (NA590850) 588 RON
