Top » Piese de schimb » Piese Stanley » SFMCW223B Type 1

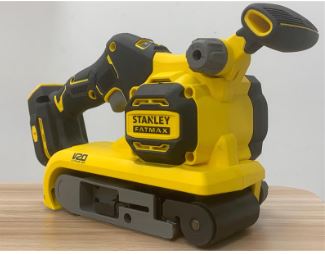

SLEFUITOR CU BANDA STANLEY SFMCW223B Type 1
[SFMCW223B Type 1]
SLEFUITOR CU BANDA STANLEY SFMCW223B Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR CU BANDA STANLEY SFMCW223B Type 1
Click pentru a mari
SLEFUITOR CU BANDA STANLEY SFMCW223B Type 1
Click pentru a mari

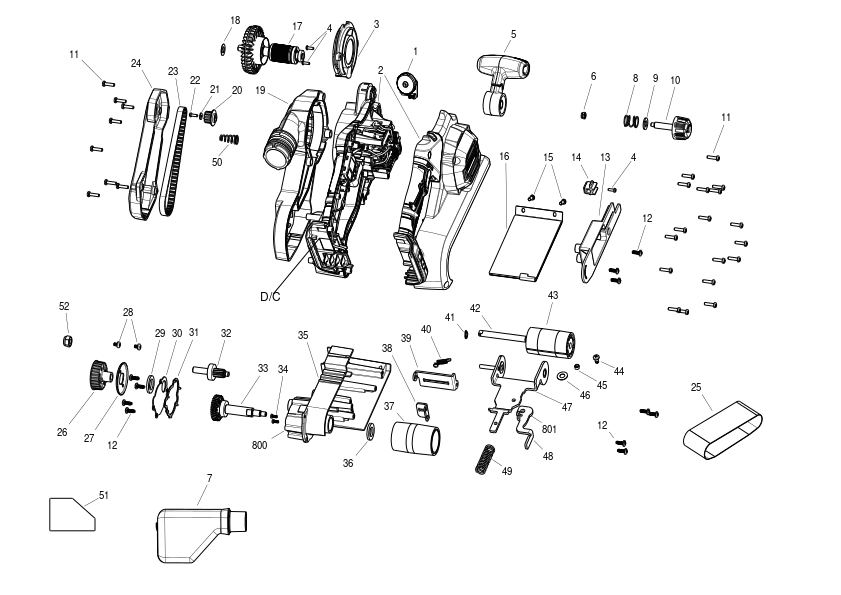

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DIAL PLATE (NA253862) 5370 RON
2 1 1 MOTOR SWITCH SA (NA410783) 85494 RON
3 1 1 BAFFLE (NA127415) 1318 RON
4 1 3 SCREW PLASTIC (330019-41) 588 RON
5 1 1 HANDLE SA (NA208810) 6688 RON
6 1 1 NUT (N461154) 588 RON
7 1 1 DUST BAG SA (NA393940) 4355 RON
8 1 1 SPRING (NA145454) 588 RON
9 1 2 WASHER (N467556) 588 RON
10 1 1 KNOB (NA147958) 2556 RON
11 1 26 Screw M3.5X16 T15 (330019-03) 558 RON
12 1 11 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
13 1 1 BASEPLATE (NA122565) 1630 RON
14 1 1 CATCHPLATE (NA263145) 2556 RON
15 1 2 SCREW (N510972) 588 RON
16 1 1 COVERPLATE (NA409842) 4827 RON
17 1 1 ROTOR SA (NA409836) 27287 RON
18 1 1 WASHER (N213812) 558 RON
19 1 1 COVER LH (NA122549) 5370 RON
20 1 1 PINION GEAR (NA122577) 114 RON
21 1 1 WASHER (NA160811) 588 RON
22 1 1 HANDLE LH (NA160810) 588 RON
23 1 1 BELT (NA122578) 4355 RON
24 1 1 BELT COVER (NA208968) 1933 RON
25 1 1 SANDING SHEET (NA127447) 1318 RON
26 1 1 Gear (NA122576) 3954 RON
27 1 1 PLATE (NA214071) 82 RON
28 1 2 SCREW.TEMP (330045-04) 558 RON
29 1 1 FELT SEAL (NA091406) 668 RON
30 1 1 COVERPLATE (NA177392) 668 RON
31 1 1 RUBBER SEAL (NA190641) 82 RON
32 1 1 GEARSHAFT SA (NA409843) 9012 RON
33 1 1 GEAR SA (NA409844) 12361 RON
34 1 2 Screw Taptite (330045-43) 558 RON
35 1 1 GEARCASE SA (NA409845) 23244 RON
36 1 1 FELT SEAL (NA150125) 588 RON
37 1 1 DRIVE ROLLER (NA122562) 9012 RON
38 1 1 PLATE (NA157705) 114 RON
39 1 1 SUPPORT PLATE (NA154312) 1318 RON
40 1 1 SPRING (NA006363) 588 RON
41 1 1 RETAINER (N034090) 558 RON
42 1 1 SHAFT (NA122575) 1772 RON
43 1 1 FRONT ROLLER KIT (NA409846) 6688 RON
44 1 1 SCREW (N506853) 588 RON
45 1 1 SLEEVE (NA006022) 82 RON
46 1 1 WASHER (NA079157) 588 RON
47 1 1 CARRIER (NA122571) 5370 RON
48 1 1 LEVER (NA122572) 1630 RON
49 1 1 SPRING (NA122573) 588 RON
50 1 1 SPRING GUIDE (NA127441) 588 RON
51 1 1 RATING LABEL (NA264332) 668 RON
52 1 1 NUT (N549053) 588 RON
800 1 1 GREASE (NA360289) 10241 RON
