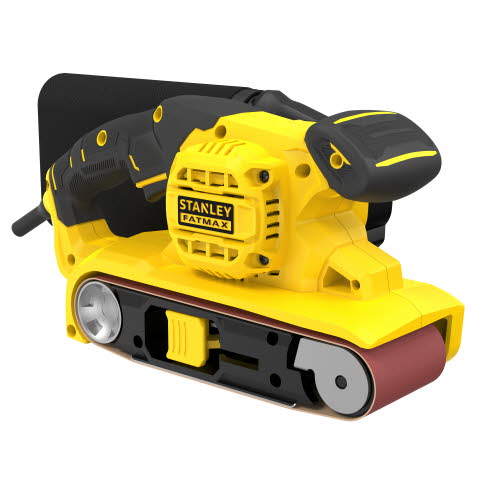

SLEFUITOR CU BANDA STANLEY KFFMEW200 Type 1
[KFFMEW200 Type 1]
SLEFUITOR CU BANDA STANLEY KFFMEW200 Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR CU BANDA STANLEY KFFMEW200 Type 1
Click pentru a mari
SLEFUITOR CU BANDA STANLEY KFFMEW200 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CORDSET (1004768-41) 6688 RON
2 1 1 CORD PROTECTOR (1004768-42) 668 RON
3 1 1 CLAMP (5140230-64) 588 RON
4 1 12 SCREW (5140101-52) 588 RON
5 1 1 SWITCH (5140230-65) 6688 RON
6 1 1 SCREW (1004768-43) 588 RON
7 1 2 SCREW (5140230-71) 588 RON
8 1 1 PCB (1004768-44) 6688 RON
12 1 3 SCREW (5140231-11) 588 RON
13 1 1 CLAMP (1004768-46) 3954 RON
14 1 1 BASE PLATE (1004768-47) 1933 RON
23 1 1 SPRING (5140230-79) 588 RON
24 1 1 SPRING (5140230-80) 588 RON
25 1 1 WASHER (5140230-81) 588 RON
26 1 1 WASHER (5140230-82) 588 RON
27 1 1 WASHER (5140230-91) 588 RON
28 1 1 KNOB (5140230-84) 114 RON
29 1 1 RATING PLATE (1004768-50) 82 RON
30 1 1 COVER (1004768-51) 82 RON
31 1 1 NUT (1004768-52) 944 RON
32 1 1 ROLLER (1004768-53) 3954 RON
33 1 1 WASHER (1004768-54) 588 RON
34 1 1 WASHER (5140230-88) 588 RON
35 1 1 RING (5140230-89) 588 RON
36 1 1 WASHER (1004768-60) 588 RON
37 1 1 SLEEVE (1004768-55) 588 RON
38 1 2 BEARING NEEDLE (1004768-56) 82 RON
39 1 1 BEARING (1004768-57) 1630 RON
44 1 1 FIELD SA (1004768-61) 20216 RON
45 1 2 SCREW (1004768-62) 588 RON
46 1 1 BAFFLE FAN (1004768-63) 944 RON
47 1 1 WASHER (5140230-97) 588 RON
48 1 1 BRUSH PAIR (1004768-64) 1772 RON
51 1 1 BEARING (1004768-69) 1630 RON
53 1 1 COVER (5140231-03) 668 RON
54 1 1 BEARING 608 (5140231-04) 1933 RON
56 1 1 PINION GEAR (5140231-06) 2796 RON
57 1 1 BEARING (5140231-07) 1772 RON
58 1 1 WASHER (5140231-08) 588 RON
59 1 1 Gear (5140231-09) 1772 RON
60 1 2 SCREW (5140231-10) 588 RON
61 1 1 PULLEY (5140231-12) 1318 RON
62 1 3 SCREW (5140231-13) 588 RON
63 1 1 COVER (1004768-70) 3954 RON
64 1 1 BELT (5140231-15) 1772 RON
66 1 1 BAG DUST (1004768-72) 3954 RON
101 1 1 CLAMSHELL SA (1004768-45) 23244 RON
102 1 1 FORK (1004768-48) 9012 RON
103 1 1 SUPPORT (1004768-59) 9012 RON
104 1 1 SHAFT SA (5140230-92) 4355 RON
105 1 1 BRUSH HOLDER SA (1004768-65) 668 RON
106 1 1 ARMATURE SA (1004768-68) 21676 RON
800 1 1 KITBOX (1004769-08) 30769 RON
801 1 1 HANDLE SA LH (1004769-06) 11337 RON
802 1 1 SUPPORT SA (1004769-07) 18568 RON
