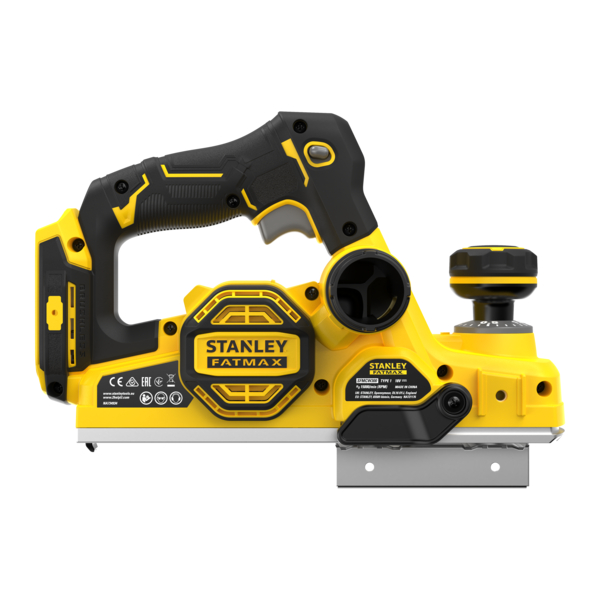

RINDEA STANLEY SFMCW300B Type 1
[SFMCW300B Type 1]
RINDEA STANLEY SFMCW300B Type 1
Click pentru a mari
Imagini suplimentare
RINDEA STANLEY SFMCW300B Type 1
Click pentru a mari
RINDEA STANLEY SFMCW300B Type 1
Click pentru a mari

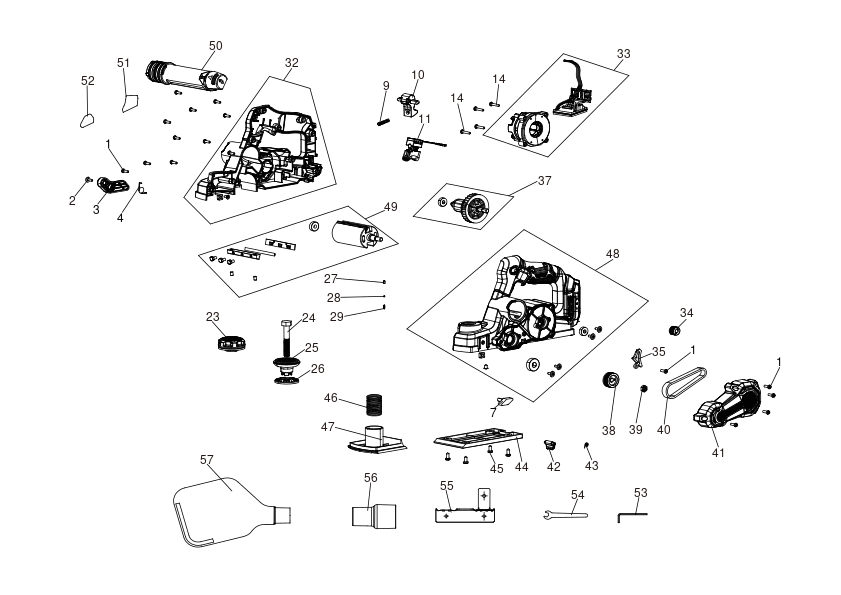

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 16 SCREW-ST4 X 14 (NA728582) 588 RON
2 1 1 SCREW-ST4 X 10 (NA728600) 588 RON
3 1 1 BLADE GUARD (NA702871) 668 RON
4 1 1 SPRING (NA731772) 588 RON
7 1 1 SCREW-M6 X 17 (NA728597) 588 RON
9 1 1 SPRING (N446842) 588 RON
10 1 1 BUTTON LOCK-OFF (NA728473) 944 RON
11 1 1 TRIGGER (NA714854) 10241 RON
14 1 4 SCREW-ST4 X 22 (NA728584) 588 RON
23 1 1 KNOB (NA731789) 2796 RON
24 1 1 BOLT-M10X1.25-2P (NA713895) 1318 RON
25 1 1 HANDLE (NA713848) 5370 RON
26 1 1 INDICATOR (NA730659) 1318 RON
27 1 1 COLUMN (NA728588) 588 RON
28 1 1 BALL STEEL (NA728589) 588 RON
29 1 1 SPRING (NA728480) 588 RON
32 1 1 HOUSING (NA734396) 13697 RON
33 1 1 STATOR SA-SA MODULE AND STATOR (NA788181) 33797 RON
34 1 1 PULLEY (NA675028) 2182 RON
35 1 1 COVER (NA713845) 944 RON
37 1 1 ROTOR SA (NA774941) 21676 RON
38 1 1 PULLEY (NA675029) 2796 RON
39 1 1 NUT (NA728581) 82 RON
40 1 1 BELT (NA713882) 82 RON
41 1 1 BELT COVER (NA714998) 5370 RON
42 1 1 STAND (NA598207) 588 RON
43 1 1 SPRING (NA728479) 588 RON
44 1 1 PLATE (NA598196) 4355 RON
45 1 4 SCREW-ST5 X 12 (NA728583) 588 RON
46 1 1 SPRING COMPRESSION (NA728478) 1318 RON
47 1 1 SHOE (NA598195) 5370 RON
48 1 1 HOUSING SA (NA788182) 13697 RON
49 1 1 DRUM SA (NA788179) 32327 RON
50 1 1 TUBE EXHAUST (NA598205) 4355 RON
51 1 1 WARNING LABEL (NA735934) 588 RON
52 1 1 WARNING LABEL (NA721176) 588 RON
53 1 1 WRENCH (NA728592) 588 RON
54 1 1 WRENCH (NA728595) 1772 RON
55 1 1 GUIDE (NA731722) 3954 RON
56 1 1 ADAPTOR (NA736492) 944 RON
57 1 1 DUST BAG SA (NA731785) 5370 RON
