Top » Piese de schimb » Piese Stanley » STSC1840 Type 1

POLIZOR UNGHIULAR STANLEY STSC1840 Type 1
[STSC1840 Type 1]
POLIZOR UNGHIULAR STANLEY STSC1840 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR STANLEY STSC1840 Type 1
Click pentru a mari

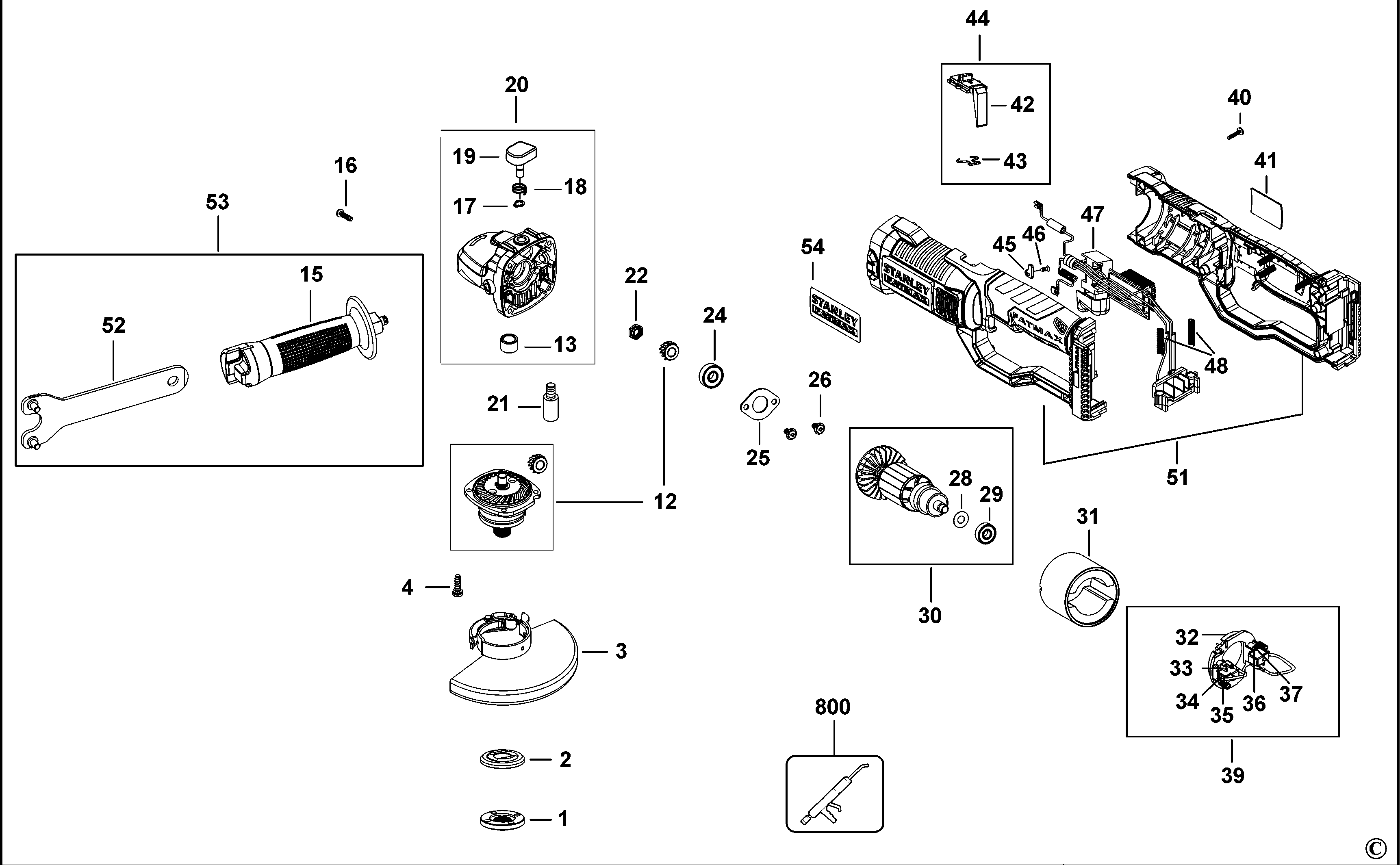

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (569198-00) 105 RON
2 1 1 INNER FLANGE (569200-00) 105 RON
3 1 1 GUARD (6010378-00) 4827 RON
4 1 4 SCREW (5170010-73) 588 RON
12 1 1 SPINDLE SA (6010379-00) 10241 RON
13 1 1 BEARING SINTER (1004525-16) 893 RON
15 1 1 SIDE HANDLE (5170010-79) 3954 RON
16 1 4 SCREW (569209-00) 558 RON
17 1 1 CIRCLIP (1004525-20) 558 RON
18 1 1 SPRING (5140040-64) 588 RON
19 1 1 BUTTON (5170010-80) 588 RON
20 1 1 GEARCASE SA (5170010-81) 9012 RON
21 1 1 SCREW (1004523-23) 893 RON
22 1 1 NUT (569175-00) 558 RON
24 1 1 BEARING (569167-00) 1788 RON
25 1 1 COVERPLATE (569168-00) 558 RON
26 1 2 SCREW (569170-00) 558 RON
28 1 1 RING (5170010-84) 588 RON
29 1 1 BEARING (1004525-27) 2124 RON
30 1 1 ARMATURE SA (5170010-85) 21676 RON
31 1 1 FIELD (5170010-86) 10241 RON
32 1 1 RING (5170010-87) 1318 RON
33 1 2 BRUSH HOLDER (5170010-88) 944 RON
34 1 1 BRUSH PAIR (5170010-89) 3268 RON
35 1 2 SPRING TORSION (5170010-90) 588 RON
36 1 4 WASHER (569189-00) 558 RON
37 1 4 SCREW (569188-00) 558 RON
39 1 1 RING SA (5170010-92) 6688 RON
40 1 10 SCREW (5170010-93) 588 RON
42 1 1 LEVER LOCK-OFF (5170010-96) 668 RON
43 1 1 DETENT (5170010-97) 588 RON
44 1 1 LEVER SA (5170010-98) 944 RON
45 1 1 CLAMP (5170010-99) 588 RON
46 1 1 SCREW (5170011-00) 588 RON
47 1 1 SWITCH SA (5170011-01) 39318 RON
48 1 2 SPRING (5170011-02) 588 RON
51 1 1 CLAMSHELL SA (5170011-03) 18568 RON
52 1 1 SPANNER (1004683-12) 2124 RON
53 1 1 SIDE HANDLE (6010384-00) 5370 RON
54 1 1 IDENTITY LABEL (5170011-06) 588 RON
800 1 1 000000-99 - Indisponibil
