Top » Piese de schimb » Piese Stanley » SG6125 Type 1

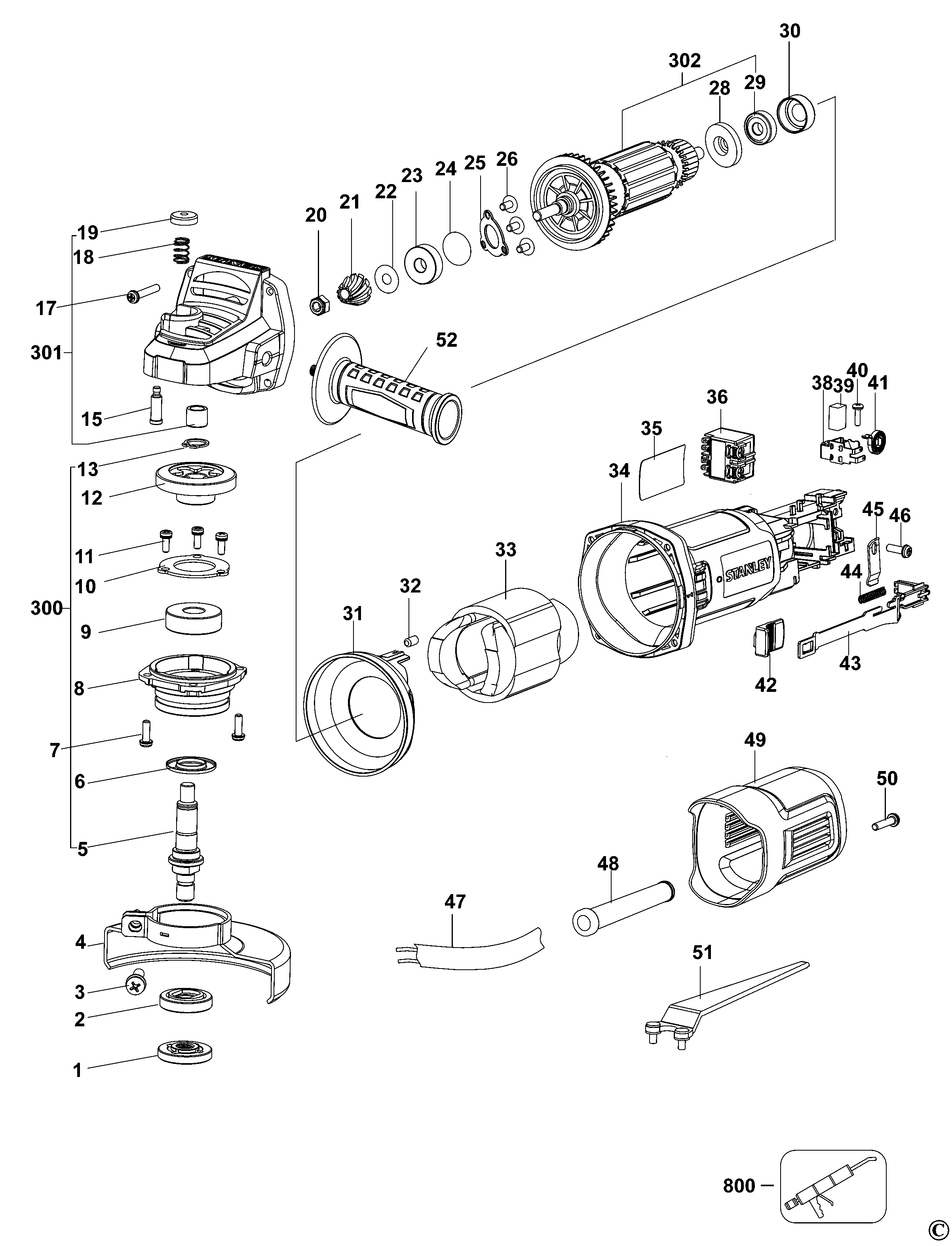

POLIZOR UNGHIULAR STANLEY SG6125 Type 1
[SG6125 Type 1]
POLIZOR UNGHIULAR STANLEY SG6125 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR STANLEY SG6125 Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (N862877) 2182 RON
2 1 1 INNER FLANGE (N803471) 1630 RON
3 1 1 SCREW (N866043) 588 RON
4 1 1 GUARD SA (N862037) 2182 RON
5 1 1 SPINDLE (N746578) 2556 RON
6 1 1 COVER (N494772) 588 RON
7 1 4 SCREW (49209042) 588 RON
8 1 1 GEARCASE COVER (N866050) 2182 RON
9 1 1 BEARING (49111017) 1772 RON
10 1 1 BEARING PLATE (N787677) 588 RON
11 1 3 49203006 - Indisponibil
11 1 8 SCREW (49203008) 588 RON
12 1 1 Gear (N802377) 4355 RON
13 1 1 CIRCLIP (N851381) 588 RON
15 1 1 LOCK PIN (N743788) 588 RON
17 1 4 SCREW (N802853) 588 RON
18 1 1 SPRING (4140308003) 588 RON
19 1 1 LOCK BUTTON (4140301012) 588 RON
20 1 1 NUT (N867028) 588 RON
21 1 1 PINION (N802378) 1933 RON
22 1 1 WASHER (4140304012) 588 RON
23 1 1 BEARING (N793193) 114 RON
24 1 1 O RING (N880529) 588 RON
26 1 3 SCREW (N826930) 588 RON
26 1 1 BEARING PLATE (N826429) 668 RON
26 1 1 SCREW-SCREW ASSEMBLY M4X6 (NA731421) 588 RON
28 1 1 WASHER INSULATING (4140901007) 588 RON
29 1 1 BEARING (N793199) 1772 RON
30 1 1 SLEEVE BEARING (N844524) 588 RON
31 1 1 BAFFLE (N691342) 588 RON
32 1 2 RUBBER (4240203008) 588 RON
33 1 1 FIELD SA (N683540) 741 RON
34 1 1 FIELD CASE (N713568) 3268 RON
36 1 1 SWITCH (N622597) 1772 RON
38 1 2 BRUSH HOLDER (N767128) 588 RON
39 1 1 BRUSH PAIR (N875914) 3268 RON
40 1 2 SCREW (49206001) 588 RON
41 1 1 BRUSH SPRING (4140308002) 588 RON
42 1 1 BUTTON (4141401003) 588 RON
43 1 1 LINK (N757193) 588 RON
44 1 1 SPRING (4140308001) 588 RON
45 1 1 CORD CLAMP (4140301013) 588 RON
46 1 1 SCREW (49206016) 588 RON
48 1 1 CORD PROTECTOR (N802854) 588 RON
49 1 1 END CAP (N854001) 1318 RON
50 1 1 SCREW (49206018) 588 RON
51 1 1 WRENCH SET (4140304608) 1318 RON
52 1 1 SIDE HANDLE (N865425) 1772 RON
300 1 1 N875888 - Indisponibil
300 1 1 SPINDLE SA (NA639424) 10241 RON
301 1 1 GEARCASE SA (N875885) 5370 RON
302 1 1 ARMATURE (N875654) 12361 RON
800 1 1 N544392 - Indisponibil
800 1 1 GREASE (429954-01) 62298 RON
