Top » Piese de schimb » Piese Stanley » SFMCG700B Type 2

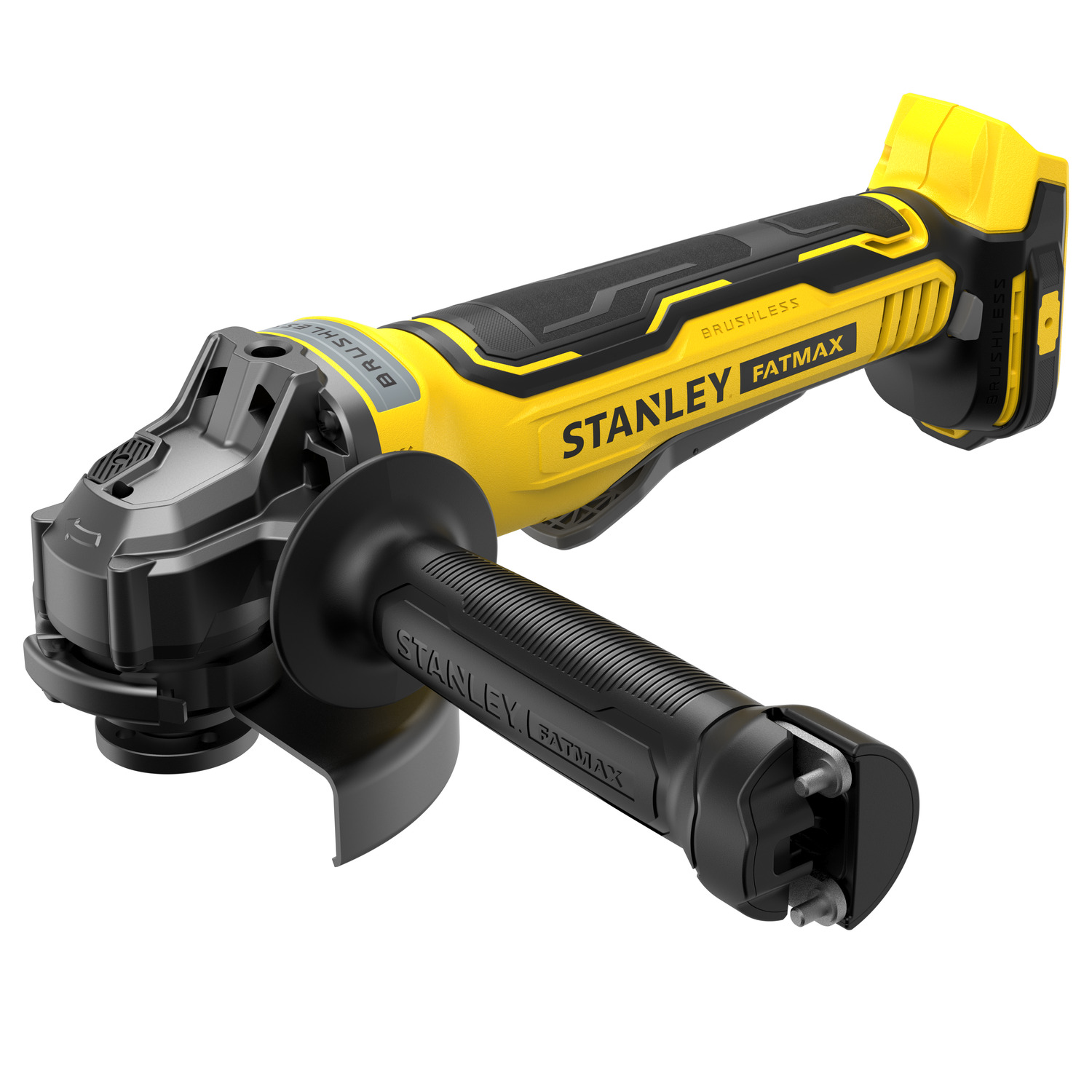

POLIZOR UNGHIULAR STANLEY SFMCG700B Type 2
[SFMCG700B Type 2]
POLIZOR UNGHIULAR STANLEY SFMCG700B Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR STANLEY SFMCG700B Type 2
Click pentru a mari
POLIZOR UNGHIULAR STANLEY SFMCG700B Type 2
Click pentru a mari

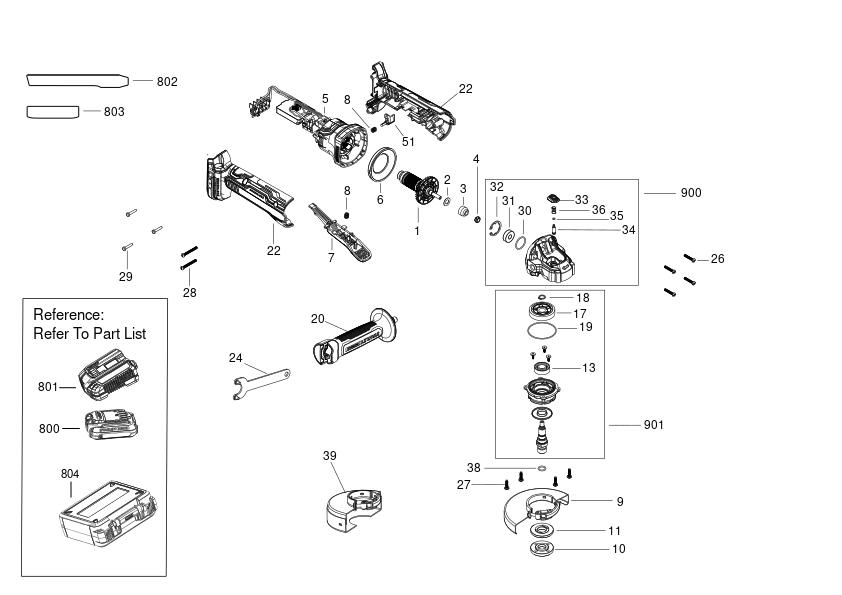

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (N772449) 35435 RON
1 1 1 NB218914 - Indisponibil
2 1 1 WASHER (N213812) 558 RON
3 1 1 PINION (N758480) 2556 RON
4 1 1 NUT (604484-00) 558 RON
5 1 1 FIELD SA (NA649784) 60451 RON
6 1 1 BAFFLE (N651644) 668 RON
7 1 1 TRIGGER (N773279) 3268 RON
8 1 2 SPRING (562210-00) 558 RON
9 1 1 GUARD SA (NA356665) 5370 RON
10 1 1 OUTER FLANGE (N722145) 2556 RON
11 1 1 INNER FLANGE (N754861) 2556 RON
13 1 1 BEARING,BALL (90605281) 1772 RON
17 1 1 Gear (N758481) 4355 RON
18 1 1 RETAINING RING (444793-00) 558 RON
19 1 1 O RING 1.5X40 (N307625) 588 RON
20 1 1 HANDLE SA (N690825) 5370 RON
22 1 1 HANDLE SA (NA278946) 9012 RON
24 1 1 WRENCH SPECIAL (N765655) 944 RON
26 1 4 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
27 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
28 1 2 SCREW M4X34 T15 (330065-33) 588 RON
29 1 3 SCREW (90611830) 588 RON
30 1 1 O RING (N119639) 558 RON
31 1 1 BEARING (N214432) 105 RON
32 1 1 RET RING w FINGERS (N453031) 588 RON
33 1 1 LOCK BUTTON (N629411) 588 RON
34 1 1 LOCK PIN (N651795) 82 RON
35 1 1 THOR SPINDLE LOCK O-RING (N263699) 588 RON
36 1 1 SPRING (N522581) 588 RON
38 1 1 O RING (N420261) 588 RON
39 1 1 GUARD SA (NA364449) 741 RON
51 1 1 BUTTON LOCK-ON (N640242) 588 RON
802 1 1 RATING LABEL (NA291075) 588 RON
803 1 1 LABEL (N688355) 588 RON
900 1 1 GEARCASE SA (N772448) 23244 RON
901 1 1 SPINDLE SA (N772453) 12361 RON
