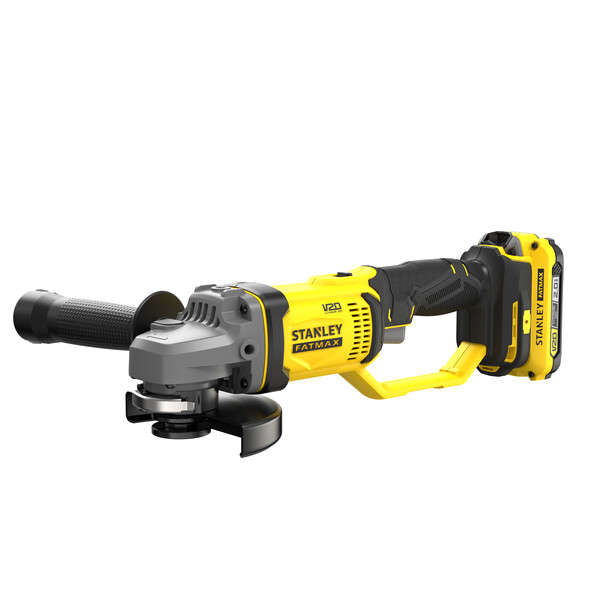

POLIZOR UNGHIULAR STANLEY SFMCG400M2K Type 2
[SFMCG400M2K Type 2]
POLIZOR UNGHIULAR STANLEY SFMCG400M2K Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR STANLEY SFMCG400M2K Type 2
Click pentru a mari
POLIZOR UNGHIULAR STANLEY SFMCG400M2K Type 2
Click pentru a mari

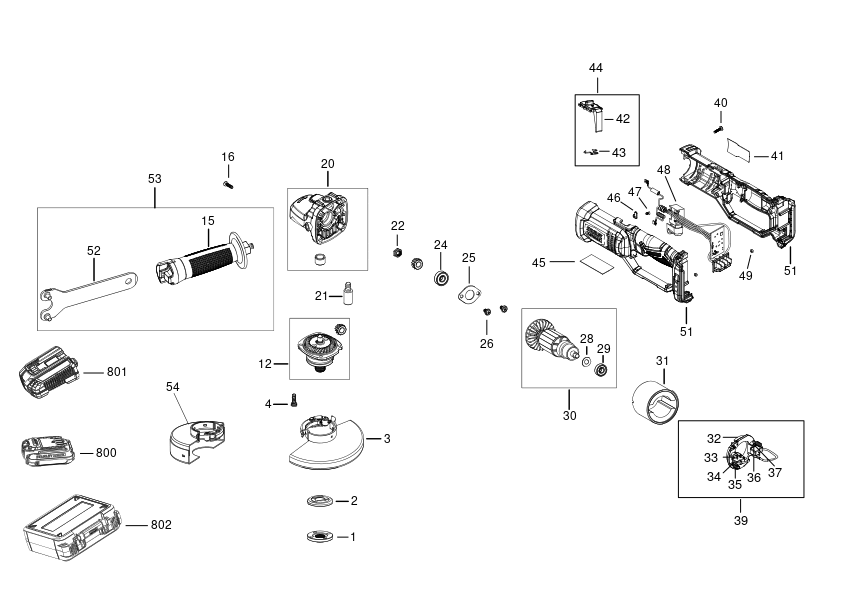

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (569198-00) 105 RON
2 1 1 INNER FLANGE (569200-00) 105 RON
3 1 1 GUARD (5170087-96) 6688 RON
4 1 4 SCREW (5170010-73) 588 RON
12 1 1 SPINDLE SA (6010379-00) 10241 RON
15 1 1 SIDE HANDLE (1004773-36) 2796 RON
16 1 4 SCREW (569209-00) 558 RON
20 1 1 GEARCASE SA (1004773-37) 11337 RON
21 1 1 SCREW (1004523-23) 893 RON
22 1 1 NUT (569175-00) 558 RON
24 1 1 BEARING (569167-00) 1788 RON
25 1 1 COVERPLATE (569168-00) 558 RON
26 1 2 SCREW (569170-00) 558 RON
28 1 1 RING (5170010-84) 588 RON
29 1 1 BEARING (1004525-27) 2124 RON
30 1 1 ARMATURE SA (5170010-85) 21676 RON
31 1 1 FIELD (5170010-86) 10241 RON
32 1 1 RING (5170010-87) 1318 RON
33 1 2 BRUSH HOLDER (5170010-88) 944 RON
34 1 1 BRUSH PAIR (5170010-89) 3268 RON
35 1 2 SPRING TORSION (5170010-90) 588 RON
36 1 4 WASHER (569189-00) 558 RON
37 1 4 SCREW (569188-00) 558 RON
39 1 1 RING SA (5170010-92) 6688 RON
40 1 11 SCREW (5170010-93) 588 RON
41 1 1 RATING PLATE (NA270275) 588 RON
42 1 1 LEVER LOCK-OFF (5170010-96) 668 RON
43 1 1 DETENT (1004773-38) 588 RON
44 1 1 LEVER LOCK-OFF (1004773-39) 944 RON
45 1 1 BRAND LABEL (N717776) 588 RON
46 1 1 CLAMP (5170010-99) 588 RON
47 1 1 SCREW (5170011-00) 588 RON
48 1 1 SWITCH SA (1004773-40) 32327 RON
49 1 2 NUT (1004773-41) 588 RON
51 1 1 CLAMSHELL SA (1004773-42) 23244 RON
52 1 1 SPANNER (1004683-12) 2124 RON
53 1 1 HANDLE SIDE SA (1004773-43) 4355 RON
54 1 1 GUARD CUT OFF (1004777-23) 10241 RON
800 1 1 BATTERY (NA154282) 57833 RON
800 1 1 BATTERY (NA158849) 10889 RON
801 1 1 CHARGER (NA378134) 25728 RON
802 1 1 KITBOX (1004773-51) 30769 RON
