Top » Piese de schimb » Piese Stanley » N88RH-2MCN Type REV 0

PISTOL DA BATUT CUIE STANLEY N88RH-2MCN Type REV 0
[N88RH-2MCN Type REV 0]
PISTOL DA BATUT CUIE STANLEY N88RH-2MCN Type REV 0
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE STANLEY N88RH-2MCN Type REV 0
Click pentru a mari
PISTOL DA BATUT CUIE STANLEY N88RH-2MCN Type REV 0
Click pentru a mari

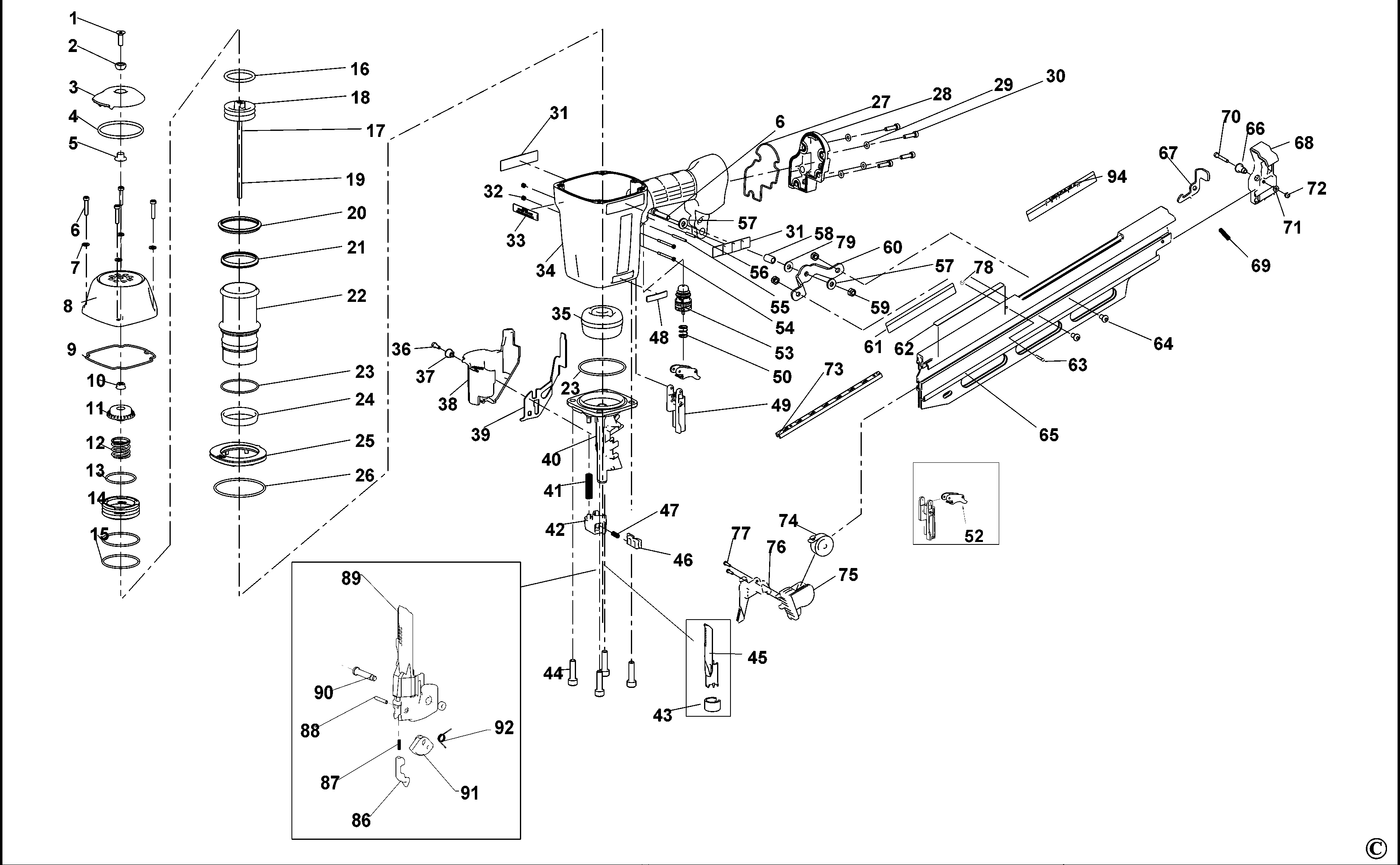

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW, SFHCS M8 X 1.25X25 (MSF8125-25) 82 RON
2 1 1 108555 - Indisponibil
3 1 1 112633 - Indisponibil
4 1 1 116961 - Indisponibil
5 1 1 108418 - Indisponibil
6 1 1 SCREW SHCS M6X1.00X30 (MSC6100-30) 558 RON
7 1 1 WASHER PWN M6 (MPW6.3) 558 RON
8 1 1 108559 - Indisponibil
9 1 1 108416 - Indisponibil
10 1 1 NUT HFN M8X1.25 (103859) 781 RON
11 1 1 107236 - Indisponibil
12 1 1 107235 - Indisponibil
13 1 1 112635 - Indisponibil
14 1 1 107234 - Indisponibil
15 1 1 107658 - Indisponibil
16 1 1 O-RING (851606) 82 RON
16 1 1 O-RING 1.850X.210 (851606-S) 781 RON
17 1 1 158582 - Indisponibil
18 1 1 158547 - Indisponibil
19 1 1 158548 - Indisponibil
20 1 1 107142 - Indisponibil
21 1 1 107141 - Indisponibil
22 1 1 144625 - Indisponibil
23 1 1 O-RING 2.550X.103 (89673) 190 RON
24 1 1 SEAL CHECK (175520) 105 RON
25 1 1 000000-00 - Indisponibil
26 1 1 O-RING 3.484X.139 (108718) 893 RON
27 1 1 108560 - Indisponibil
28 1 1 108722 - Indisponibil
29 1 1 WASHER PWW M5 (T50118) 558 RON
30 1 1 SCREW SOC HD. CAP M5 X 20 (MSC5080-20) 558 RON
31 1 1 112733 - Indisponibil
32 1 1 NUT ESN M3X0.5 (MHE3050-100) 558 RON
33 1 1 000000-00 - Indisponibil
34 1 1 000000-00 - Indisponibil
35 1 1 BUMPER DRIVE (107231) 7940 RON
36 1 1 SCREW SHCS M4X0.70X12 (MSC4070-12) 558 RON
37 1 1 112632 - Indisponibil
38 1 1 116969 - Indisponibil
39 1 1 116966 - Indisponibil
40 1 1 115261 - Indisponibil
41 1 1 SPRING CONTACT ARM (116970) 558 RON
42 1 1 CASTING HOUSING CONTACT (108224) 4472 RON
43 1 1 SEGMENT (121072) 1229 RON
44 1 1 SCREW, SHCS M8X28MM METRI (MSC8125-28) 82 RON
45 1 1 ARM LOWER CONTACT (142941) 5591 RON
46 1 1 CASTING PLUNGER (188703) 4355 RON
47 1 1 SPRING HOUSING (115230) 558 RON
48 1 1 000000-00 - Indisponibil
49 1 1 000000-00 - Indisponibil
50 1 1 SPRING COMPRESSION (100387) 558 RON
51 1 1 KIT, SEQUENTIAL TRIP CONVERSION (SEQ4) 4827 RON
53 1 1 TRIGGER VALVE KIT (TVA11) 24962 RON
54 1 1 SCREW TRIGGER PIVOT (108562) 558 RON
55 1 1 PIN SPRING M3X30MM (100298) 558 RON
56 1 1 PIN SPIROL M3X20MM (MPP030020) 558 RON
57 1 1 WASHER.SPECIAL (MPW6.2) 558 RON
58 1 1 BUSHING FLANGED ISOLATION (123859) 781 RON
59 1 1 NUT ESN M6X1 (MHE6100-100) 558 RON
60 1 1 123856 - Indisponibil
61 1 1 LABEL WARNING (158612) 558 RON
62 1 1 159722 - Indisponibil
63 1 1 PIN SPECIAL (121407) 781 RON
64 1 1 SCREW SBHCS M6X1.00X12 (KN85) (MSB6100-12) 558 RON
65 1 1 000000-00 - Indisponibil
66 1 1 SPACER PUSHER LATCH (121472) 1229 RON
67 1 1 120875 - Indisponibil
68 1 1 CAP END MAGAZINE (116563) 114 RON
69 1 1 SPRING PUSHER LATCH (120878) 558 RON
70 1 1 SCREW SHCS M4X0.7X30 (100261) 781 RON
71 1 1 WASHER PWN M4 (MPW4) 558 RON
72 1 1 NUT ESN M4 X 0.7 (MHE4070-100) 558 RON
73 1 1 LINER, NAIL GUIDE (121406) 1772 RON
74 1 1 SPRING CONSTANT FORCE (115143) 4472 RON
75 1 1 HANDLE, PUSHER (120945) 82 RON
76 1 1 000000-00 - Indisponibil
77 1 1 SCREW,STRHS,M3X0.5X12 (100209) 82 RON
78 1 1 89013 - Indisponibil
79 1 1 BUSHING FLANGED ISOLATION (123859) 781 RON
80 1 1 SHIELD DUST (112630) 190 RON
81 1 1 SPRING CLIP (112631) 781 RON
82 1 1 LABEL WARNING (104981) 558 RON
83 1 1 FOOT TRIP (121070) 781 RON
84 1 1 CLIP TRIP FOOT (121071) 781 RON
85 1 1 KIT METAL CONNECTOR ATTACH. (MCN-KIT3) 3124 RON
86 1 1 121043 - Indisponibil
87 1 1 124458 - Indisponibil
88 1 1 159641 - Indisponibil
89 1 1 159998 - Indisponibil
90 1 1 160016 - Indisponibil
91 1 1 158456 - Indisponibil
92 1 1 158457 - Indisponibil
93 1 1 WASHER (854004) 781 RON
94 1 1 LABEL WARNING METAL CONNECTOR (171335) 558 RON
