Top » Piese de schimb » Piese Stanley » FMC792 Type 1

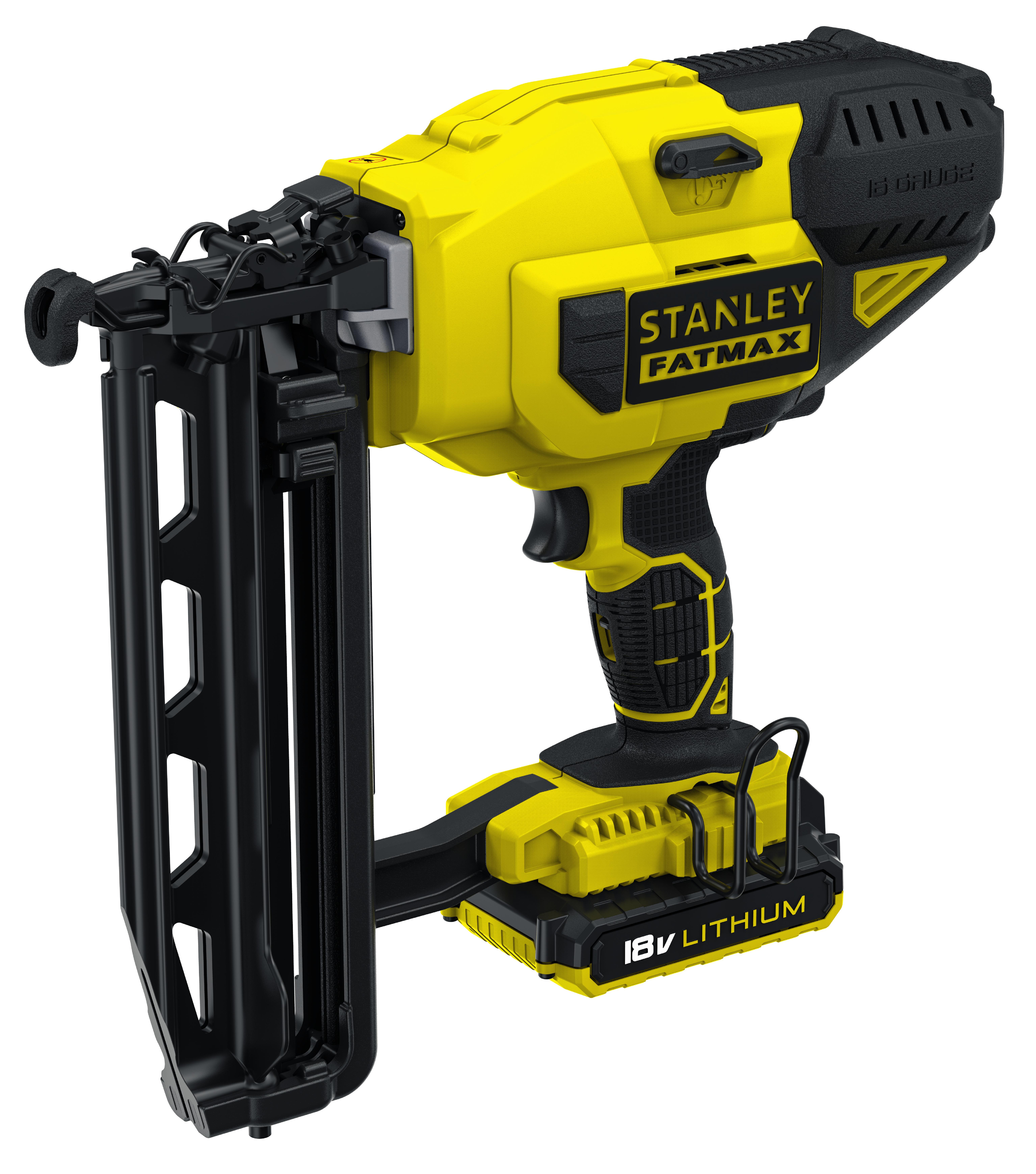

PISTOL DA BATUT CUIE STANLEY FMC792 Type 1
[FMC792 Type 1]
PISTOL DA BATUT CUIE STANLEY FMC792 Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE STANLEY FMC792 Type 1
Click pentru a mari
PISTOL DA BATUT CUIE STANLEY FMC792 Type 1
Click pentru a mari

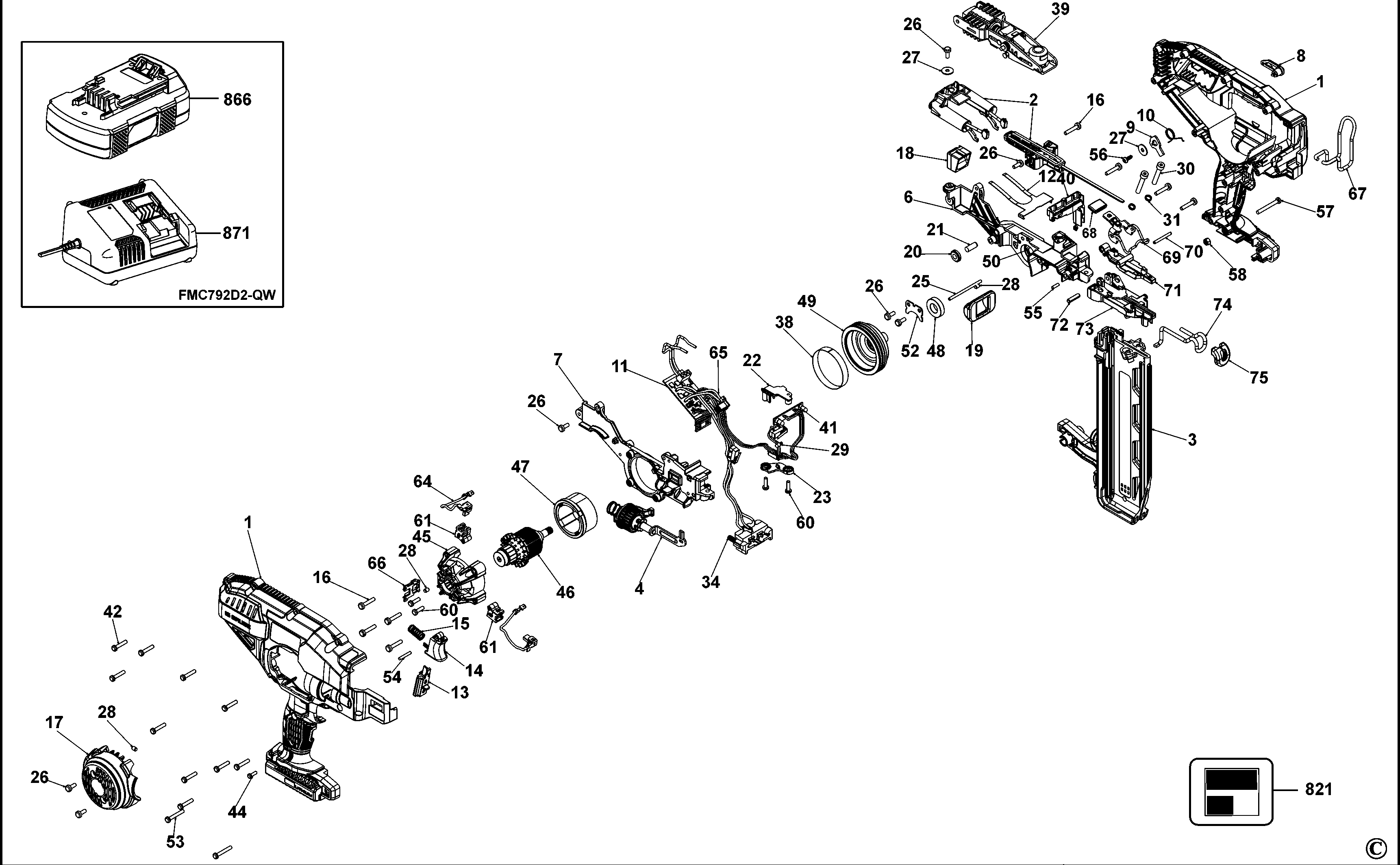

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 90626024-01 - Indisponibil
2 1 1 DRIVER SA (90641718) 36994 RON
3 1 1 90617387-01 - Indisponibil
4 1 1 90641721 - Indisponibil
6 1 1 FRAME SA (90616825) 16689 RON
7 1 1 COVER (90616826) 13697 RON
8 1 1 90623653-01 - Indisponibil
9 1 1 PIVOT (90629863) 588 RON
10 1 1 SPRING (90624129) 588 RON
11 1 1 90626617 - Indisponibil
12 1 1 LEAF SPRING (90617917) 82 RON
13 1 1 TRIGGER (90620174-01) 944 RON
14 1 1 TRIGGER (90615767-01) 588 RON
15 1 1 SPRING (90551259) 558 RON
16 1 8 SCREW (330045-07) 558 RON
17 1 1 COVER HOUSING (90624433) 1318 RON
18 1 1 90641723 - Indisponibil
19 1 1 BUMPER (90641347) 2796 RON
19 1 1 BUMPER (638469-00) 4137 RON
20 1 1 SKID (90633321) 588 RON
21 1 1 PIN (N082403) 588 RON
22 1 1 90616223 - Indisponibil
23 1 1 90616224 - Indisponibil
25 1 1 ROLLER SPINDLE (330041-61) 781 RON
26 1 7 SCREW.TEMP (330045-05) 558 RON
27 1 2 WASHER (90621828) 588 RON
28 1 3 PLUG (90621610) 588 RON
29 1 1 INDEXING BOLT (N403227) 588 RON
30 1 2 395441-00 - Indisponibil
31 1 2 WASHER LOCK (488808-00) 588 RON
34 1 2 SPRING (90516498) 558 RON
38 1 1 90635366 - Indisponibil
38 1 1 90618959 - Indisponibil
38 1 1 DAMPER (N927131) 588 RON
39 1 1 90641722 - Indisponibil
39 1 1 CARRIAGE SA (N663269) 38463 RON
40 1 1 SUPPORT (90624199) 588 RON
41 1 1 PCB (90626619) 5370 RON
42 1 10 SCREW (90626630) 588 RON
44 1 1 SCREW PLASTIC (330019-41) 588 RON
45 1 1 BRIDGE (90624621) 4827 RON
46 1 1 ARMATURE SA (90624714) 27287 RON
47 1 1 MAGNET (90623216) 9012 RON
48 1 1 BEARING (90559833) 1318 RON
49 1 1 FLYWHEEL (90616323) 23244 RON
50 1 1 RING (90615722) 588 RON
52 1 1 PLATE (90622035) 588 RON
53 1 2 SCREW (90626633) 588 RON
54 1 1 PIN (098185-20) 558 RON
55 1 1 PIN (588470-00) 588 RON
56 1 1 SCREW (582193-00) 558 RON
57 1 1 SCREW (90626342) 588 RON
58 1 1 ad225 (90610773) 588 RON
60 1 4 SCREW (330019-38) 558 RON
61 1 2 BRUSHBOX (90624386) 668 RON
64 1 1 90626058 - Indisponibil
65 1 1 TUBE (90631918) 588 RON
66 1 1 HOLDER (90621006) 588 RON
67 1 1 HOOK (90626069) 1318 RON
68 1 1 GRIP (395093-00) 893 RON
69 1 1 90623575-01 - Indisponibil
70 1 1 SPIROL PIN (650156-00) 558 RON
71 1 1 90617332 - Indisponibil
72 1 1 ROLL PIN (330036-03) 558 RON
73 1 1 NOSE (90617339) 21676 RON
74 1 1 90617334 - Indisponibil
75 1 2 90617821-01 - Indisponibil
821 1 1 90626952 - Indisponibil
866 1 1 90605361 - Indisponibil
866 1 1 N496096 - Indisponibil
866 1 1 BATTERY 18V - 2.0AH - 36WH (NA012168) 38463 RON
871 1 1 CHARGER 18V-2.0A (90608625-01) 23244 RON
