Top » Piese de schimb » Piese Stanley » SFMCN618B Type 1

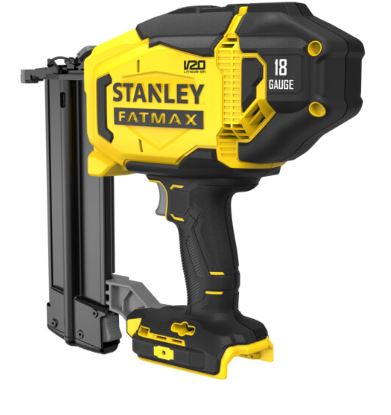

PISTOL DE BATUT CUIE CU ACUMULATOR STANLEY SFMCN618B Type 1
[SFMCN618B Type 1]
PISTOL DE BATUT CUIE CU ACUMULATOR STANLEY SFMCN618B Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DE BATUT CUIE CU ACUMULATOR STANLEY SFMCN618B Type 1
Click pentru a mari
PISTOL DE BATUT CUIE CU ACUMULATOR STANLEY SFMCN618B Type 1
Click pentru a mari
PISTOL DE BATUT CUIE CU ACUMULATOR STANLEY SFMCN618B Type 1
Click pentru a mari

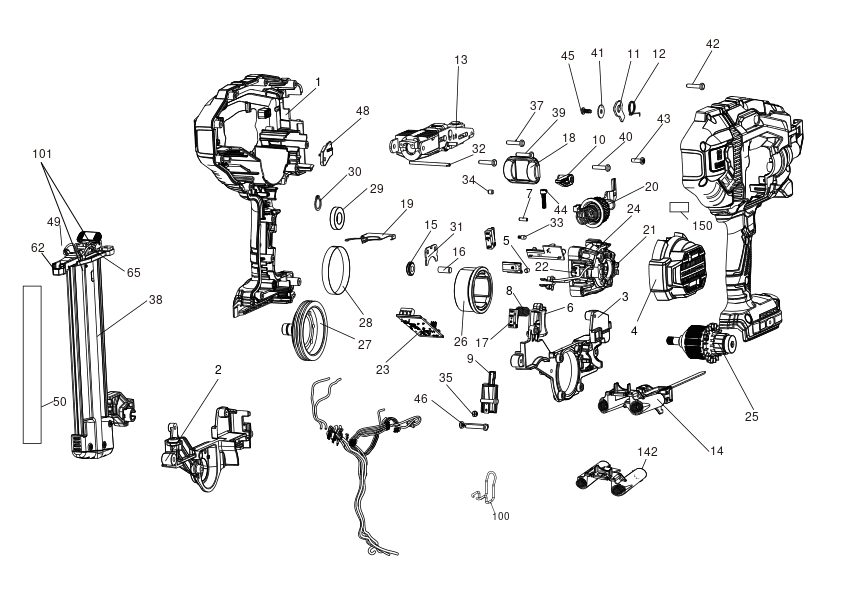

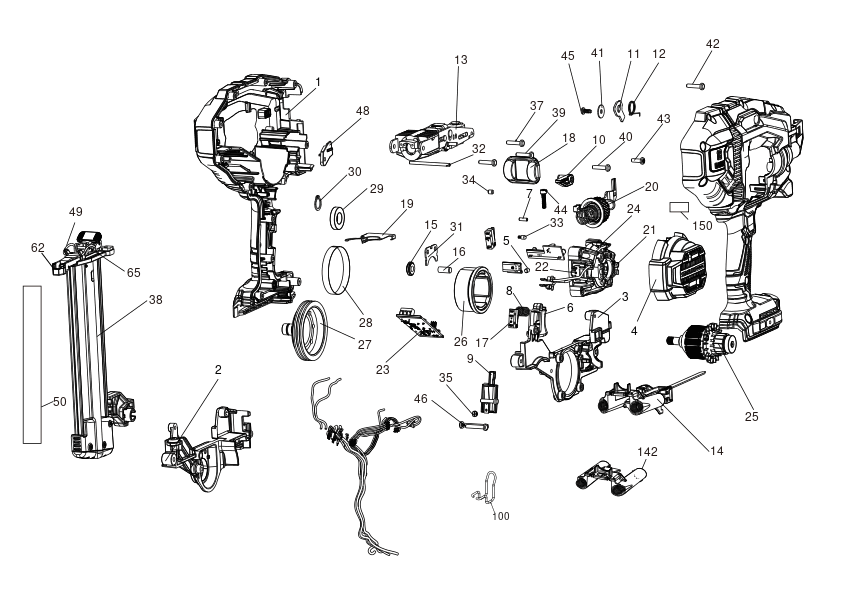

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N688182) 13697 RON
2 1 1 FRAME LH (90614654) 9012 RON
3 1 1 FRAME RH (N500107) 12361 RON
4 1 1 CAP (N688808) 1933 RON
5 1 2 PLUG (90621610) 588 RON
6 1 1 TRIGGER (N552193) 944 RON
7 1 1 PIN (098185-20) 558 RON
8 1 1 SPRING (90551259) 558 RON
9 1 1 SWITCH (N552233) 944 RON
10 1 1 LEVER (N552234) 588 RON
11 1 1 PIVOT (90629863) 588 RON
12 1 1 SPRING TORSION (90615568) 588 RON
13 1 1 COVER-TOP (NA000883) 21676 RON
14 1 1 DRIVER ASSEMBLY (90629536) 24962 RON
15 1 1 SKID (90633321) 588 RON
16 1 1 PIN (N082403) 588 RON
17 1 1 BUMPER (N784330) 1772 RON
18 1 1 BUMPER (90641347) 2796 RON
19 1 1 90615815 - Indisponibil
19 1 1 LEAF SPRING (NA608743) 944 RON
20 1 1 DEPTH ROD (NA392415) 5370 RON
21 1 2 BRUSHBOX (90624386) 668 RON
22 1 1 HOLDER (90621006) 588 RON
23 1 1 N748034 - Indisponibil
23 1 1 PCB SA (NA516895) 30769 RON
24 1 1 BRIDGE (90624621) 4827 RON
25 1 1 ARMATURE SA (N500628) 27287 RON
26 1 1 MAGNET (N503300) 12361 RON
27 1 1 FLYWHEEL (90614719) 23244 RON
28 1 1 N910450 - Indisponibil
28 1 1 DAMPER (N927131) 588 RON
29 1 1 BEARING (90559833) 1318 RON
30 1 1 RING (90615722) 588 RON
31 1 1 PLATE (90622035) 588 RON
32 1 1 ROLLER SPINDLE (330041-61) 781 RON
33 1 1 INDEXING BOLT (N403227) 588 RON
34 1 1 PIN (588470-00) 588 RON
35 1 1 ad225 (90610773) 588 RON
37 1 11 SCREW (90626630) 588 RON
38 1 1 MAGAZINE SA (N748604) 44688 RON
39 1 2 SCREW (90626633) 588 RON
40 1 7 SCREW.TEMP (330045-05) 558 RON
41 1 2 WASHER (90621828) 588 RON
42 1 7 SCREW (330045-07) 558 RON
43 1 3 SCREW (330019-38) 558 RON
44 1 2 SCREW (90614915) 588 RON
45 1 1 SCREW (582193-00) 558 RON
46 1 1 SCREW (90626342) 588 RON
48 1 1 HOUSING (N492341) 588 RON
49 1 1 TUBE SA (N748025) 5370 RON
50 1 1 RATING LABEL (NA380911) 588 RON
62 1 1 NO MAR TIP (N567537) 588 RON
65 1 2 TUBE (90631918) 588 RON
100 1 1 HOOK (90626069) 1318 RON
101 1 2 SCREW SHCS M4X0.7X16 (MSC4070-16) 558 RON
101 1 2 90614909 - Indisponibil
142 1 1 KIT SA (90629537) 5370 RON
150 1 1 LABEL (N592379) 588 RON
