Top » Piese de schimb » Piese Stanley » SFMCCS730M1 Type 1

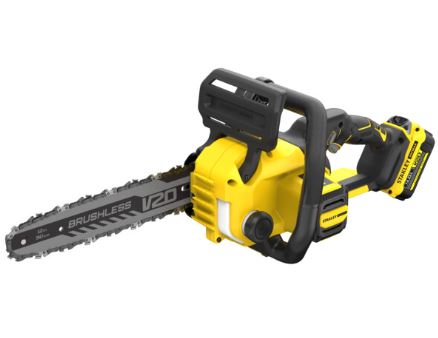

MOTOFIERASTRAU STANLEY SFMCCS730M1 Type 1
[SFMCCS730M1 Type 1]
MOTOFIERASTRAU STANLEY SFMCCS730M1 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU STANLEY SFMCCS730M1 Type 1
Click pentru a mari
MOTOFIERASTRAU STANLEY SFMCCS730M1 Type 1
Click pentru a mari

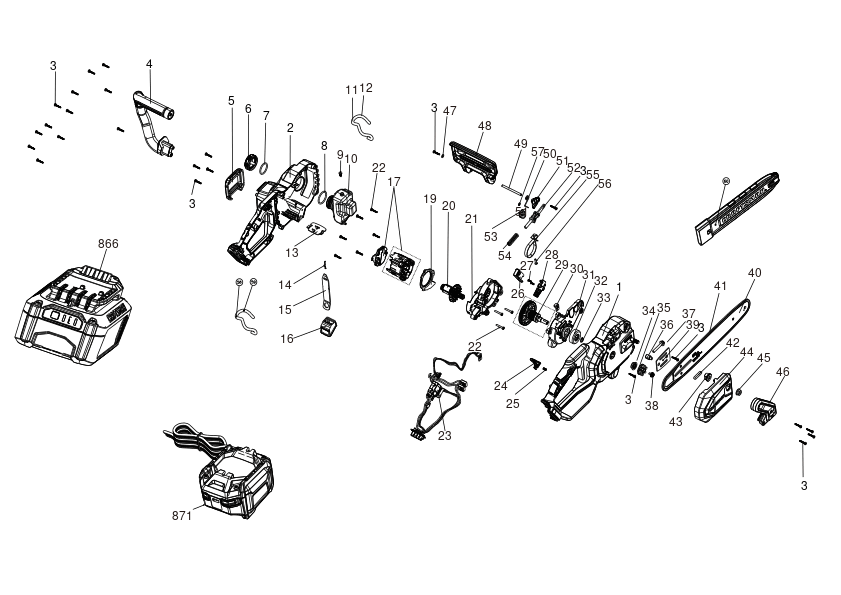

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA352117) 16689 RON
3 1 25 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
4 1 1 HANDLE SA (NA264105) 4355 RON
5 1 1 CAP (NA352123) 3268 RON
6 1 1 CAP (N538272) 1318 RON
7 1 1 GASKET (N564358) 588 RON
8 1 1 O RING (NA323429) 588 RON
9 1 1 VALVE (90618295) 588 RON
10 1 1 TANK (NA264380) 3268 RON
11 1 1 TUBE OIL (NA314928) 82 RON
12 1 1 SPRING (NA316329) 668 RON
13 1 1 PLATE (NA377115) 82 RON
14 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
15 1 1 WRENCH (NA174031) 1772 RON
16 1 1 ISOLATOR (NA302953) 82 RON
17 1 1 CONTROL MODULE SA (NA427264) 48037 RON
19 1 1 PLATE (NA257987) 114 RON
20 1 1 ROTOR SA (NA427776) 16689 RON
21 1 1 GEARCASE SA (NA209034) 4827 RON
22 1 9 SCREW (330019-05) 558 RON
23 1 1 WIRE HARNESS (NA259571) 18568 RON
24 1 1 BUTTON LOCK-OFF (NA313507) 668 RON
25 1 1 SPRING (N433343) 588 RON
26 1 1 PLATE (NA216142) 588 RON
27 1 2 SCREW (681914-00) 558 RON
28 1 1 PUMP SA (N824644) 3954 RON
29 1 1 OUTPUT SHAFT SA (NA428421) 13697 RON
30 1 1 SENSOR (NA315048) 4355 RON
31 1 1 COVER (NA209074) 4355 RON
32 1 1 DRUM (NA063524) 2796 RON
33 1 1 LOCKING RING (624521-00) 558 RON
34 1 1 SEAL (N859252) 588 RON
35 1 1 SPROCKET (N597159) 114 RON
36 1 1 NUT (N737250) 944 RON
37 1 1 BOLT (N689627) 588 RON
38 1 1 BOLT (90639221) 588 RON
39 1 1 PLATE (NA314959) 944 RON
40 1 1 BAR (NA363941) 9012 RON
41 1 1 BAR CHAIN (NA328896) 11337 RON
42 1 1 SEAL (90622086) 588 RON
43 1 1 BUSHING (N692439) 668 RON
44 1 1 COVER (NA352125) 2796 RON
45 1 1 NUT-M8 X 1.25 FLANGE SERRATED (645043-00) 588 RON
46 1 1 PLATE (NA266583) 2796 RON
47 1 1 WASHER PLAIN (330016-01) 558 RON
48 1 1 GUARD COVER (NA352122) 2796 RON
49 1 1 PIN-5MM (N837653) 82 RON
50 1 1 SPRING (NA292778) 588 RON
51 1 1 CAM (NA338176) 82 RON
52 1 1 LINKAGE SA (NA047935) 6688 RON
53 1 1 BRAKE (NA237802) 668 RON
54 1 1 SPRING (NA047674) 668 RON
55 1 1 BAND BRAKE (NA394922) 944 RON
56 1 1 RIVET (NA232138) 588 RON
57 1 1 N572224 - Indisponibil
58 1 1 TUBE (NA291826) 82 RON
59 1 1 SPRING (NA291975) 588 RON
60 1 1 SHEATH (NA352126) 3954 RON
866 1 1 BATTERY (NA158849) 10889 RON
871 1 1 CHARGER SA (NA378064) 32327 RON
