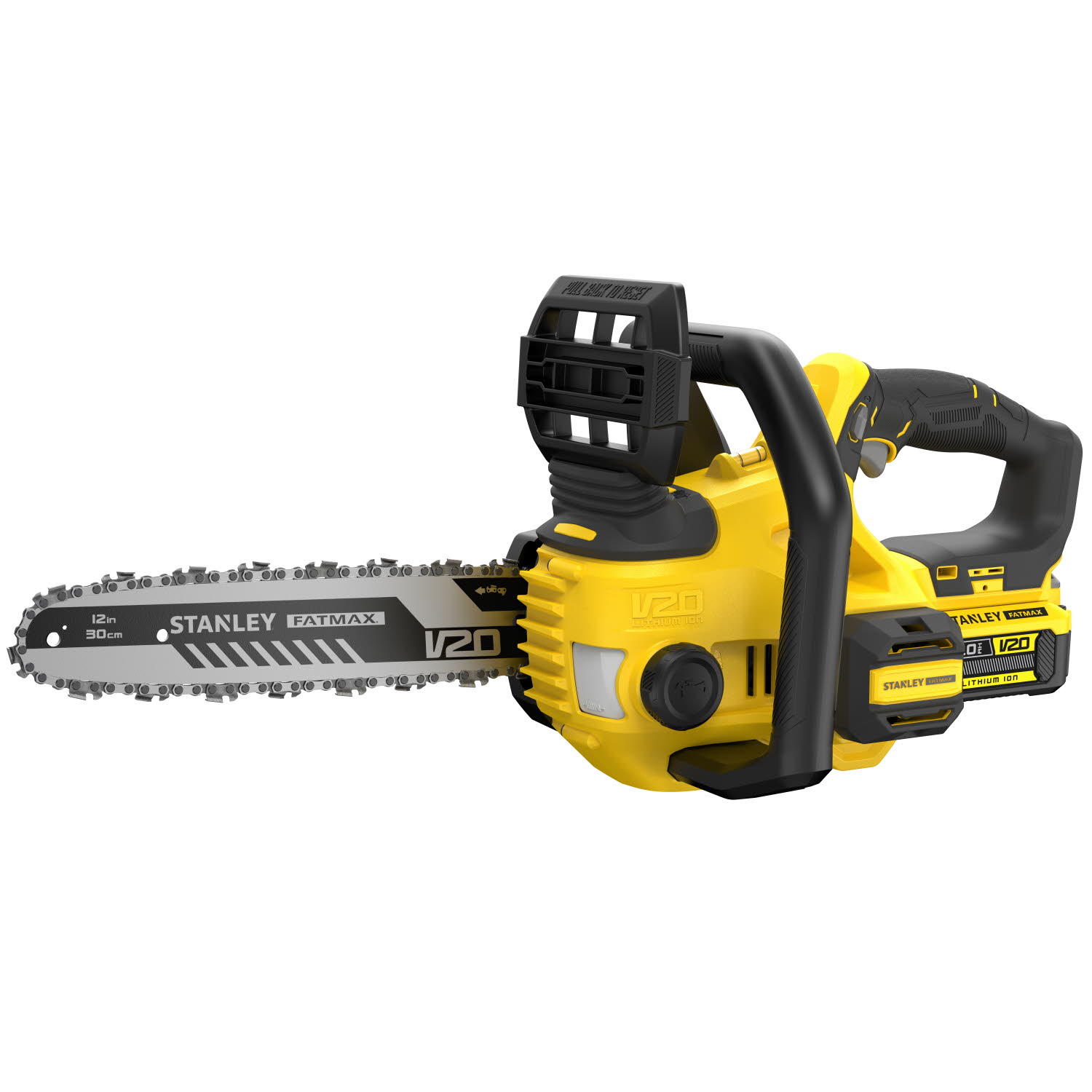

MOTOFIERASTRAU STANLEY SFMCCS630 Type 1
[SFMCCS630 Type 1]
MOTOFIERASTRAU STANLEY SFMCCS630 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU STANLEY SFMCCS630 Type 1
Click pentru a mari
MOTOFIERASTRAU STANLEY SFMCCS630 Type 1
Click pentru a mari

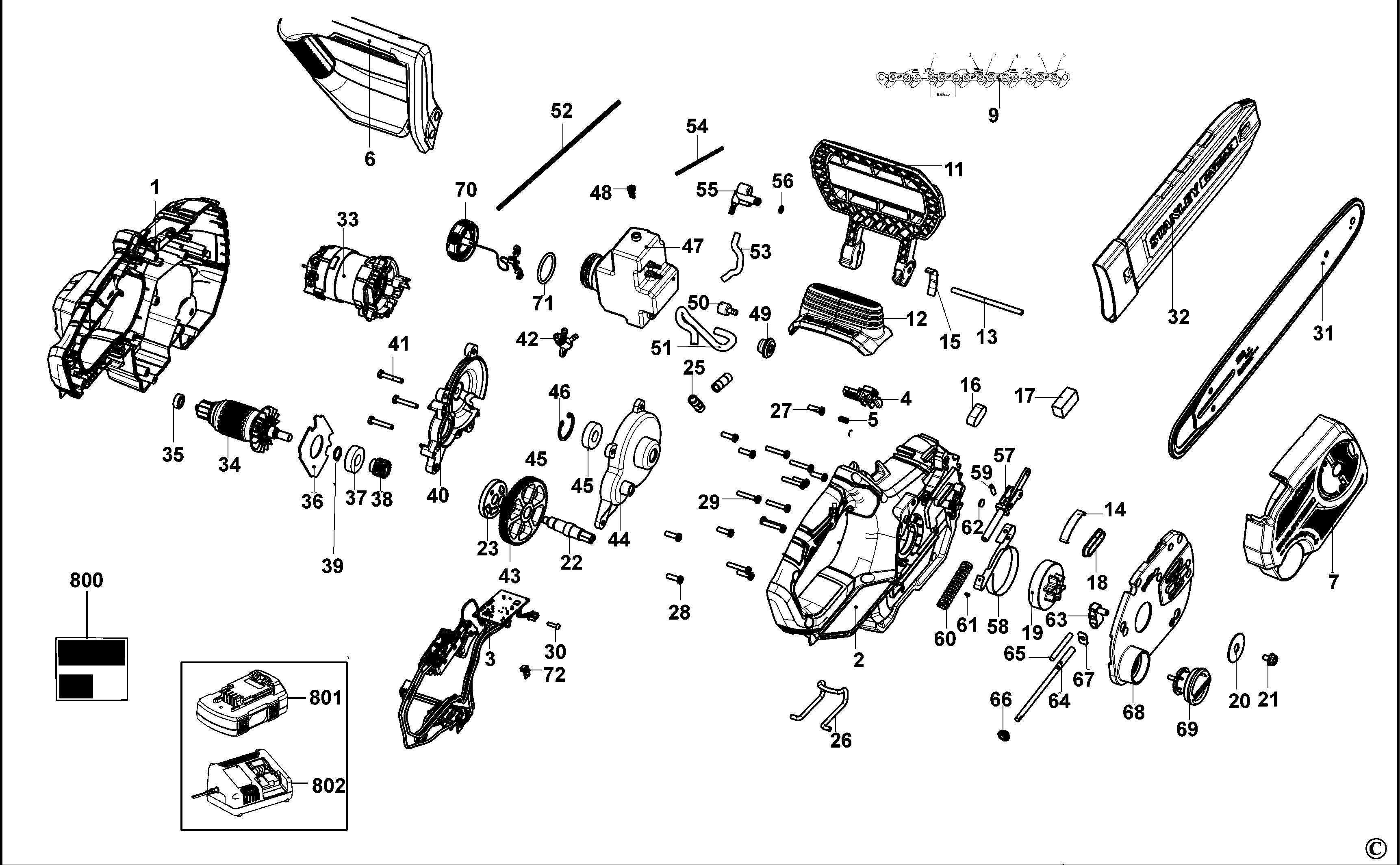

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N718063) 28836 RON
2 1 1 HOUSING SA (N718063) 28836 RON
3 1 1 N726852 - Indisponibil
3 1 1 MODULE (NA201815) 44688 RON
4 1 1 LOCK BUTTON (N564310) 668 RON
5 1 1 SPRING (N433343) 588 RON
6 1 1 HANDLE (N566820) 741 RON
7 1 1 COVER (N718972) 11337 RON
8 1 1 SEAL (90622086) 588 RON
9 1 1 CHAIN (N580237) 10241 RON
11 1 1 GUARD (N566821) 3268 RON
12 1 1 DUST DEFLECTOR (N559937) 4827 RON
13 1 1 PIN (90618528) 944 RON
14 1 1 LEAF SPRING (90621730) 588 RON
15 1 1 90622670 - Indisponibil
15 1 1 LEAF SPRING (NA247458) 588 RON
16 1 1 FOAM (90625343) 588 RON
17 1 1 FOAM (90634469) 588 RON
18 1 1 SEAL (90618051) 588 RON
19 1 1 SPROCKET (90618228) 3268 RON
19 1 1 OUTPUT SHAFT SA (NA378048) 13697 RON
19 1 1 SPROCKET (NA377614) 3268 RON
20 1 1 WASHER (90618229) 588 RON
21 1 1 BOLT (90639221) 588 RON
25 1 2 LEVEL (N554737) 1630 RON
26 1 1 CLIP (N545340) 944 RON
27 1 7 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
28 1 9 screw dw744 (330019-12) 558 RON
29 1 8 SCREW (330019-14) 558 RON
30 1 1 SCREW (330019-28) 588 RON
31 1 1 BAR (N727097) 15469 RON
32 1 1 SHEATH (N715950) 4827 RON
33 1 1 BAFFLE SA (N406590) 13697 RON
34 1 1 ROTOR (N594990) 28836 RON
35 1 1 BEARING (N330639) 2182 RON
36 1 1 N244083 - Indisponibil
36 1 1 PLATE (N822852) 1772 RON
37 1 1 Bearing Ball CWMFG (605040-24) 190 RON
38 1 1 PINION (N604360) 1772 RON
39 1 1 RETAINER (696060-00) 558 RON
40 1 1 GEARCASE (N505620) 10241 RON
41 1 3 SCREW (N130874) 558 RON
42 1 1 PUMP SA (90624557) 3954 RON
43 1 1 N539694 - Indisponibil
43 1 1 OUTPUT SHAFT SA (NA378048) 13697 RON
43 1 1 OUTPUT SHAFT SA (NA378127) 10241 RON
44 1 1 GEARCASE COVER SA (N503590) 6688 RON
45 1 1 BEARING (N150961) 190 RON
46 1 1 RING (90551022) 588 RON
47 1 1 TANK (N566823) 3954 RON
48 1 1 VALVE (90618295) 588 RON
49 1 1 SEAL (90104259) 588 RON
50 1 1 FILTER SA (90622705) 82 RON
51 1 1 TUBE (90609541) 944 RON
52 1 1 SPRING (90620889) 588 RON
53 1 1 TUBE (90609542) 668 RON
54 1 1 SPRING (90620845) 588 RON
55 1 1 PLUG (90104269) 944 RON
56 1 1 O RING (90104270) 588 RON
57 1 1 BRAKE SA (N609743) 5370 RON
58 1 1 STRAP (90638025) 944 RON
59 1 1 SPIROL PIN (90627301) 588 RON
60 1 1 SPRING (N533060) 588 RON
61 1 1 PIN (90594864) 588 RON
62 1 1 N572224 - Indisponibil
63 1 1 CLAMP SA (N558327) 2796 RON
64 1 1 PIN (N555910) 2182 RON
65 1 1 PIN (90090721) 558 RON
65 1 1 90617662 - Indisponibil
66 1 1 Gear (90617659) 82 RON
67 1 1 WASHER (90629979) 588 RON
68 1 1 COVER (90609778) 2182 RON
69 1 1 KNOB SA (N854519) 4355 RON
70 1 1 CAP (N538276) 1933 RON
71 1 1 GASKET (N564358) 588 RON
72 1 1 SENSOR (N576084) 4827 RON
800 1 1 N729770 - Indisponibil
800 1 1 RATING LABEL (NA073233) 588 RON
801 1 1 N734426 - Indisponibil
801 1 1 N855084 - Indisponibil
801 1 1 BATTERY (NA158849) 10889 RON
802 1 1 CHARGER SA (N567651) 36994 RON
802 1 1 CHARGER SA (NA378064) 32327 RON
