MIXER STANLEY FME190 Type 2
[FME190 Type 2]
MIXER STANLEY FME190 Type 2
Click pentru a mari
Imagini suplimentare
MIXER STANLEY FME190 Type 2
Click pentru a mari
MIXER STANLEY FME190 Type 2
Click pentru a mari
MIXER STANLEY FME190 Type 2
Click pentru a mari
MIXER STANLEY FME190 Type 2
Click pentru a mari

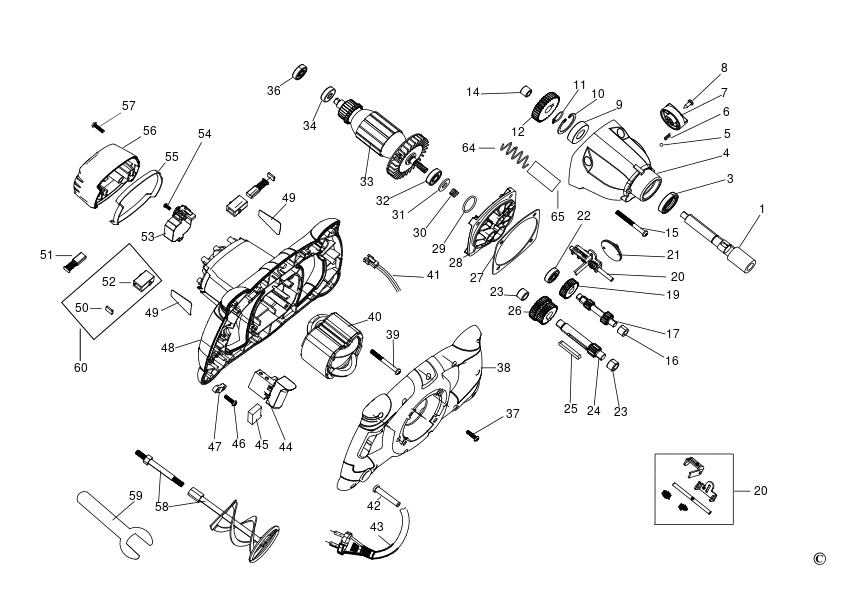

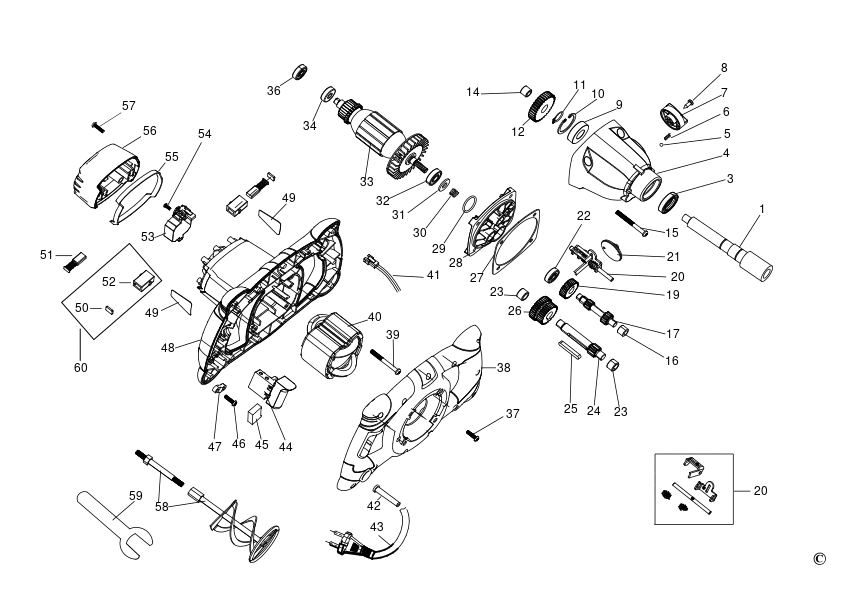

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTPUT SHAFT (1004699-72) 2556 RON
3 1 1 SEAL (1004699-74) 668 RON
4 1 1 HOUSING (1004699-75) 4355 RON
5 1 1 BEARING,BALL (1004699-76) 668 RON
6 1 1 SPRING (1004699-77) 668 RON
7 1 1 KNOB (1004699-78) 668 RON
8 1 1 SCREW (1004699-79) 668 RON
9 1 1 BEARING (1004699-80) 114 RON
10 1 1 CIRCLIP (1004699-81) 668 RON
11 1 1 CIRCLIP (1004699-82) 668 RON
12 1 1 Gear (1004699-83) 1630 RON
14 1 1 BEARING,NEEDLE (1004699-85) 114 RON
15 1 1 SCREW (1004699-86) 668 RON
16 1 1 BEARING,NEEDLE (1004699-85) 114 RON
17 1 1 SHAFT SA (1004699-88) 1772 RON
19 1 1 Gear (1004699-90) 114 RON
20 1 1 FORK (1004700-34) 668 RON
21 1 1 PLATE (1004699-91) 668 RON
22 1 1 BEARING 608 (1004699-92) 82 RON
23 1 1 BEARING NEEDLE (1004699-93) 1318 RON
24 1 1 SHAFT SA (1004699-94) 1318 RON
25 1 1 KEY (1004699-95) 668 RON
26 1 1 Gear (1004699-96) 2556 RON
27 1 1 WASHER (1004699-97) 668 RON
28 1 1 COVER (1004699-98) 2182 RON
29 1 1 O RING (1004700-00) 668 RON
30 1 1 SPRING (1004700-01) 668 RON
31 1 1 PAD (1004700-02) 668 RON
32 1 1 BEARING (1004700-03) 1318 RON
33 1 1 ARMATURE AND FAN (1004700-04) 12361 RON
34 1 1 MAGNET (1004700-05) 668 RON
36 1 1 BEARING (1004700-07) 944 RON
37 1 1 SCREW (1004700-08) 668 RON
38 1 1 HANDLE COVER (1004700-09) 4827 RON
39 1 1 SCREW (1004700-10) 668 RON
40 1 1 STATOR SA (1004700-11) 9012 RON
41 1 1 WIRE (1004700-12) 668 RON
42 1 1 SLEEVE (1004700-13) 668 RON
43 1 1 1004700-31 - Indisponibil
44 1 1 SWITCH SA (5170044-87) 5370 RON
45 1 1 CAPACITOR (1004700-15) 668 RON
46 1 1 SCREW (1004700-16) 668 RON
47 1 1 CABLE CLAMP (1004700-17) 668 RON
48 1 1 HOUSING (1004700-18) 9012 RON
49 1 1 BRAND LABEL (1004700-19) 668 RON
50 1 1 000000-00 - Indisponibil
51 1 1 BRUSH PAIR (1004700-22) 1318 RON
52 1 1 BRUSH HOLDER SA (1004736-02) 1772 RON
53 1 1 CLUTCH MODULE (1004700-23) 10241 RON
54 1 1 SCREW (1004700-24) 668 RON
55 1 1 RING (1004700-25) 668 RON
56 1 1 COVER REAR (1004700-26) 944 RON
57 1 1 SCREW (1004700-08) 668 RON
58 1 1 PADDLE (1004700-28) 6688 RON
59 1 1 SPANNER (1004700-29) 668 RON
60 1 1 BRUSH HOLDER SA (1004736-02) 1772 RON
