Top » Piese de schimb » Piese Stanley » SFMCMWS251M Type 1

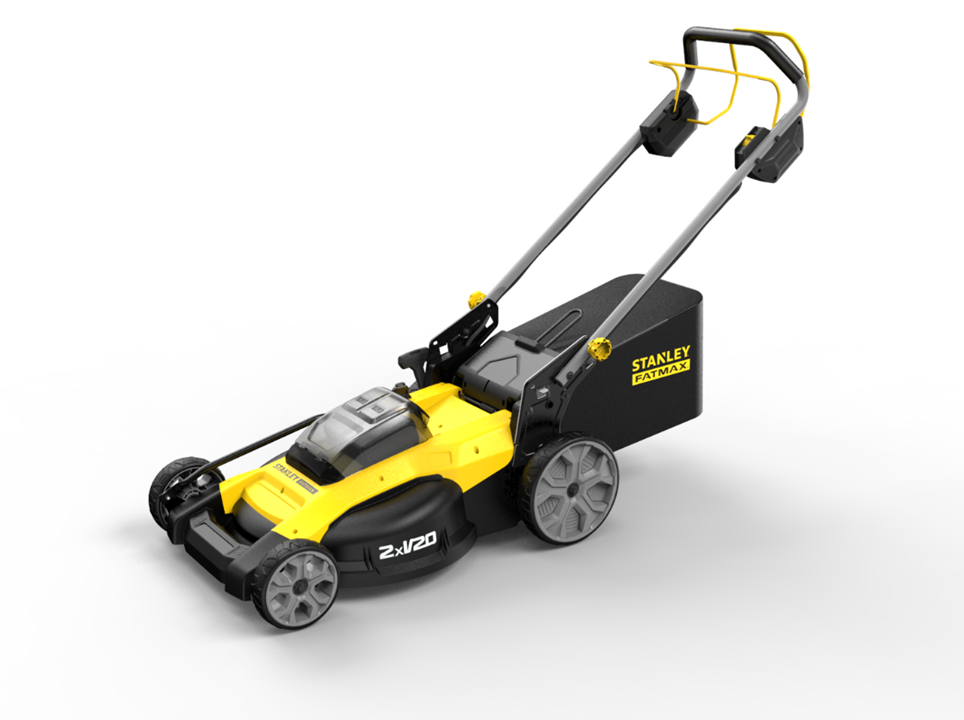

MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMWS251M Type 1
[SFMCMWS251M Type 1]
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMWS251M Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMWS251M Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMWS251M Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMWS251M Type 1
Click pentru a mari

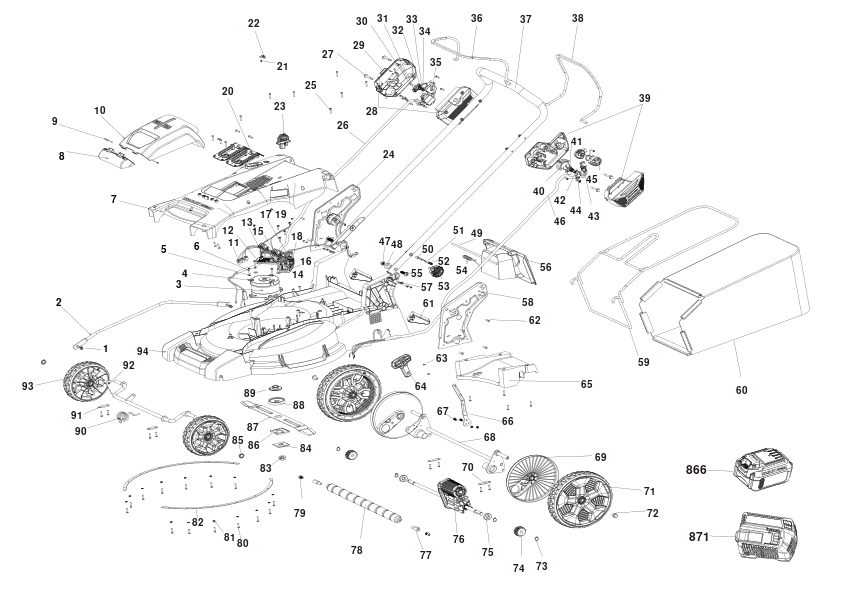

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 8 LOCK-NUT (N541610) 588 RON
2 1 1 ARM (NA015256) 6688 RON
3 1 1 MOTOR SA (N763441) 78485 RON
4 1 4 WASHER (N873636) 588 RON
5 1 4 Washer Lock (098197-11) 558 RON
6 1 4 SCREW PLASTITE (330019-32) 558 RON
7 1 1 NA034441 - Indisponibil
7 1 1 COVER (NA647226) 15469 RON
8 1 1 DOOR (NA006152) 2182 RON
9 1 2 PIN (N592196) 944 RON
10 1 1 BATTERY COVER (NA034771) 16689 RON
11 1 3 CONNECTOR (650974-00) 668 RON
12 1 1 MODULE (NA187293) 96047 RON
13 1 1 HARNESS (NA012266) 4827 RON
14 1 1 PCB SA (NA068866) 36994 RON
15 1 1 HARNESS (NA012265) 9012 RON
16 1 5 CONNECTOR (N590957) 1318 RON
17 1 1 CONNECTOR (N590959) 2796 RON
18 1 4 CONNECTOR-WAGO, 3-WIRE (N590958) 1772 RON
19 1 2 MAGNET (N913001) 82 RON
20 1 2 HOUSING (N825133) 1318 RON
21 1 1 SCREW (593216-00) 588 RON
22 1 1 SENSOR (NA019793) 4827 RON
23 1 1 KEY (NA147501) 3268 RON
24 1 1 HANDLE (NA012007) 10241 RON
25 1 30 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
26 1 1 SWITCHBOX (NA012254) 18568 RON
27 1 4 BOLT (N591023) 588 RON
28 1 1 HOUSING (N914489) 4355 RON
29 1 1 BUTTON (N838981) 944 RON
30 1 1 PIN (90541437) 781 RON
31 1 1 BUTTON (N822323) 82 RON
32 1 1 SPRING (90541477) 781 RON
33 1 1 SWITCH (N736727) 10241 RON
34 1 2 SPRING (N593516) 668 RON
35 1 2 CRANK (N822322) 944 RON
36 1 1 RAIL (NA034619) 4355 RON
37 1 1 HANDLE UPPER (NA070448) 28836 RON
38 1 1 RAIL (NA034617) 4827 RON
39 1 1 HOUSING (NA034616) 5370 RON
40 1 1 LEVER (N725337) 82 RON
41 1 1 PCB (NA019794) 2796 RON
42 1 1 Gear (90172216) 588 RON
43 1 1 SWITCH (90569937) 2347 RON
44 1 1 SHAFT (N587363) 1933 RON
45 1 1 CAM (90149411) 82 RON
46 1 1 WIRE HARNESS (NA012256) 16689 RON
47 1 2 NUT (N535210) 588 RON
48 1 2 SPACER (N535178) 668 RON
49 1 1 SHAFT (N811797) 944 RON
50 1 2 PIN (N514100) 944 RON
51 1 2 SPRING (90564730) 558 RON
52 1 2 SPRING COMPRESSION (90101536) 558 RON
53 1 2 KNOB (N716863) 1630 RON
54 1 1 SPRING (N572158) 668 RON
55 1 2 BOLT (N535212) 668 RON
56 1 1 DOOR (NA014364) 5370 RON
57 1 4 CLAMP CORD CORNER (329301-00) 558 RON
58 1 1 ADJUSTER PLATE (NA018895) 12361 RON
59 1 1 FRAME (N822020) 13697 RON
60 1 1 BAG (N851018) 27287 RON
61 1 2 LEG (NA083286) 2182 RON
62 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
63 1 2 SCREW PLASTIC (330019-41) 588 RON
64 1 2 HOUSING SA (NA034384) 2556 RON
65 1 1 INSERT (NA014880) 5370 RON
66 1 1 HANDLE (NA010943) 2556 RON
67 1 2 SCREW (330045-23) 781 RON
68 1 1 STRAP (NA017627) 25728 RON
69 1 2 COVER (NA014169) 3268 RON
70 1 2 STRAP (N873452) 588 RON
71 1 2 WHEEL (N919555) 15469 RON
72 1 2 BOLT (N604055) 588 RON
73 1 4 RETAINER (034109-00) 558 RON
74 1 2 PINION (NA013906) 3268 RON
75 1 2 BEARING (90136109) 1933 RON
76 1 1 TRANSMISSION SA (NA034615) 10889 RON
77 1 2 PIN (N528290) 1630 RON
78 1 1 ROLLER (NA017972) 4827 RON
79 1 2 N542724 - Indisponibil
79 1 2 BOLT (NA562232) 588 RON
80 1 36 Screw M3.5X16 T15 (330019-03) 558 RON
81 1 14 WASHER (N897843) 588 RON
82 1 2 SUPPORT (N886167) 2556 RON
83 1 1 NUT (N538858) 944 RON
84 1 1 SPACER (092715-00) 781 RON
85 1 2 RETAINER RING (N840352) 588 RON
86 1 1 INSULATOR (NA072603) 114 RON
87 1 1 BLADE (N805216) 13697 RON
88 1 1 SPACER (N806937) 588 RON
89 1 1 SPACER (N806936) 1772 RON
90 1 1 SPRING (NA014940) 2796 RON
91 1 2 PLATE (N523499) 588 RON
92 1 1 NA017812 - Indisponibil
92 1 1 AXLE FRONT (NA707764) 12361 RON
93 1 2 WHEEL (NA002516) 10241 RON
94 1 1 CUTTER DECK (NA083257) 55455 RON
866 1 2 BATTERY (NA158849) 10889 RON
871 1 1 CHARGER SA (N567651) 36994 RON
871 1 1 CHARGER SA (NA378064) 32327 RON
