Top » Piese de schimb » Piese Stanley » SFMCMW2651B Type 1

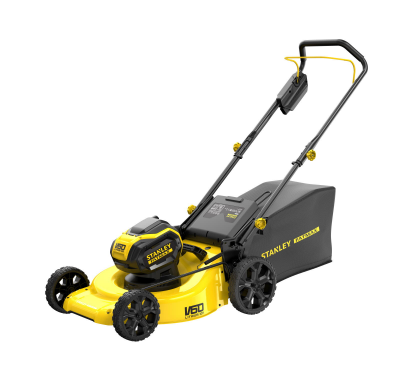

MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMW2651B Type 1
[SFMCMW2651B Type 1]
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMW2651B Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMW2651B Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR STANLEY SFMCMW2651B Type 1
Click pentru a mari

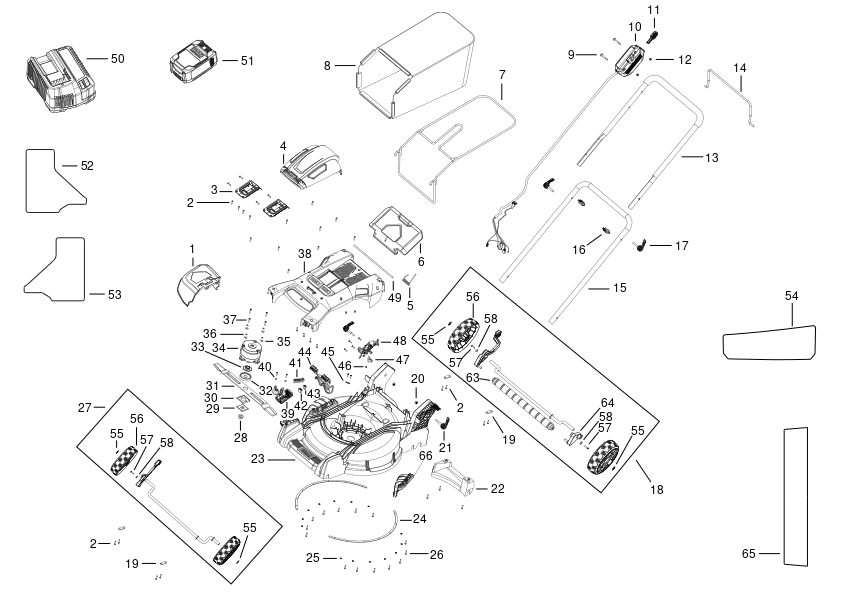

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CHUTE (N825345) 2556 RON
2 1 32 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
3 1 1 HOUSING (N825133) 1318 RON
4 1 1 LID (NA046544) 15469 RON
5 1 1 SPRING (N572158) 668 RON
6 1 1 DOOR (N825801) 4355 RON
7 1 1 FRAME (N822020) 13697 RON
8 1 1 BAG (N851018) 27287 RON
9 1 2 BOLT (N591023) 588 RON
10 1 1 SWITCH SA (NA006329) 49114 RON
11 1 1 KEY (N838934) 668 RON
12 1 2 LOCK-NUT (N541610) 588 RON
13 1 1 HANDLE (N843627) 15469 RON
14 1 1 LEVER (N838980) 3268 RON
15 1 1 HANDLE (N805259) 15469 RON
16 1 2 WING NUT (N838983) 82 RON
17 1 2 CLAMP (NA046545) 741 RON
18 1 1 BEAM (NA087207) 57833 RON
19 1 4 PLATE (N523499) 588 RON
20 1 2 NUT (N535210) 588 RON
21 1 2 KNOB SA (NA046543) 9012 RON
22 1 1 CHUTE (N813018) 2182 RON
23 1 1 CHASSIS (N838943) 44688 RON
24 1 2 SUPPORT (N886167) 2556 RON
25 1 14 WASHER (N897843) 588 RON
25 1 1 RATING LABEL (NA121369) 1772 RON
26 1 22 Screw M3.5X16 T15 (330019-03) 558 RON
27 1 1 BEAM (NA046542) 39318 RON
28 1 1 NUT (N538858) 944 RON
29 1 1 SPACER (N850257) 1630 RON
30 1 1 WASHER INSULATING (90541434) 781 RON
31 1 1 BLADE (N805216) 13697 RON
32 1 1 SPACER (N806937) 588 RON
33 1 1 SPACER (N806936) 1772 RON
34 1 1 MOTOR SA (N763441) 78485 RON
35 1 4 WASHER (N873636) 588 RON
36 1 4 Washer Lock (098197-11) 558 RON
37 1 4 SCREW PLASTITE (330019-32) 558 RON
38 1 1 COVER (N838944) 13697 RON
39 1 1 MODULE (NA085470) 57833 RON
40 1 4 WASHER PLAIN (330016-01) 558 RON
41 1 4 CONNECTOR (650974-00) 668 RON
42 1 1 CONNECTOR-WAGO, 3-WIRE (N590958) 1772 RON
43 1 2 CONNECTOR (N590957) 1318 RON
44 1 1 HARNESS (N820302) 5370 RON
45 1 1 CLAMP CORD CORNER (329301-00) 558 RON
46 1 1 SCREW (N601444) 588 RON
47 1 1 CARRIER (N828865) 588 RON
48 1 1 ADJUSTER (NA263803) 2796 RON
49 1 1 SHAFT (N811797) 944 RON
53 1 1 N844075 - Indisponibil
53 1 1 RATING LABEL (NA696811) 1318 RON
54 1 1 LABEL (N844074) 114 RON
55 1 4 RETAINER RING (N840352) 588 RON
56 1 4 WHEEL (N823222) 5370 RON
57 1 2 SCREW MACH M4X17 T20 (N093602) 558 RON
58 1 2 WASHER (N871172) 588 RON
63 1 1 ROLLER (N823610) 3268 RON
64 1 1 BRACKET (N824834) 2556 RON
65 1 1 LABEL (N844077) 588 RON
66 1 1 BOTTOM MOULDING SA (NA263805) 4827 RON
