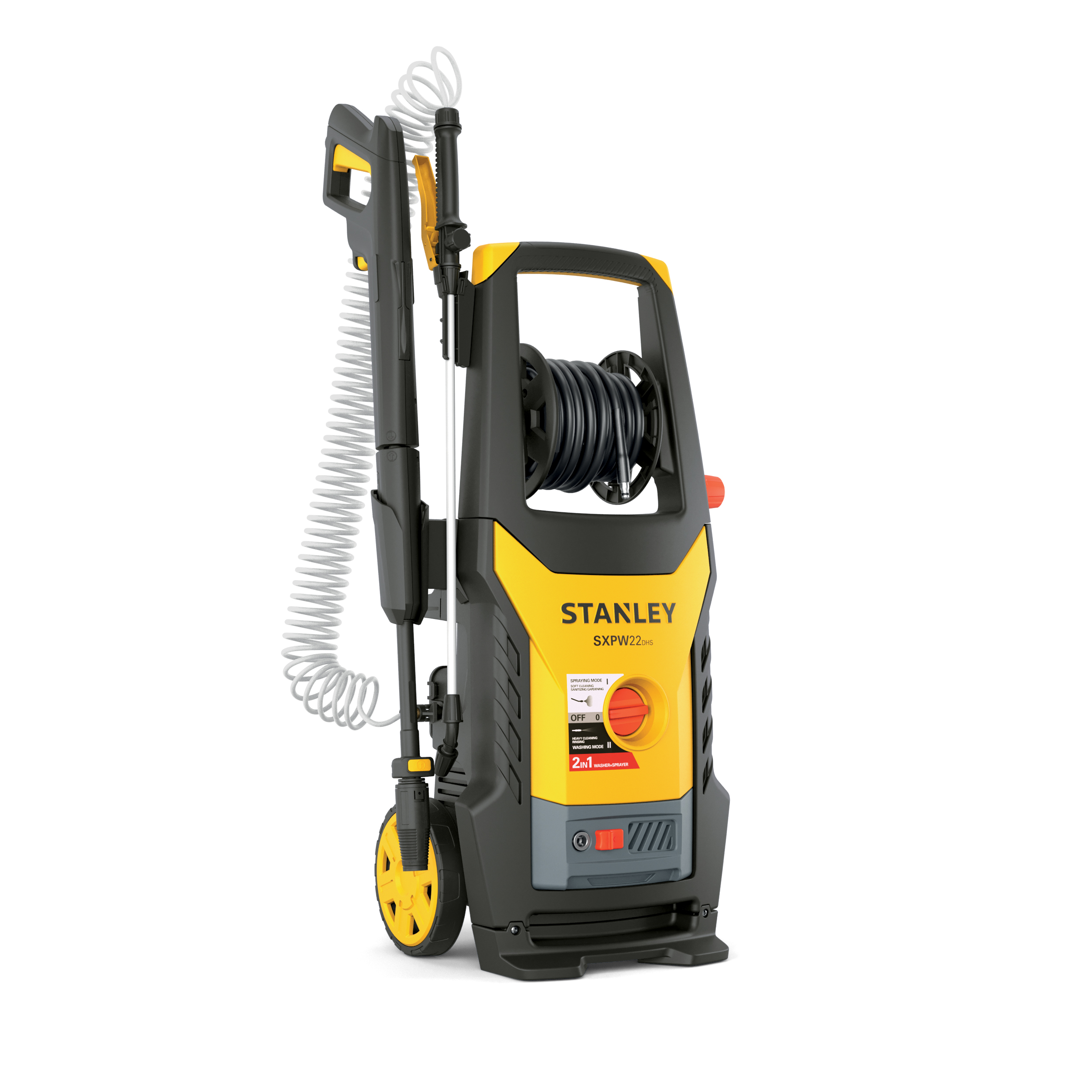

MASINA DE SPALAT CU PRESIUNE STANLEY SXPW22DHS-E Type 1
[SXPW22DHS-E Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW22DHS-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW22DHS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW22DHS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW22DHS-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW22DHS-E Type 1
Click pentru a mari

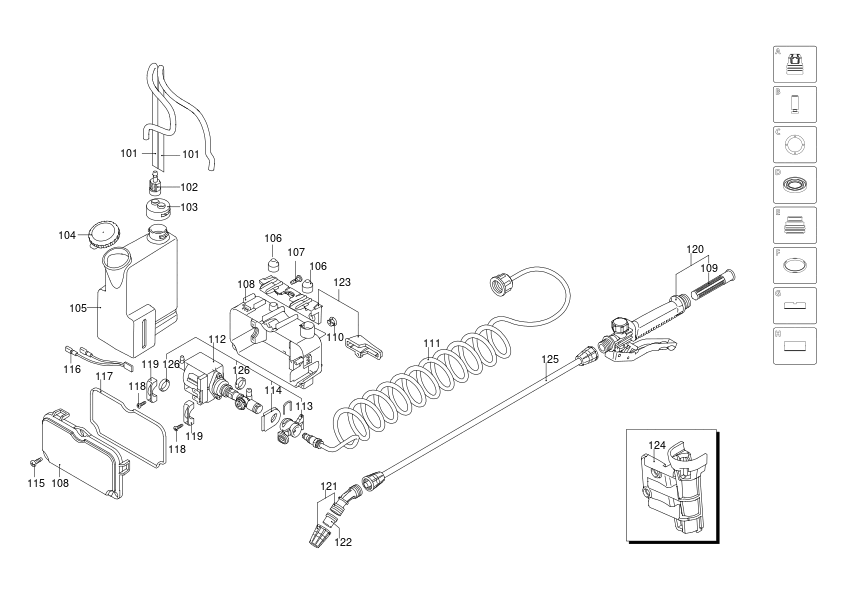

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE (5140205-68) 9012 RON
2 1 1 KNOB (4380251) 1318 RON
3 1 1 LEVER (5140205-70) 114 RON
4 1 1 CASTING SA (4380650) 16689 RON
5 1 1 X94ND (1004455-07) 114 RON
6 1 1 CORDSET (1004700-91) 16689 RON
7 1 1 COVER (4720490) 82 RON
8 1 1 PIN (4720470) 114 RON
9 1 1 SWITCH (4720610) 6688 RON
10 1 1 FORK (1004512-08) 4137 RON
11 1 1 COUPLING (4382480) 10241 RON
12 1 1 PUMP SA (4383830) 113822 RON
13 1 1 COVER (4380590) 1772 RON
14 1 1 COVER (4380580) 114 RON
15 1 1 FOOT (1004712-16) 3268 RON
16 1 1 CARRIER (5140205-76) 944 RON
17 1 1 CONVEYOR (4380160) 741 RON
18 1 1 CONVEYOR (4380170) 6688 RON
19 1 1 BRUSH PAIR (3082600) 741 RON
20 1 2 GUARD (5140205-79) 3954 RON
21 1 2 WHEEL (5140205-80) 9012 RON
22 1 1 BASE SA (4380491) 20216 RON
23 1 1 CARRIER (4380540) 9012 RON
24 1 1 COUPLING SA (1004712-93) 3954 RON
25 1 1 KIT (3081280) 9012 RON
26 1 1 3081270 - Indisponibil
27 1 1 SERVICE KIT (1004455-19) 27287 RON
28 1 1 SCREW KIT (4381470) 3268 RON
29 1 1 KNOB (5140205-86) 2556 RON
30 1 1 COVER (4380660) 9012 RON
31 1 1 COVER (4380670) 13697 RON
32 1 1 CARRIER (4580590) 5370 RON
33 1 1 SHAFT (4383370) 6688 RON
34 1 1 KNOB (5140205-84) 1318 RON
35 1 1 SPRING (4720500) 944 RON
36 1 1 SUPPORT (4720480) 1933 RON
37 1 1 LOCK (4720250) 114 RON
38 1 1 SUPPORT (4383400) 3954 RON
39 1 1 BRACKET (5140205-75) 2556 RON
40 1 2 PLATE (5140126-71) 5370 RON
41 1 2 SHIM (5140205-92) 1772 RON
42 1 1 BRACKET (5140205-91) 1630 RON
43 1 1 LEVER (5140205-90) 3268 RON
101 1 2 PIPE (5340240) 1630 RON
102 1 1 DETERGENT FILTER 840.043 HW111 (3440720) 105 RON
103 1 1 PLUG (5340120) 1630 RON
104 1 1 PLUG (5340400) 1630 RON
105 1 1 TANK (5340110) 6688 RON
106 1 2 GLAND (5340420) 944 RON
107 1 2 SURUB 5X16 HW131 (2100300) 446 RON
108 1 1 5340470 - Indisponibil
109 1 1 FILTER (5340350) 1772 RON
110 1 1 PLUG (5000570) 2556 RON
111 1 1 HOSE (5340380) 20216 RON
112 1 1 PUMP SA (5340390) 60451 RON
113 1 1 O RING (3083300) 2556 RON
114 1 1 INSERT (5340180) 1630 RON
115 1 3 SURUB 5X16 HW131 (2100300) 446 RON
116 1 1 5340450 - Indisponibil
117 1 1 5340440 - Indisponibil
119 1 2 CLAMP (5340170) 82 RON
120 1 1 5340372 - Indisponibil
121 1 1 TIP (5340360) 114 RON
122 1 1 NOZZLE (5340090) 15469 RON
123 1 1 5340460 - Indisponibil
124 1 1 5340100 - Indisponibil
125 1 1 TUBE (5320020) 9012 RON
126 1 2 5340160 - Indisponibil
201 1 1 HANDLE SA (4381480) 18568 RON
202 1 1 EXTENSION (5140205-97) 13697 RON
203 1 1 LANCE HEAD (5140205-98) 13697 RON
204 1 1 HEAD SA (4101550) 10241 RON
205 1 1 TANK (5140206-00) 4355 RON
206 1 1 HOSE (4581030) 30769 RON
207 1 2 O-RING (5140193-41) 668 RON
208 1 2 O-RING (5140206-02) 668 RON
209 1 2 O-RING (5140193-42) 668 RON
