Top » Piese de schimb » Piese Stanley » SXPW210TRA Type 1

MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
[SXPW210TRA Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW210TRA Type 1
Click pentru a mari

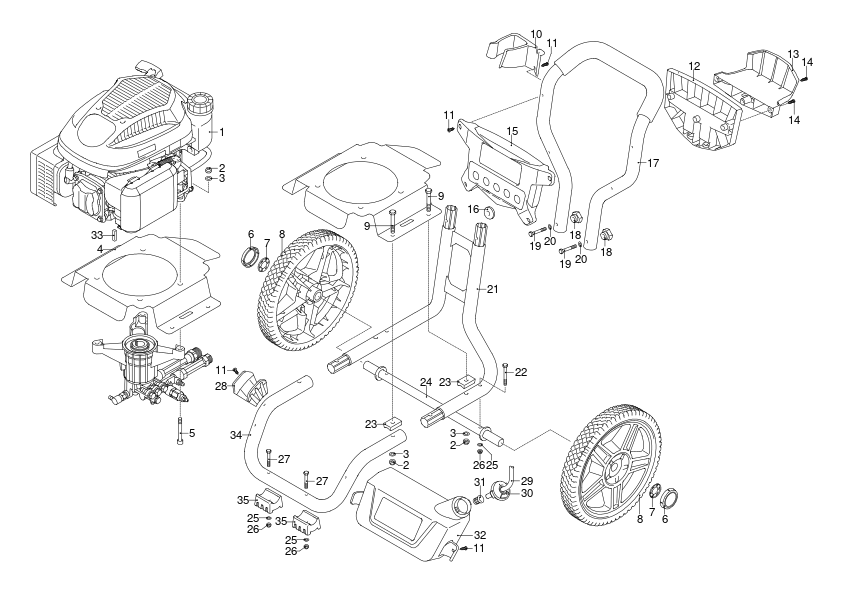

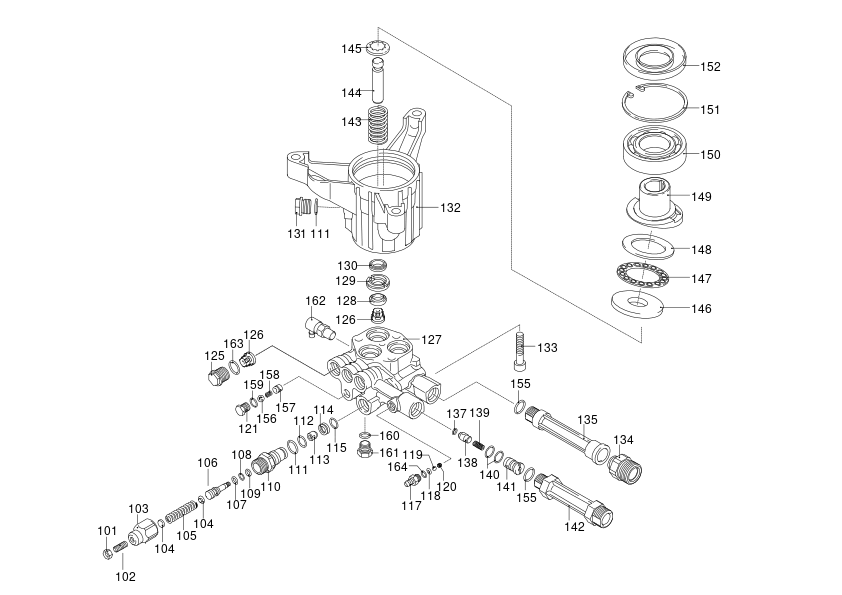

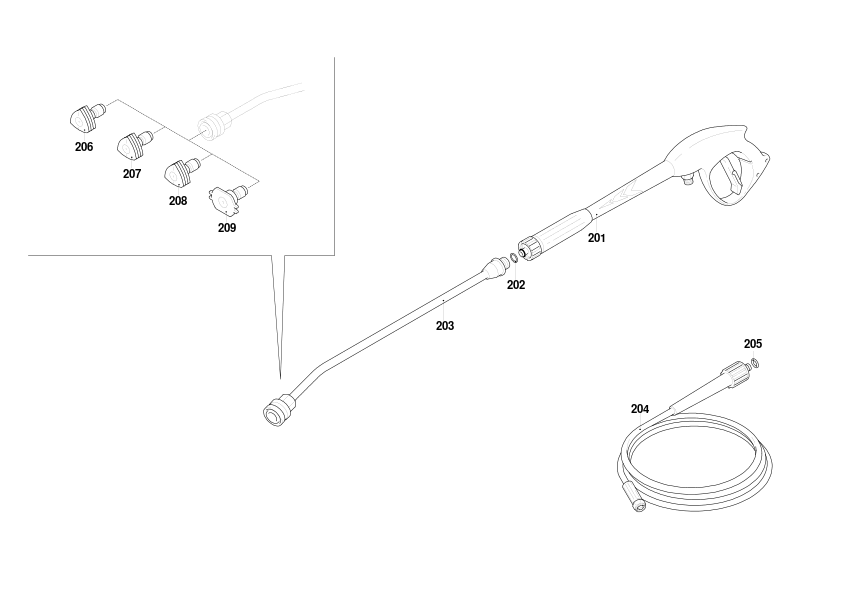

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (1004784-64) 249223 RON
2 1 8 NUT (1004709-57) 1630 RON
3 1 8 WASHER (1004709-70) 668 RON
4 1 1 SUPPORT (1004784-65) 73079 RON
5 1 4 SCREW (1004784-66) 1630 RON
6 1 2 COVER (1004784-67) 24962 RON
7 1 2 WASHER (380620) 82 RON
8 1 2 WHEEL (1004784-68) 18568 RON
9 1 4 SCREW (1004784-69) 1630 RON
10 1 1 CARRIER (1004784-70) 21676 RON
11 1 8 SCREW (1004712-12) 668 RON
12 1 1 GUARD (1004784-71) 27287 RON
13 1 1 CARRIER (1004784-72) 23244 RON
14 1 3 SCREW (1004712-13) 668 RON
15 1 1 SUPPORT (1004784-73) 23244 RON
16 1 5 HOLDER (1004784-74) 1630 RON
17 1 1 HANDLE (1004784-75) 96047 RON
18 1 2 KNOB (1004774-14) 3954 RON
19 1 2 SCREW (1004784-76) 668 RON
20 1 2 WASHER (1004784-77) 668 RON
21 1 1 FRAME SA (1004784-78) 125542 RON
22 1 2 SCREW (1004784-79) 668 RON
23 1 4 SPACER (1004784-80) 1630 RON
24 1 1 AXLE (1004784-81) 40734 RON
25 1 4 WASHER (1004784-82) 944 RON
26 1 4 NUT (3000170) 668 RON
27 1 2 SCREW (1004784-83) 82 RON
28 1 1 CARRIER (1004784-84) 18568 RON
29 1 1 HOSE (1004710-70) 2556 RON
30 1 1 PLUG (1004784-85) 10241 RON
31 1 1 FILTER (1004784-86) 1630 RON
32 1 1 TANK (1004784-87) 32327 RON
33 1 1 KEY (1004784-88) 4355 RON
34 1 1 FRAME (1004784-89) 57833 RON
35 1 2 BASE (1004784-90) 4355 RON
101 1 1 NUT (1004710-34) 668 RON
102 1 1 SCREW (1004709-74) 668 RON
103 1 1 INSERT (1004784-91) 24962 RON
104 1 2 PLATE (1004711-87) 668 RON
105 1 1 SPRING (1004712-59) 2556 RON
106 1 1 PISTON (1004784-92) 741 RON
107 1 1 O RING (1004712-21) 944 RON
108 1 1 O RING (1004709-88) 668 RON
109 1 1 RING (1004712-52) 1318 RON
110 1 1 GUIDE (1004784-93) 73079 RON
111 1 2 O RING (1004709-90) 668 RON
112 1 1 O RING (1004710-05) 668 RON
113 1 1 SHUTTER (1004784-94) 741 RON
114 1 1 SEAT (1004784-95) 3954 RON
115 1 1 O RING (1004711-57) 668 RON
117 1 1 COUPLING (3700240) 1933 RON
118 1 1 O RING (1004709-78) 668 RON
119 1 1 BALL (1004710-50) 668 RON
120 1 1 SPRING (1004711-70) 668 RON
121 1 1 SCREW (1004712-70) 1630 RON
125 1 3 PLUG (1004784-96) 9012 RON
126 1 6 VALVE (1004784-97) 4355 RON
127 1 1 HEAD SA (1004784-98) 20216 RON
128 1 3 SEAL (1004712-18) 944 RON
129 1 3 BUSHING (1004784-99) 668 RON
130 1 3 SEAL (1004711-74) 114 RON
131 1 1 PLUG (1004785-00) 1630 RON
132 1 1 PUMP SA (1004785-01) 30769 RON
133 1 3 SCREW (1004785-02) 668 RON
134 1 1 FITTING (1004785-03) 35435 RON
135 1 1 FITTING (1004785-04) 10241 RON
137 1 1 O RING (1004711-50) 668 RON
138 1 1 VALVE (1004785-05) 3954 RON
139 1 1 SPRING (1004785-06) 668 RON
140 1 2 O RING (1004710-00) 668 RON
141 1 1 VALVE (3700200) 9012 RON
142 1 1 FITTING (1004785-07) 16689 RON
143 1 3 SPRING (1004785-08) 668 RON
144 1 3 PISTON (1004785-09) 2796 RON
145 1 3 LOCK (1004712-64) 668 RON
146 1 1 WHEEL (1004785-10) 10241 RON
147 1 1 WHEEL (1004785-11) 6688 RON
148 1 1 WHEEL (1004785-12) 2556 RON
149 1 1 PLATE (1004785-13) 16689 RON
150 1 1 BEARING (1004785-14) 18568 RON
151 1 1 RING (1004785-15) 1318 RON
152 1 1 RING (1004785-16) 3268 RON
155 1 3 O RING (1004712-71) 668 RON
156 1 1 BALL (1060100) 668 RON
157 1 1 SEAT (1004785-17) 1630 RON
158 1 1 SPRING (2840450) 1318 RON
159 1 1 O RING (1004709-81) 668 RON
160 1 1 Washer HW151 (480650) 446 RON
161 1 1 PLUG (2840840) 4355 RON
162 1 3 VALVE (1004785-18) 12361 RON
163 1 1 O RING (2841520) 668 RON
164 1 1 O RING (1004785-19) 668 RON
201 1 1 HANDLE (40925) 24962 RON
202 1 1 O RING (1004709-73) 668 RON
203 1 1 EXTENSION (1004785-21) 18568 RON
204 1 1 HOSE SA, REINFORCED (1004785-50) 51127 RON
204 1 1 3780493 - Indisponibil
205 1 1 O RING (1004712-02) 1318 RON
206 1 1 NOZZLE (1004785-23) 10241 RON
207 1 1 NOZZLE (1004785-24) 10241 RON
208 1 1 NOZZLE (1004785-25) 10241 RON
209 1 1 NOZZLE (1004785-26) 10241 RON
