Top » Piese de schimb » Piese Stanley » SXPW19BX-E Type 1

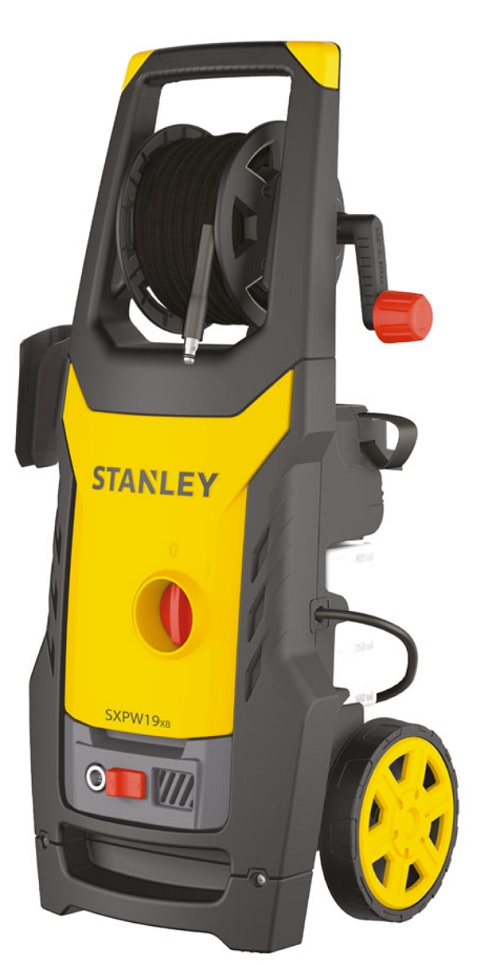

MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19BX-E Type 1
[SXPW19BX-E Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19BX-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19BX-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19BX-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19BX-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19BX-E Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (4380930) 15469 RON
2 1 1 KNOB (4381300) 6688 RON
3 1 1 COVER (4380940) 9012 RON
4 1 1 COVER (4380950) 9012 RON
5 1 1 GUARD FRONT (4380910) 11337 RON
6 1 1 KNOB (4380251) 1318 RON
7 1 1 GUARD LOWER (4380880) 2796 RON
8 1 1 LEVER (5140205-70) 114 RON
9 1 1 CASING (4380900) 15469 RON
10 1 1 FOOT SA (4380870) 741 RON
11 1 1 X94ND (1004455-07) 114 RON
12 1 1 3980130 - Indisponibil
13 1 1 PIN (1004700-66) 668 RON
14 1 1 SWITCH SA (1004700-67) 741 RON
15 1 1 CAPACITOR KIT (3086010) 10241 RON
16 1 1 000000-99 - Indisponibil
16 1 1 MOTOR PUMP SA (4383650) 96047 RON
17 1 1 COUPLING (4382480) 10241 RON
17 1 1 COUPLING (4383200) 15469 RON
18 1 1 5140126-05 - Indisponibil
19 1 1 5140126-14 - Indisponibil
20 1 1 5140126-16 - Indisponibil
21 1 1 GUARD (4380180) 2182 RON
22 1 1 CONVEYOR (4380160) 741 RON
23 1 1 CONVEYOR (4380170) 6688 RON
24 1 1 BASE (4380201) 18568 RON
25 1 1 CARRIER (5140205-81) 11337 RON
25 1 1 CARRIER (5140205-21) 9012 RON
26 1 1 CARRIER (5140205-89) 2182 RON
27 1 1 CARRIER (5140205-76) 944 RON
28 1 2 WHEEL (4380340) 9012 RON
29 1 2 GUARD (4380860) 4355 RON
30 1 1 INDUCTOR (5480770) 4827 RON
31 1 1 CORDSET (1004700-91) 16689 RON
32 1 1 COUPLING SA (1004712-93) 3954 RON

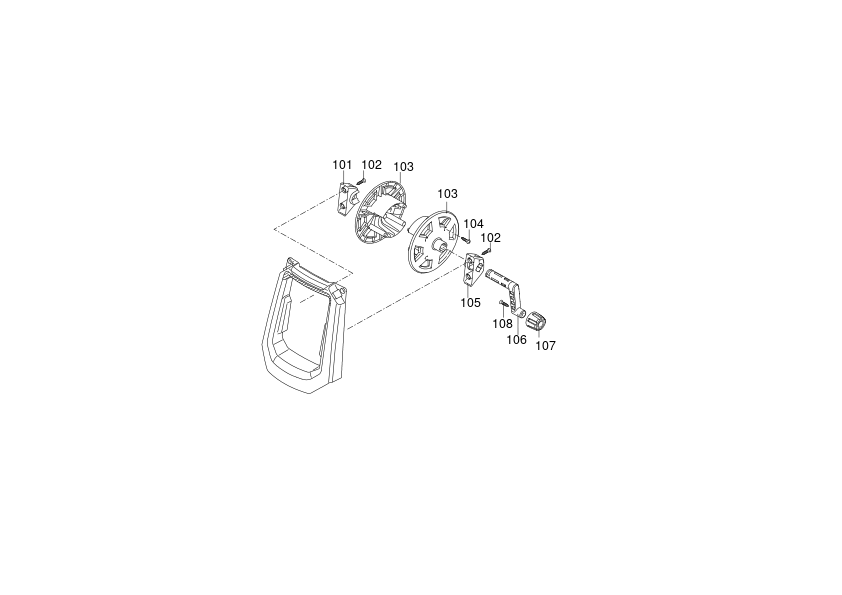

101 1 1 BRACKET (5140205-75) 2556 RON
102 1 4 SCREW (50943) 1630 RON
103 1 2 PLATE (5140126-71) 5370 RON
104 1 4 SCREW (50943) 1630 RON
105 1 1 BRACKET (5140205-91) 1630 RON
106 1 1 LEVER (5140205-90) 3268 RON
107 1 1 KNOB (5140205-84) 1318 RON
108 1 1 SCREW (5460700) 668 RON

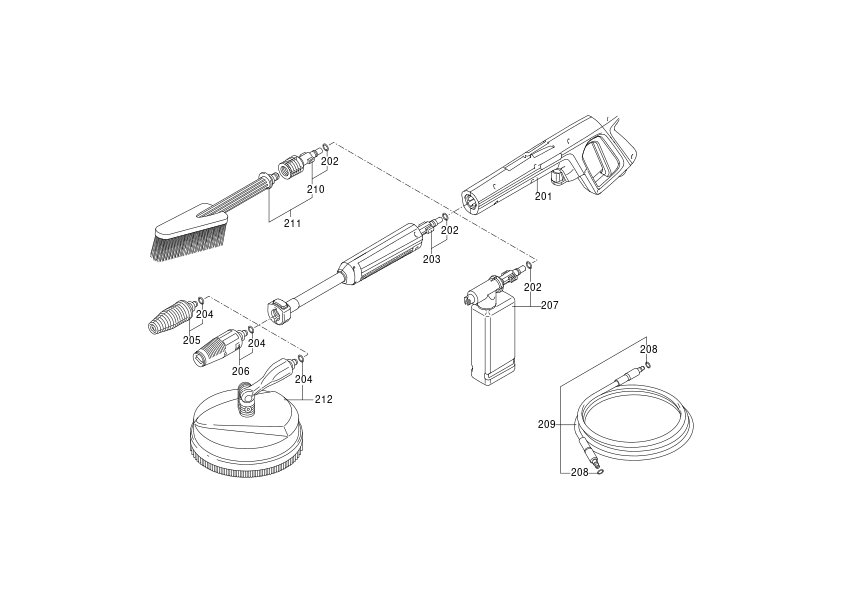

201 1 1 HANDLE SA (4381480) 18568 RON
202 1 3 O-RING (5140193-41) 668 RON
203 1 1 EXTENSION (5140205-97) 13697 RON
204 1 3 O-RING (5140206-02) 668 RON
205 1 1 LANCE HEAD (5140205-98) 13697 RON
206 1 1 HEAD SA (4381810) 9012 RON
207 1 1 TANK (5140206-00) 4355 RON
208 1 2 O-RING (5140193-42) 668 RON
209 1 1 HOSE SA (4821170) 25728 RON
210 1 1 ADAPTOR (1004512-28) 4137 RON
211 1 1 BRUSH (1004455-56) 9012 RON
212 1 1 BRUSH SA (3084355) 23244 RON
212 1 1 BRUSH SA (3085850) 20216 RON
801 1 1 VALVE AND SEAL KIT (5140126-49) 10241 RON
802 1 1 SERVICE KIT (1004455-16) 15469 RON
803 1 1 KIT (3081280) 9012 RON
804 1 1 BRUSH PAIR (3082600) 741 RON
805 1 1 SCREW KIT (4381470) 3268 RON
