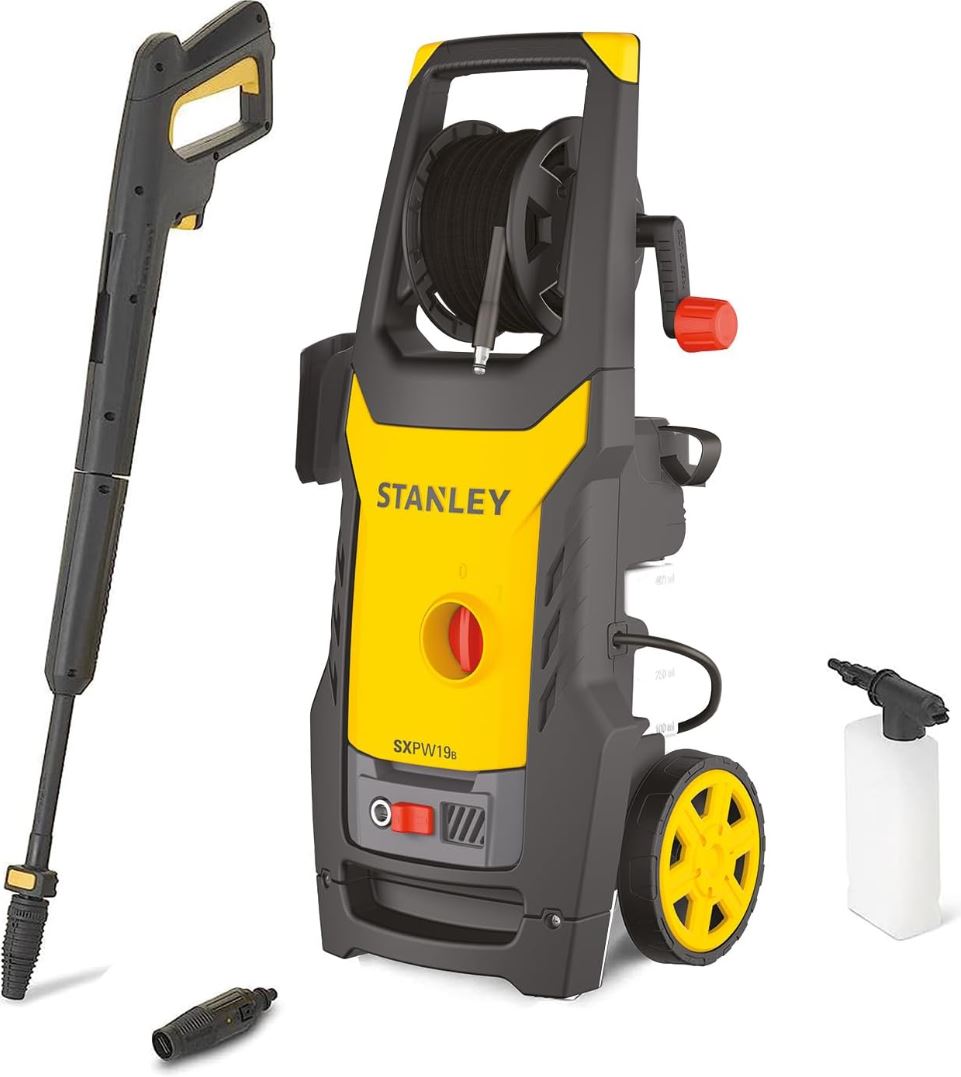

MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19B Type 1
[SXPW19B Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19B Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19B Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19B Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19B Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXPW19B Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (4380930) 15469 RON
2 1 1 KNOB (4381300) 6688 RON
3 1 1 COVER (4380940) 9012 RON
4 1 1 COVER (4380950) 9012 RON
5 1 1 GUARD FRONT (4380910) 11337 RON
6 1 1 KNOB (4380251) 1318 RON
7 1 1 GUARD LOWER (4380880) 2796 RON
8 1 1 LEVER (5140205-70) 114 RON
9 1 1 CASING (4380900) 15469 RON
10 1 1 FOOT SA (4380870) 741 RON
11 1 1 X94ND (1004455-07) 114 RON
12 1 1 BASE (4380201) 18568 RON
13 1 1 CARRIER (5140205-21) 9012 RON
14 1 1 CARRIER (4580590) 5370 RON
15 1 1 SUPPORT (4383860) 3268 RON
16 1 1 CARRIER (5140205-76) 944 RON
17 1 2 WHEEL (4380340) 9012 RON
18 1 2 GUARD (4380865) 2796 RON
19 1 1 SCREW KIT (4381470) 3268 RON
20 1 1 BRACKET (5140205-75) 2556 RON
21 1 8 SCREW (50943) 1630 RON
22 1 2 PLATE (5140126-71) 5370 RON
23 1 1 BRACKET (5140205-91) 1630 RON
24 1 1 LEVER (5140205-90) 3268 RON
25 1 1 KNOB (5140205-84) 1318 RON
26 1 1 SCREW (5460700) 668 RON
27 1 1 MOTOR PUMP SA (4383650) 96047 RON
28 1 1 CONVEYOR (4380170) 6688 RON
29 1 8 SCREW (5480500) 668 RON
30 1 1 SHIM (4720590) 944 RON
31 1 1 CONVEYOR (4380160) 741 RON
32 1 1 SWITCH SA (1004700-67) 741 RON
33 1 1 PIN (1004700-66) 668 RON
34 1 1 3980130 - Indisponibil
35 1 1 CAPACITOR KIT (3086010) 10241 RON
36 1 1 COUPLING (4382480) 10241 RON
37 1 1 FORK (1004512-08) 4137 RON
38 1 1 INDUCTOR (5480770) 4827 RON
39 1 1 Cable (Schuko plug) (50940) 7381 RON
40 1 1 SERVICE KIT (1004455-19) 27287 RON
41 1 1 3081270 - Indisponibil
42 1 1 KIT-TSS KIT (4384420) 10241 RON
43 1 1 BRUSH PAIR (4720810) 6688 RON
44 1 1 VALVE KIT-VALVE KIT TSS (5480560) 10241 RON
101 1 1 HANDLE SA (4381480) 18568 RON
102 1 2 O-RING (5140193-41) 668 RON
103 1 1 EXTENSION (5140205-97) 13697 RON
104 1 2 O-RING (5140206-02) 668 RON
105 1 1 LANCE HEAD (5140205-98) 13697 RON
106 1 1 HEAD SA (4381810) 9012 RON
107 1 1 TANK (5140206-00) 4355 RON
108 1 2 O-RING (5140193-42) 668 RON
109 1 1 HOSE SA (4821170) 25728 RON
110 1 1 COUPLING SA (1004712-93) 3954 RON
