Top » Piese de schimb » Piese Stanley » SXFPW30F-E Type 1

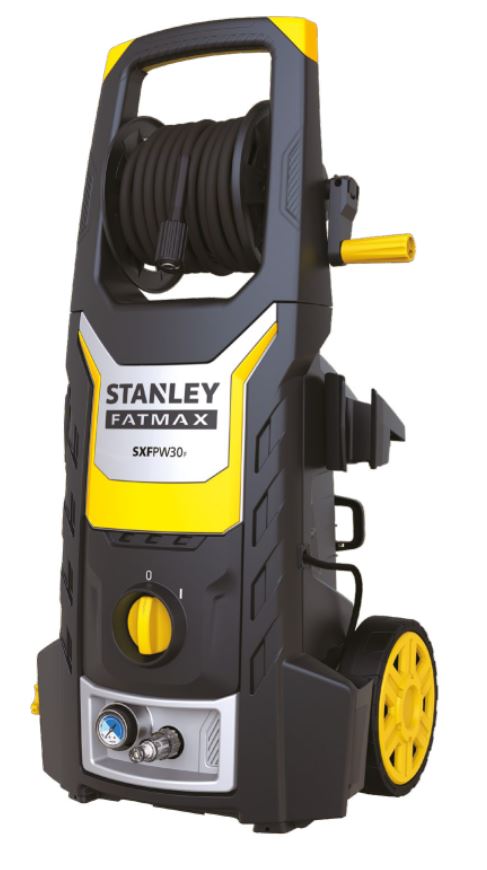

MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
[SXFPW30F-E Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW30F-E Type 1
Click pentru a mari

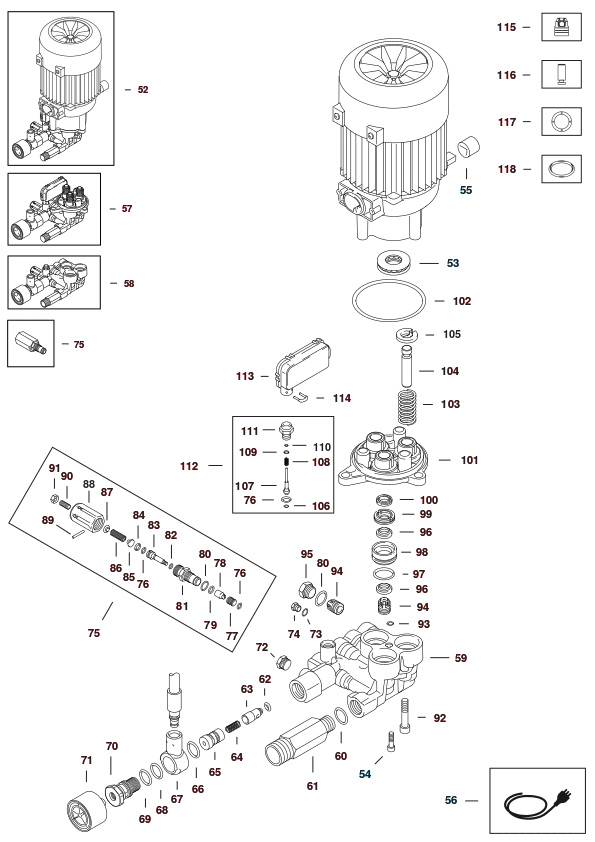

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE UPPER (4381020) 13697 RON
2 1 1 5140205-26 - Indisponibil
3 1 25 SCREW (50943) 1630 RON
4 1 1 GUARD (4381943) 11337 RON
5 1 1 GUARD (4381951) 3954 RON
6 1 1 GUARD (4381961) 9012 RON
7 1 1 SCREW (4582300) 668 RON
8 1 1 KNOB (4381362) 114 RON
9 1 1 GUARD (4381681) 9012 RON
10 1 2 SCREW (5460810) 668 RON
11 1 1 CASING (5140205-03) 21676 RON
12 1 2 SCREW (3085940) 668 RON
13 1 1 X94ND (1004455-07) 114 RON
14 1 1 KNOB (4240530) 4355 RON
15 1 1 KNOB (4381221) 4827 RON
16 1 1 BRACKET (4383280) 2556 RON
17 1 1 5140205-20 - Indisponibil
18 1 1 CARRIER (4383110) 1630 RON
19 1 1 GUARD (4383100) 1630 RON
20 1 1 CARRIER (5140205-81) 11337 RON
21 1 2 FOOT (1004712-16) 3268 RON
22 1 1 5140205-17 - Indisponibil
23 1 1 PLUG (4383090) 1630 RON
24 1 1 5140205-14 - Indisponibil
25 1 2 SCREW (5460700) 668 RON
26 1 1 5140205-08 - Indisponibil
27 1 1 5140205-09 - Indisponibil
28 1 1 SUPPORT (4381150) 1318 RON
29 1 2 SCREW (5480500) 668 RON
30 1 4 WASHER (4581960) 668 RON
31 1 4 SCREW (4582010) 668 RON
32 1 2 SCREW (3086090) 668 RON
33 1 2 AXLE (4384890) 5370 RON
34 1 2 WHEEL (4381100) 18568 RON
35 1 2 PIN (4980160) 944 RON
36 1 2 5140205-18 - Indisponibil
37 1 1 BRACKET (5140205-12) 1772 RON
38 1 1 FORK (5140205-32) 1630 RON
39 1 1 FITTING (5140205-33) 15469 RON
40 1 1 O RING (4382530) 668 RON
41 1 1 FITTING (5140205-35) 15469 RON
42 1 1 FORK (5140205-34) 668 RON
43 1 2 O RING (4382520) 668 RON
44 1 1 HOSE (4581060) 18568 RON
45 1 1 FORK (4240270) 3954 RON
46 1 2 PLATE (4101040) 13697 RON
47 1 1 5140205-31 - Indisponibil
48 1 1 HUB PIN (5140205-25) 4355 RON
49 1 1 LEVER (4101660) 3268 RON
50 1 1 SCREW (4581980) 668 RON
51 1 1 KNOB (5160174) 2182 RON
52 1 1 PUMP SA (4580140) 462423 RON
53 1 1 BEARING (1004744-74) 741 RON
54 1 4 SCREW (2900500) 2182 RON
55 1 4 RUBBER FOOT (5140205-06) 2556 RON
56 1 1 CORDSET (4240690) 20216 RON
57 1 1 PUMP SA (47056) 188451 RON
58 1 1 HEAD SA (47055) 161583 RON
59 1 1 HEAD (3401220) 63720 RON
60 1 1 O-RING 14x1,78 HW131 (740290) 446 RON
61 1 1 COUPLING (3401000) 10241 RON
62 1 1 O RING (1460431) 668 RON
63 1 1 Shutter HW151 (2901070) 2124 RON
64 1 1 SPRING (3780450) 668 RON
65 1 1 VALVE (3401100) 4355 RON
66 1 1 O RING (2840890) 668 RON
67 1 1 COUPLING (3960430) 16689 RON
68 1 1 O RING (3961100) 668 RON
69 1 1 O RING (1200690) 668 RON
70 1 1 PLUG (3960440) 12361 RON
71 1 1 PRESSURE GAUGE (43456) 18568 RON
72 1 1 Plug (620301) 1788 RON
73 1 1 O RING (1682800) 668 RON
74 1 1 PLUG (3720730) 741 RON
75 1 1 VALVE KIT (42709) 24962 RON
76 1 3 O-RING 7,66x1,78 (600180) 446 RON
77 1 1 SEAT (2901270) 9012 RON
78 1 1 Piston HW151 (1460151) 1232 RON
79 1 1 O RING (770140) 668 RON
80 1 4 O RING (2841520) 668 RON
81 1 1 Piston guide HW151 (1344870) 17112 RON
82 1 1 O-RING 2,90x1,78 (1080190) 446 RON
83 1 1 Upper piston cod vechi 1460140 Piston HW151 (2021900) 8276 RON
84 1 1 INEL DE SIGURANTA HW131 (1080401) 670 RON
85 1 1 ARC LAMELAR HW131 (1343450) 2123 RON
86 1 1 ARC HW131 (1460190) 2012 RON
87 1 1 Wobble plate HW151 (1980220) 105 RON
88 1 1 Insert HW151 (1344881) 16776 RON
89 1 1 PIN (1080070) 114 RON
90 1 1 SCREW (1980470) 668 RON
91 1 1 Nut M6 (1060120) 446 RON
92 1 3 SCREW (800220) 2182 RON
93 1 3 PLUG (3400650) 1318 RON
94 1 6 VALVE (2849051) 10241 RON
95 1 3 PLUG (2841530) 3268 RON
96 1 6 GASKET (3800140) 1772 RON
97 1 3 O RING (4140510) 668 RON
98 1 3 BUSHING (4140490) 24962 RON
99 1 3 BUSHING (3800170) 2182 RON
100 1 3 RING (3800111) 2182 RON
101 1 1 HEAD (3401110) 13697 RON
102 1 1 O RING (3040270) 668 RON
103 1 3 SPRING (2901170) 1630 RON
104 1 3 PISTON (3800080) 6688 RON
105 1 3 RING (3800400) 3954 RON
106 1 1 O-ring HW151 (1120680) 446 RON
107 1 1 Pin HW151 (2022040) 3578 RON
108 1 1 Spring HW151 (2021630) 781 RON
109 1 1 Washer HW151 (2021650) 669 RON
110 1 1 O RING (1260821) 944 RON
111 1 1 Fitting HW151 (1344830) 2683 RON
112 1 1 TSS kit HW151 (42580) 5815 RON
113 1 1 BOX-TSS box assembly (46073) 18568 RON
114 1 2 FORK (2022201) 1630 RON
115 1 1 VALVE KIT (2233) 9012 RON
117 1 1 SEALS KIT-OIL SEAL KIT (47510) 741 RON
118 1 1 O RING KIT-GASKET KIT O-RING (47513) 13697 RON
119 1 1 MOTOR SA (4381930) 308517 RON
120 1 1 000000-99 - Indisponibil
121 1 1 4380400 - Indisponibil
122 1 1 BEARING (1460590) 4827 RON
123 1 1 SHIELD (4380410) 16689 RON
124 1 4 WASHER (2020990) 668 RON
125 1 4 WASHER (5580220) 2556 RON
126 1 4 SCREW (2320090) 82 RON
127 1 1 FAN (5140205-50) 944 RON
128 1 1 RING (5140205-51) 668 RON
129 1 1 FAN COVER (4380820) 10241 RON
130 1 2 SCREW (1460460) 668 RON
131 1 1 PLATE-WOBBLE (4580150) 9012 RON
132 1 1 WASHER (5140205-41) 668 RON
133 1 1 SCREW (5140205-48) 668 RON
134 1 1 O RING (660170) 668 RON
135 1 1 BOX (4380830) 3268 RON
136 1 1 GLAND (1462900) 82 RON
137 1 2 GHIDAJ HW130 (2021480) 2235 RON
138 1 2 Screw M4x12 (2020570) 670 RON
139 1 1 SWITCH (4382540) 9012 RON
140 1 1 O-RING 5x2 (390341) 446 RON
141 1 1 O RING (2180670) 1772 RON
142 1 1 COVER (4380840) 3268 RON
143 1 1 CAPACITOR (3401010) 40734 RON
144 1 1 000000-99 - Indisponibil
145 1 1 O RING (2320640) 668 RON
146 1 1 000000-99 - Indisponibil
147 1 1 Washer 4 (1262400) 21362 RON
148 1 1 SCREW (2021090) 668 RON
801 1 1 HANDLE (5160231) 20216 RON
802 1 2 O-RING (5140193-41) 668 RON
803 1 1 EXTENSION (5520440) 21676 RON
804 1 1 LANCE HEAD-ROTOPOWER (5520530) 18568 RON
805 1 1 LANCE HEAD-ADJUSTABLE JET (4581730) 13697 RON
806 1 1 TANK (4580981) 18568 RON
807 1 1 O-RING (5140205-58) 114 RON
808 1 1 HIGH PRESSURE HOSE (5140205-56) 249223 RON
809 1 1 COUPLING SA (1004712-93) 3954 RON
