Top » Piese de schimb » Piese Stanley » SXFPW26MP-E Type 1

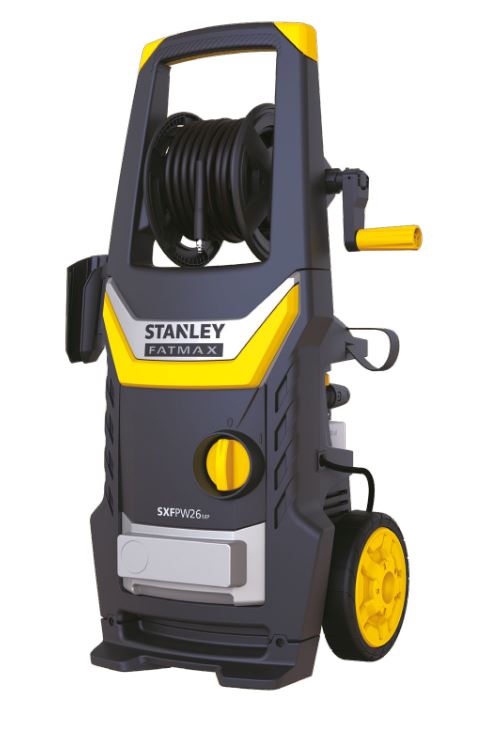

MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW26MP-E Type 1
[SXFPW26MP-E Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW26MP-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW26MP-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW26MP-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW26MP-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW26MP-E Type 1
Click pentru a mari

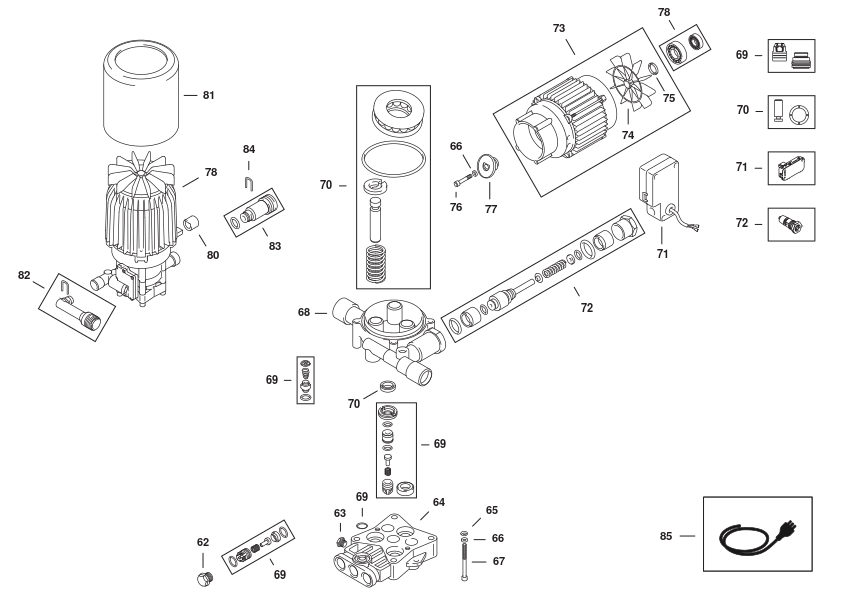

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE (4380641) 10241 RON
2 1 1 KNOB (5140205-86) 2556 RON
3 1 21 SCREW (50943) 1630 RON
4 1 1 GUARD (4381332) 9012 RON
5 1 1 GUARD (4381862) 10241 RON
6 1 1 GUARD (4381872) 2556 RON
7 1 4 SCREW (3085940) 668 RON
8 1 1 KNOB (4381362) 114 RON
9 1 1 GUARD (4384551) 6688 RON
10 1 6 SCREW (5460810) 668 RON
11 1 6 SCREW (4582020) 668 RON
12 1 1 CASING (5140205-71) 11337 RON
13 1 1 FOOT (5140205-83) 9012 RON
14 1 1 X94ND (1004455-07) 114 RON
15 1 1 GUARD (4381881) 3268 RON
16 1 1 GUARD (5140205-72) 2182 RON
17 1 1 BASE (4380492) 16689 RON
18 1 1 CARRIER (4380540) 9012 RON
19 1 2 FOOT (1004712-16) 3268 RON
20 1 1 CARRIER (5140205-76) 944 RON
21 1 1 SUPPORT (4383400) 3954 RON
22 1 1 CARRIER (4580590) 5370 RON
23 1 2 WASHER (4581960) 668 RON
24 1 2 SCREW (4582010) 668 RON
25 1 2 FITTING (5160100) 1630 RON
26 1 2 WHEEL (5160360) 32327 RON
27 1 2 PIN (5160110) 18568 RON
28 1 2 GUARD (5160071) 3954 RON
29 1 2 WASHER (5160340) 82 RON
30 1 2 PIN (5160330) 1318 RON
31 1 1 GUARD (4384560) 4827 RON
32 1 2 RING (4101710) 1772 RON
33 1 2 RING (4200060) 944 RON
34 1 2 O RING (5460660) 668 RON
35 1 1 FITTING (4101761) 10241 RON
36 1 2 FORK (5140205-34) 668 RON
37 1 1 FITTING (4582180) 15469 RON
38 1 1 O RING (4581970) 668 RON
39 1 1 SCREW (4580450) 668 RON
40 1 1 PLATE (4384580) 6688 RON
41 1 2 SUPPORT (4102120) 3954 RON
42 1 1 PLATE (4384870) 6688 RON
43 1 1 BRACKET (4384570) 4827 RON
45 1 1 LEVER (4101660) 3268 RON
46 1 1 SCREW (4581980) 668 RON
47 1 1 SCREW (5460700) 668 RON
48 1 1 KNOB (5160174) 2182 RON
49 1 1 O RING (4382520) 668 RON
50 1 1 O-RING (5140205-58) 114 RON
51 1 1 HOSE (4384860) 13697 RON
52 1 1 COVER (3086150) 1772 RON
53 1 1 PIN (3086330) 114 RON
54 1 1 SWITCH SA (1004700-67) 741 RON
55 1 1 BOX (3086140) 1772 RON
56 1 1 BOX (5140205-05) 11337 RON
57 1 6 SCREW (5480500) 668 RON
58 1 1 VALVE-G1/4 T16,5 (4101070) 11337 RON
59 1 1 CAPACITOR (3400760) 16689 RON
60 1 1 CONNECTOR (5140205-78) 82 RON
61 1 1 SCREW KIT (4384980) 6688 RON
62 1 3 PLUG (5140205-37) 3954 RON
63 1 1 SCREW (5140205-38) 668 RON
64 1 1 HEAD (5140205-39) 9012 RON
65 1 4 WASHER (5140205-40) 668 RON
66 1 5 WASHER (5140205-41) 668 RON
67 1 4 SCREW (5140205-42) 944 RON
68 1 1 5140205-43 - Indisponibil
69 1 1 VALVE (4222380) 10241 RON
70 1 1 PISTONS & SEALS KIT (4383020) 16689 RON
71 1 1 KIT (4384430) 10241 RON
72 1 1 VALVE KIT-TSS (4384300) 13697 RON
73 1 1 MOTOR (4223520) 161583 RON
74 1 1 FAN (5460680) 2556 RON
75 1 1 RING (5140205-51) 668 RON
76 1 1 SCREW (5140205-48) 668 RON
77 1 1 5140205-49 - Indisponibil
78 1 1 BEARING-KIT (43056) 16689 RON
79 1 1 PUMP SA (4384780) 200340 RON
80 1 2 RUBBER FOOT (5140205-06) 2556 RON
81 1 1 FAN COVER (5460690) 5370 RON
82 1 1 FITTING-FITTING KIT (5480660) 10241 RON
83 1 1 SUCTION GROUP (1004512-17) 4137 RON
84 1 1 FORK (1004512-19) 4137 RON
85 1 1 CORDSET (4240690) 20216 RON
101 1 1 HANDLE SA (4381480) 18568 RON
102 1 4 O-RING (5140193-41) 668 RON
103 1 1 EXTENSION (5140205-97) 13697 RON
104 1 3 O-RING (5140206-02) 668 RON
105 1 1 LANCE HEAD-ROTOPOWER (4580440) 9012 RON
106 1 1 HEAD SA (4381810) 9012 RON
107 1 1 EXTENSION (5000640) 18568 RON
108 1 1 TOOL FLOOR-AQUASWEEPER (4300412) 36994 RON
109 1 1 ADAPTOR (1004512-28) 4137 RON
110 1 1 BRUSH (1004455-56) 9012 RON
111 1 1 HOSE (4384381) 11337 RON
112 1 1 O-RING (5140193-42) 668 RON
113 1 2 HOSE (4384730) 60451 RON
114 1 1 COUPLING SA (1004712-93) 3954 RON
