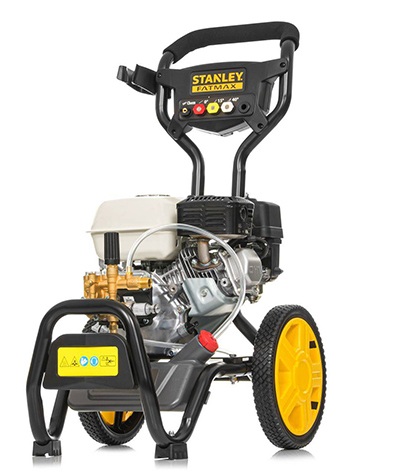

MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
[SXFPW240THO Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW240THO Type 1
Click pentru a mari

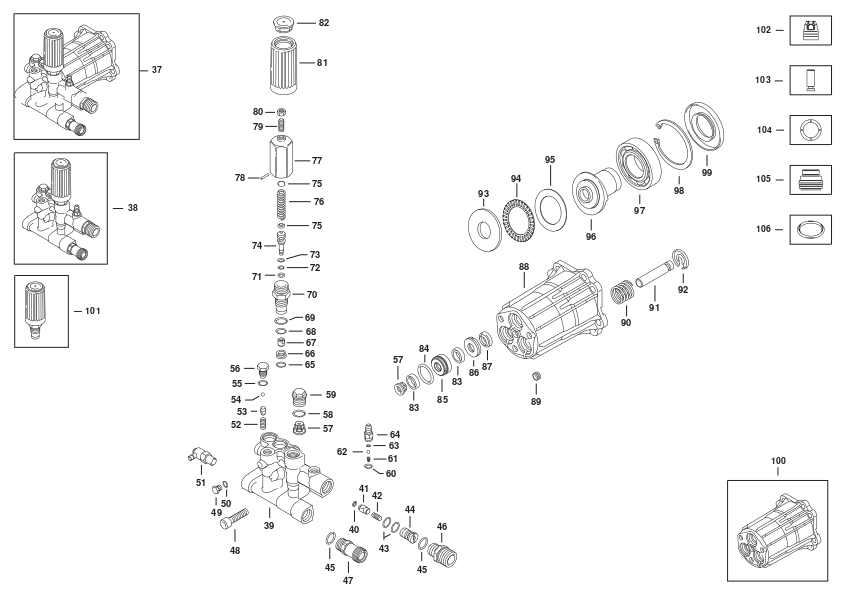

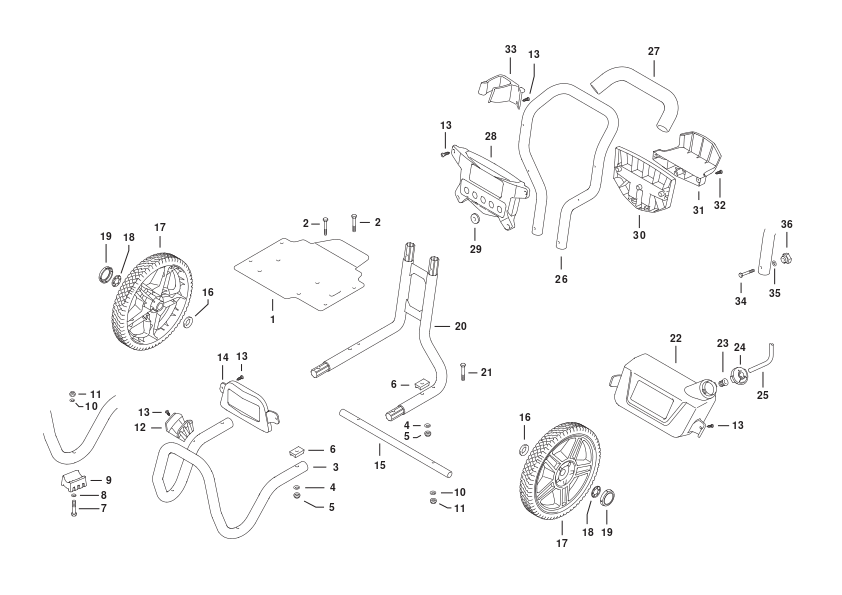

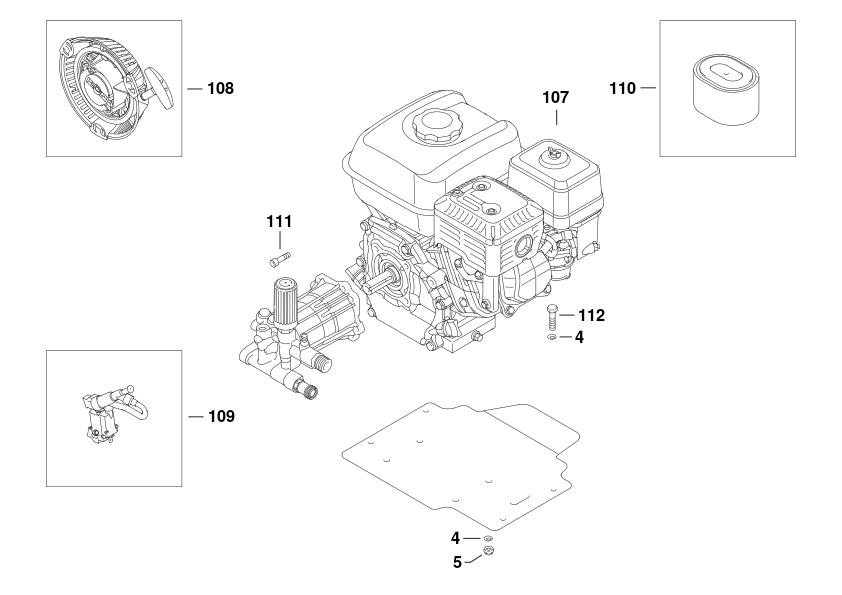

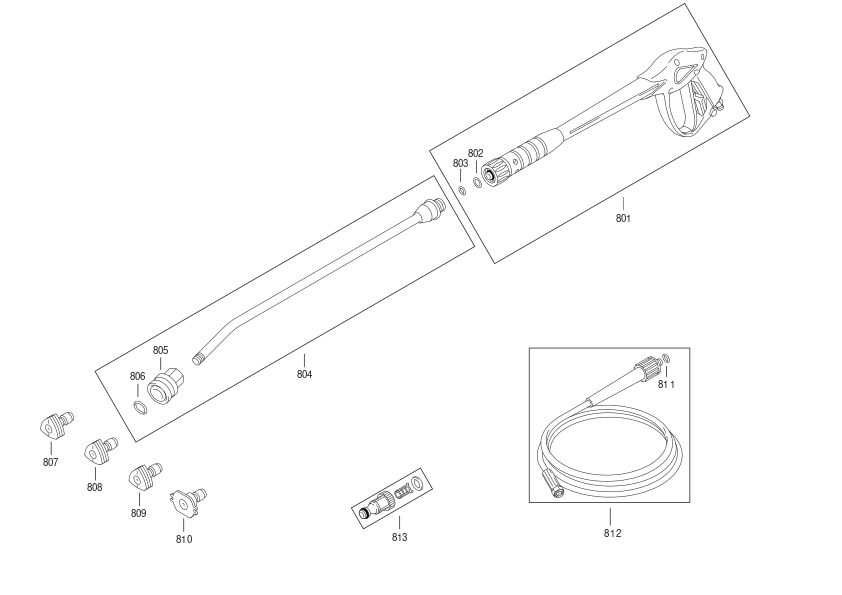

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SUPPORT (4000031) 78485 RON
2 1 4 SCREW (1004784-69) 1630 RON
3 1 1 FRAME SA (4000051) 104961 RON
4 1 12 WASHER (1004709-70) 668 RON
5 1 8 NUT (1004709-57) 1630 RON
6 1 4 SPACER (1004784-80) 1630 RON
7 1 2 SCREW (1004784-83) 82 RON
8 1 2 WASHER (3163290) 668 RON
9 1 2 BASE (4000401) 3954 RON
10 1 4 WASHER (1004784-82) 944 RON
11 1 2 NUT (3000170) 668 RON
12 1 1 CARRIER (1004784-84) 18568 RON
13 1 11 SCREW (1004712-12) 668 RON
14 1 1 GUARD (4000186) 16689 RON
15 1 1 AXLE (4000121) 15469 RON
16 1 2 WASHER (380620) 82 RON
17 1 2 WHEEL (1004784-68) 18568 RON
18 1 2 SPACER (4000780) 4355 RON
19 1 2 COVER (4000600) 21676 RON
20 1 1 FRAME SA (1004784-78) 125542 RON
21 1 2 SCREW (1004784-79) 668 RON
22 1 1 TANK (4000161) 13697 RON
23 1 1 FILTER (1004784-86) 1630 RON
24 1 1 CAP (4000751) 1318 RON
25 1 1 HOSE (1004710-70) 2556 RON
26 1 1 HANDLE (1004784-75) 96047 RON
27 1 1 HANDLE (4000770) 741 RON
28 1 1 SUPPORT (4000226) 21676 RON
29 1 5 HOLDER (1004784-74) 1630 RON
30 1 1 GUARD (4000236) 24962 RON
31 1 1 CARRIER SA (4000266) 20216 RON
32 1 3 SURUB 5X16 HW131 (2100300) 446 RON
33 1 1 CARRIER (1004784-70) 21676 RON
34 1 2 SCREW (1004784-76) 668 RON
35 1 2 WASHER (1004784-77) 668 RON
36 1 2 KNOB (1004774-14) 3954 RON
37 1 1 PUMP SA (1004785-27) 228616 RON
38 1 1 HEAD SA (43185) 139195 RON
39 1 1 HEAD SA (2841620) 188451 RON
40 1 1 O RING (1460431) 668 RON
41 1 1 VALVE (1004785-05) 3954 RON
42 1 1 SPRING (1004785-06) 668 RON
43 1 2 O RING (1004710-00) 668 RON
45 1 2 O RING (2840890) 668 RON
46 1 1 COUPLING (1004785-33) 36994 RON
47 1 1 FITTING (1004785-03) 35435 RON
48 1 3 SCREW (800220) 2182 RON
49 1 1 Washer HW151 (480650) 446 RON
50 1 1 PLUG (2840840) 4355 RON
51 1 1 VALVE (2761580) 10241 RON
52 1 1 SPRING (2840450) 1318 RON
53 1 1 VALVE SEAT (2840441) 1318 RON
54 1 1 BALL (1060100) 668 RON
55 1 1 O-RING 7,66x1,78 (600180) 446 RON
56 1 1 SCREW (2840830) 3268 RON
59 1 3 PLUG (2841530) 3268 RON
61 1 1 SPRING (1004711-70) 668 RON
62 1 1 BALL (1004710-50) 668 RON
63 1 1 O RING (1004709-78) 668 RON
65 1 1 O RING (1004711-57) 668 RON
66 1 1 SEAT (2841080) 1772 RON
67 1 1 SHUTTER (1004784-94) 741 RON
68 1 1 O-RING 10,82x1,78 HW130/131 (820510) 670 RON
69 1 1 O-RING 14x1,78 HW131 (740290) 446 RON
70 1 1 GUIDE (2840960) 20216 RON
71 1 1 RING (1004712-52) 1318 RON
72 1 1 O RING (1004709-88) 668 RON
73 1 1 O RING (1004712-21) 944 RON
74 1 1 PISTON (1004784-92) 741 RON
75 1 2 Wobble plate HW151 (1980220) 105 RON
76 1 1 SPRING (1004712-59) 2556 RON
77 1 1 INSERT (1980390) 20216 RON
78 1 1 PIN (1080070) 114 RON
79 1 1 SCREW (1004712-72) 668 RON
80 1 1 Nut M6 (1060120) 446 RON
81 1 1 KNOB (1981780) 3954 RON
82 1 1 PLUG (1981770) 1630 RON
83 1 6 SEAL (1004712-18) 944 RON
84 1 3 O RING (770590) 668 RON
85 1 3 BUSHING (2840550) 11337 RON
86 1 3 BUSHING (1004712-68) 1630 RON
87 1 3 GARNITURA HW130 (1683500) 1564 RON
88 1 1 BODY (2840231) 63720 RON
89 1 1 PLUG (3400650) 1318 RON
90 1 3 SPRING (1004785-08) 668 RON
91 1 3 PISTON (2840530) 5370 RON
92 1 3 LOCK (2840050) 668 RON
93 1 1 WHEEL (1004785-10) 10241 RON
94 1 1 WHEEL (1004785-11) 6688 RON
95 1 1 WHEEL (1004785-12) 2556 RON
96 1 1 PLATE (1004785-38) 49827 RON
97 1 1 BEARING (1004785-14) 18568 RON
98 1 1 RING (1004785-15) 1318 RON
99 1 1 RING (1004785-41) 2796 RON
100 1 1 PUMP (26925) 57833 RON
101 1 1 VALVE KIT (43898) 23244 RON
102 1 1 VALVE KIT (42949) 24962 RON
103 1 1 PISTON KIT (1004785-46) 40734 RON
104 1 1 SEAL SA (1004785-47) 15469 RON
105 1 1 SEALS KIT (1004785-48) 15469 RON
106 1 1 GASKET SET (1004785-49) 9012 RON
107 1 1 MOTOR SA (1004785-43) 298623 RON
108 1 1 STARTER SA (51796) 73079 RON
109 1 1 IGNITION COIL (51803) 176482 RON
110 1 1 FILTER (51795) 104961 RON
111 1 4 SCREW (1004709-83) 1318 RON
112 1 4 SCREW (621780) 1933 RON
801 1 1 HANDLE (1004785-20) 30769 RON
802 1 1 RING (1080640) 82 RON
803 1 1 O RING (1004709-73) 668 RON
804 1 1 EXTENSION (1004785-21) 18568 RON
806 1 1 O RING (391002) 668 RON
807 1 1 NOZZLE (1004785-51) 24962 RON
808 1 1 NOZZLE (1004785-52) 24962 RON
809 1 1 NOZZLE (1004785-53) 24962 RON
810 1 1 NOZZLE (1004785-26) 10241 RON
811 1 1 O RING (1004712-02) 1318 RON
812 1 1 HOSE (3780494) 36994 RON
