Top » Piese de schimb » Piese Stanley » SXFPW210THO Type 1

MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW210THO Type 1
[SXFPW210THO Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW210THO Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW210THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW210THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW210THO Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW210THO Type 1
Click pentru a mari

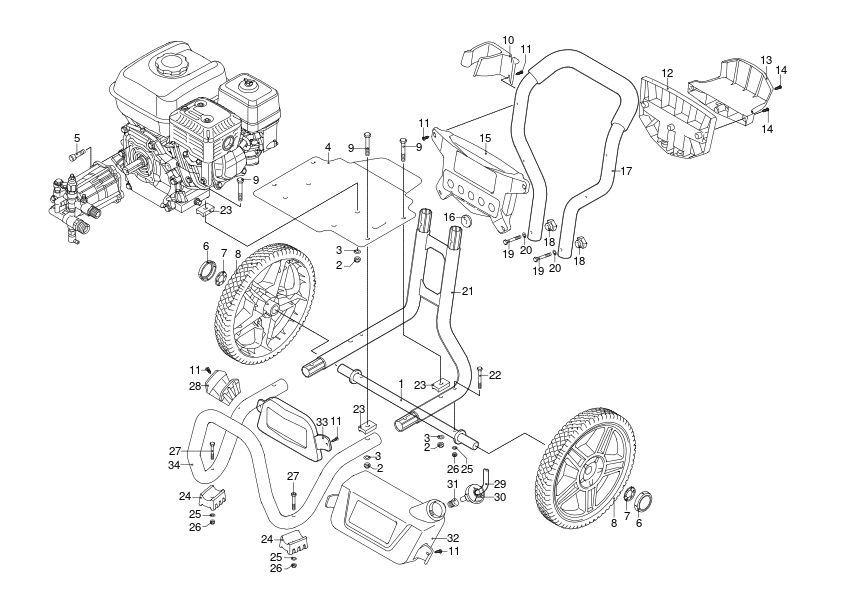

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 8 NUT (1004709-57) 1630 RON
3 1 8 WASHER (1004709-70) 668 RON
4 1 1 SUPPORT (4000031) 78485 RON
5 1 4 SCREW (180432) 82 RON
6 1 2 COVER (4000600) 21676 RON
7 1 2 WASHER (380620) 82 RON
8 1 2 WHEEL (1004784-68) 18568 RON
9 1 4 SCREW (621780) 1933 RON
10 1 1 CARRIER (1004784-70) 21676 RON
11 1 8 SCREW (1004712-12) 668 RON
12 1 1 GUARD (4000236) 24962 RON
13 1 1 CARRIER SA (4000266) 20216 RON
14 1 3 SCREW (1004712-13) 668 RON
15 1 1 SUPPORT (4000226) 21676 RON
16 1 5 HOLDER (1004784-74) 1630 RON
17 1 1 HANDLE (1004784-75) 96047 RON
18 1 2 KNOB (1004774-14) 3954 RON
19 1 2 SCREW (1004784-76) 668 RON
20 1 2 WASHER (1004784-77) 668 RON
21 1 1 FRAME SA (1004784-78) 125542 RON
22 1 2 SCREW (1004784-79) 668 RON
23 1 8 SPACER (1004784-80) 1630 RON
24 1 2 BASE (1004784-90) 4355 RON
25 1 4 WASHER (1004784-82) 944 RON
26 1 4 NUT (3000170) 668 RON
27 1 2 SCREW (1004784-83) 82 RON
28 1 1 CARRIER (1004784-84) 18568 RON
29 1 1 HOSE (1004710-70) 2556 RON
30 1 1 PLUG (1004784-85) 10241 RON
31 1 1 FILTER (1004784-86) 1630 RON
32 1 1 TANK (1004784-87) 32327 RON
33 1 1 GUARD (4000186) 16689 RON
34 1 1 FRAME SA (4000051) 104961 RON
35 1 3 SCREW (1004709-97) 944 RON
36 1 1 HEAD SA (2841620) 188451 RON
37 1 1 PLUG (1981770) 1630 RON
38 1 1 KNOB (1981780) 3954 RON
39 1 1 PIN (1004710-36) 114 RON
40 1 3 SCREW (1004712-70) 1630 RON
41 1 1 O RING (1004709-81) 668 RON
42 1 3 PLUG (1004712-73) 3268 RON
43 1 3 O RING (1004709-90) 668 RON
44 1 6 2849050 - Indisponibil
44 1 6 VALVE (2849051) 10241 RON
45 1 1 O RING (1004711-57) 668 RON
46 1 1 SEAT (1004784-95) 3954 RON
47 1 1 SHUTTER (1004784-94) 741 RON
48 1 1 O RING (1004710-05) 668 RON
49 1 1 GUIDE (2840960) 20216 RON
50 1 1 RING (1004712-52) 1318 RON
51 1 1 O RING (1004709-88) 668 RON
52 1 1 O RING (1004712-21) 944 RON
53 1 1 PISTON (1004784-92) 741 RON
54 1 1 NUT (1004710-34) 668 RON
55 1 1 SCREW (1004709-74) 668 RON
56 1 1 INSERT (1980390) 20216 RON
57 1 2 PLATE (1004711-87) 668 RON
58 1 1 SPRING (1004712-59) 2556 RON
59 1 6 SEAL (1004712-18) 944 RON
60 1 2 O RING (1004712-71) 668 RON
61 1 3 BUSHING (1004712-68) 1630 RON
61 1 3 2840540 - Indisponibil
62 1 1 FITTING (2900100) 42426 RON
63 1 3 SEAL (1004711-74) 114 RON
64 1 1 BODY (2840231) 63720 RON
65 1 1 PUMP SA (1004785-27) 228616 RON
66 1 1 PLUG (1004785-28) 3268 RON
67 1 1 O RING (1004709-78) 668 RON
68 1 1 COUPLING (1004785-29) 1318 RON
69 1 1 BALL (1004710-50) 668 RON
70 1 1 SPRING (1004711-70) 668 RON
71 1 1 O RING (1004711-50) 668 RON
72 1 1 SHUTTER (1004785-30) 1318 RON
73 1 1 SPRING (1004785-31) 3268 RON
74 1 2 O RING (1004710-00) 668 RON
75 1 1 VALVE (1004785-32) 10241 RON
76 1 1 COUPLING (1004785-33) 36994 RON
77 1 1 COUPLING (1004785-34) 3954 RON
78 1 1 FILTER (1004785-35) 3954 RON
79 1 3 O RING (2841520) 668 RON
80 1 1 VALVE (1004785-18) 12361 RON
81 1 1 PLUG (1004785-36) 1318 RON
82 1 3 SPRING (1004785-08) 668 RON
83 1 3 PISTON (1004785-37) 4827 RON
84 1 3 LOCK (1004712-64) 668 RON
85 1 1 WHEEL (1004785-10) 10241 RON
86 1 1 WHEEL (1004785-11) 6688 RON
87 1 1 WHEEL (1004785-12) 2556 RON
88 1 1 PLATE (1004785-38) 49827 RON
89 1 1 BEARING (1004785-39) 18568 RON
90 1 1 O RING (1004785-40) 944 RON
91 1 1 RING (1004785-41) 2796 RON
92 1 1 1004785-42 - Indisponibil
92 1 1 HEAD SA (43185) 139195 RON
93 1 1 MOTOR SA (1004785-43) 298623 RON
94 1 1 KEY (1004785-44) 2556 RON
95 1 1 VALVE KIT (1004785-45) 32327 RON
96 1 1 PISTON KIT (1004785-46) 40734 RON
97 1 1 SEAL SA (1004785-47) 15469 RON
98 1 1 SEALS KIT (1004785-48) 15469 RON
99 1 1 GASKET SET (1004785-49) 9012 RON
100 1 1 HANDLE (1004785-20) 30769 RON
101 1 1 O RING (1004709-73) 668 RON
102 1 1 EXTENSION (1004785-21) 18568 RON
103 1 1 HOSE SA, REINFORCED (1004785-50) 51127 RON
104 1 1 O RING (1004712-02) 1318 RON
105 1 1 NOZZLE (1004785-51) 24962 RON
106 1 1 NOZZLE (1004785-52) 24962 RON
107 1 1 NOZZLE (1004785-53) 24962 RON
108 1 1 NOZZLE (1004785-26) 10241 RON
