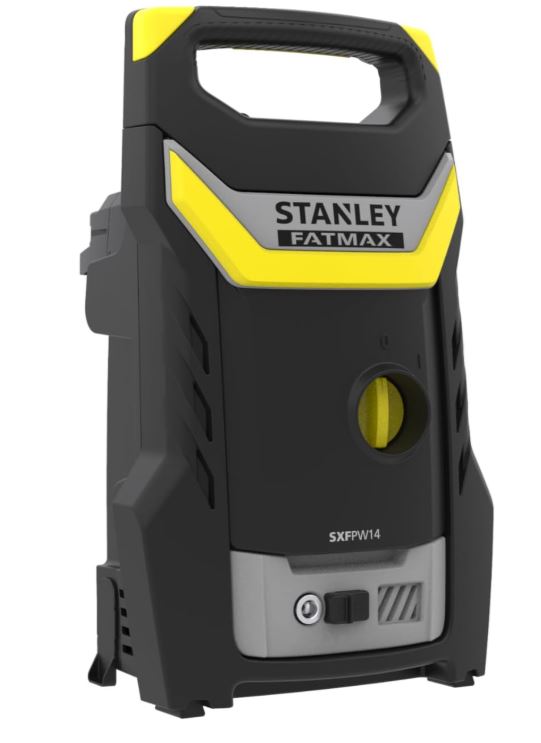

MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW14-E Type 1
[SXFPW14-E Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW14-E Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW14-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW14-E Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SXFPW14-E Type 1
Click pentru a mari

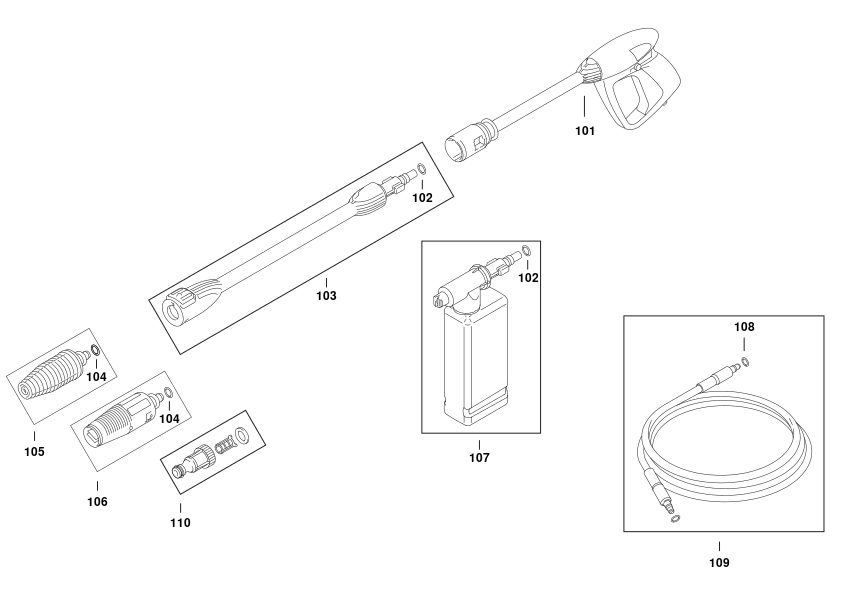

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE (4380920) 6688 RON
2 1 1 KNOB (4381300) 6688 RON
3 1 14 SCREW (50943) 1630 RON
4 1 1 COVER (4380940) 9012 RON
5 1 1 COVER (4380950) 9012 RON
6 1 1 GUARD (4380911) 9012 RON
7 1 1 GUARD (4384530) 741 RON
8 1 1 GUARD (4384540) 2556 RON
9 1 14 SCREW (3085940) 668 RON
10 1 1 KNOB (4380255) 114 RON
11 1 1 GUARD (4380881) 6688 RON
12 1 1 BUTTON-PUSH-BUTTON (4380397) 114 RON
13 1 1 CASING (4380900) 15469 RON
14 1 2 SCREW (5460810) 668 RON
15 1 1 X94ND (1004455-07) 114 RON
16 1 2 SUPPORT (4560251) 1630 RON
17 1 1 BASE (4380201) 18568 RON
18 1 1 CARRIER (5140205-21) 9012 RON
19 1 1 CARRIER (5140205-76) 944 RON
20 1 2 PLUG (4380261) 668 RON
21 1 1 SCREW KIT (4384920) 3954 RON
22 1 1 PUMP SA-ELECTRIC PUMP ASSEMBLY (4384600) 73079 RON
23 1 1 GUARD (4380180) 2182 RON
24 1 1 CONVEYOR (4380170) 6688 RON
25 1 1 SHIM (4720590) 944 RON
26 1 1 CONVEYOR (4380160) 741 RON
27 1 1 SWITCH SA (1004700-67) 741 RON
28 1 1 PIN (1004700-66) 668 RON
29 1 1 3980130 - Indisponibil
30 1 1 CAPACITOR KIT (3086010) 10241 RON
31 1 1 COUPLING (4383200) 15469 RON
32 1 1 FORK (1004512-08) 4137 RON
33 1 1 SUCTION GROUP (1004512-17) 4137 RON
34 1 1 FORK (1004512-19) 4137 RON
35 1 1 INDUCTOR (5480770) 4827 RON
36 1 1 Cable (Schuko plug) (50940) 7381 RON
37 1 1 VALVE AND SEAL KIT (5140126-09) 15469 RON
38 1 1 PISTONS & SEALS KIT (1004512-11) 12861 RON
39 1 1 KIT-TSS KIT (4384400) 9012 RON
40 1 1 BRUSH PAIR (3480570) 5370 RON
41 1 1 VALVE (4384370) 741 RON
101 1 1 HANDLE (3084962) 13697 RON
102 1 2 O-RING (5140193-41) 668 RON
103 1 1 EXTENSION (4102583) 9012 RON
104 1 2 O-RING (5140206-02) 668 RON
105 1 1 LANCE HEAD (5140205-98) 13697 RON
106 1 1 HEAD SA (4381820) 10241 RON
107 1 1 TANK (5140206-00) 4355 RON
108 1 2 O-RING (5140193-42) 668 RON
109 1 1 HOSE (4384050) 18568 RON
110 1 1 COUPLING SA (1004712-93) 3954 RON
