Top » Piese de schimb » Piese Stanley » SFMCPW1500B Type 1

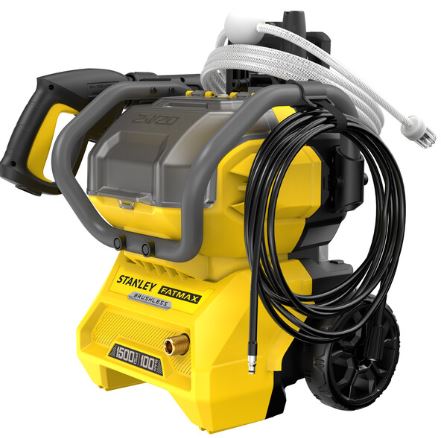

MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPW1500B Type 1
[SFMCPW1500B Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPW1500B Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPW1500B Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPW1500B Type 1
Click pentru a mari

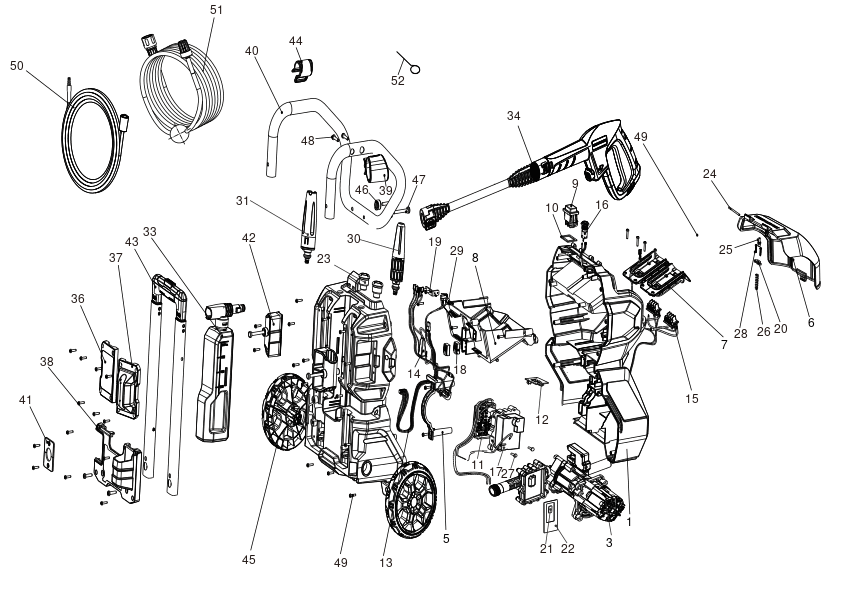

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA225892) 32327 RON
3 1 1 MOTOR PUMP SA (NA365644) 188451 RON
5 1 1 STRAP (NA130428) 1630 RON
6 1 1 DOOR (NA173312) 13697 RON
7 1 1 HOUSING (N825133) 1318 RON
8 1 1 HOUSING REAR (NA122204) 4355 RON
9 1 1 SWITCH (NA180048) 10241 RON
10 1 1 GASKET (NA153152) 588 RON
11 1 1 MODULE (NA366001) 49827 RON
12 1 1 PCB SA (NA131334) 9012 RON
13 1 1 WIRE HARNESS (NA148923) 13697 RON
14 1 1 SWITCH SA (NA148924) 4355 RON
15 1 1 TERMINAL SA (NA148572) 12361 RON
16 1 1 SWITCH (NA156844) 13697 RON
17 1 1 COVER (NA157013) 1318 RON
18 1 2 CONNECTOR (N840419) 2796 RON
19 1 1 BRACKET (NA149863) 668 RON
20 1 1 CLAMP (NA175630) 588 RON
21 1 1 PAD (NA159413) 588 RON
22 1 1 PAD (NA159423) 82 RON
23 1 1 NOZZLE (N935285) 668 RON
24 1 2 ROLLER SPINDLE (330041-61) 781 RON
25 1 1 PIN (NA175629) 588 RON
26 1 1 SPRING (NA174103) 588 RON
27 1 4 SCREW (90500654) 558 RON
28 1 2 SCREW (90614124) 588 RON
29 1 2 SCREW-M2.2 X 12 (N857589) 588 RON
30 1 1 NOZZLE (N925061) 5370 RON
31 1 1 NOZZLE (NA226091) 6688 RON
33 1 1 BOTTLE (NA226081) 741 RON
34 1 1 EXTENSION (NA226084) 15469 RON
36 1 1 PLATE LH (NA149245) 114 RON
37 1 1 PLATE RH (NA202170) 4355 RON
38 1 1 BOTTOM PLATE (NA173738) 2796 RON
39 1 1 HOLDER (NA202172) 4355 RON
40 1 1 HANDLE (NA116055) 15469 RON
41 1 1 COLLAR (NA152367) 588 RON
42 1 1 HOLDER (NA157174) 2556 RON
43 1 1 HANDLE (NA152872) 35435 RON
44 1 1 STRAP (NA162666) 114 RON
45 1 2 WHEEL (NA153125) 4355 RON
46 1 2 WASHER (N695171) 588 RON
47 1 4 SCREW (N760721) 588 RON
48 1 4 SCREW (330019-73) 588 RON
49 1 40 SCREW PLASTIC THREAD FORM M3.5*16 T15 (330019-66) 558 RON
50 1 1 HOSE SA (N862081) 15469 RON
51 1 1 HOSE (NA035934) 15469 RON
52 1 1 NEEDLE (NA064137) 588 RON
