Top » Piese de schimb » Piese Stanley » SFMCPC93B Type 1

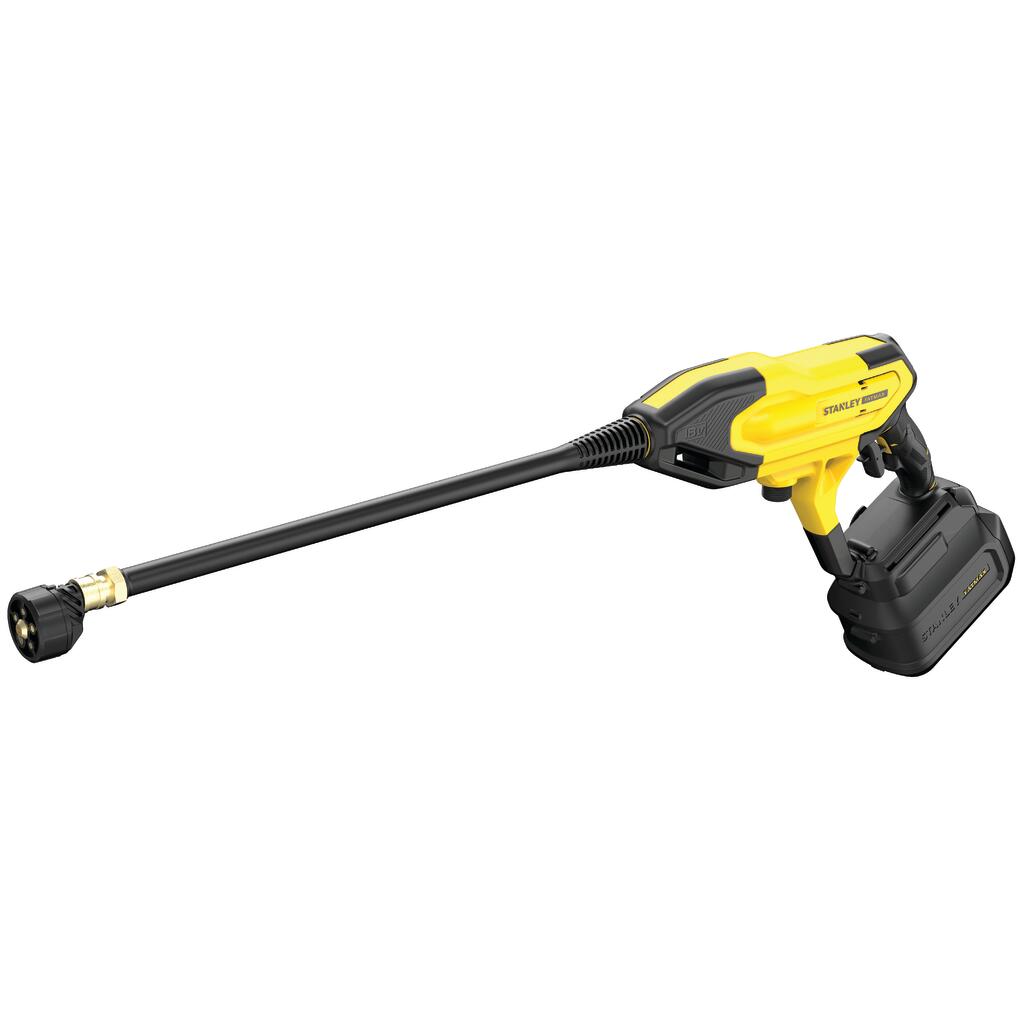

MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPC93B Type 1
[SFMCPC93B Type 1]
MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPC93B Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPC93B Type 1
Click pentru a mari
MASINA DE SPALAT CU PRESIUNE STANLEY SFMCPC93B Type 1
Click pentru a mari

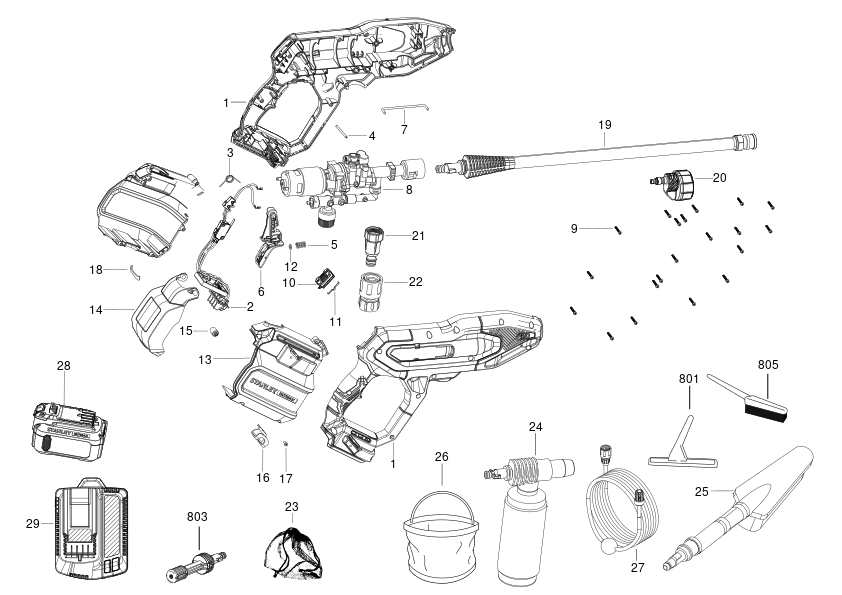

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING PAIR (N858899) 21676 RON
2 1 1 PCB SA (N829093) 23244 RON
3 1 1 SPRING (N832489) 588 RON
4 1 1 PIN (90608942) 588 RON
5 1 1 SPRING (N746415) 588 RON
6 1 1 TRIGGER (N792849) 1772 RON
7 1 1 ROD (N823588) 588 RON
8 1 20 MOTOR AND PUMP SA (N909257) 60451 RON
9 1 1 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
10 1 1 SELECTOR (N832359) 588 RON
11 1 1 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
12 1 1 WASHER PLAIN (330016-01) 558 RON
13 1 1 HOUSING PAIR (N919761) 6688 RON
14 1 1 CAP (N913360) 1772 RON
15 1 1 CONTACT PIN HOLDER (N913359) 588 RON
16 1 1 HOOK (N537367) 114 RON
17 1 1 SCREW (330024-45) 588 RON
18 1 1 RUBBER SEAL (N913366) 588 RON
19 1 1 EXTENSION (N793781) 12361 RON
20 1 1 NOZZLE (N828581) 15469 RON
21 1 1 CONNECTOR (N828669) 1933 RON
22 1 1 ADAPTOR (N921036) 2556 RON
23 1 1 BAG (N862083) 3954 RON
24 1 1 BOTTLE (N894177) 3268 RON
25 1 1 BRUSH (N920471) 741 RON
26 1 1 COLLECTOR (N920470) 24962 RON
27 1 1 HOSE SA (N862081) 15469 RON
28 1 1 000000-04 - Indisponibil
29 1 1 000000-04 - Indisponibil
801 1 1 N920472 - Indisponibil
803 1 1 NOZZLE (N862611) 3268 RON
805 1 1 BRUSH (N920471) 741 RON
