Top » Piese de schimb » Piese Stanley » SFMCD711D2K Type 1

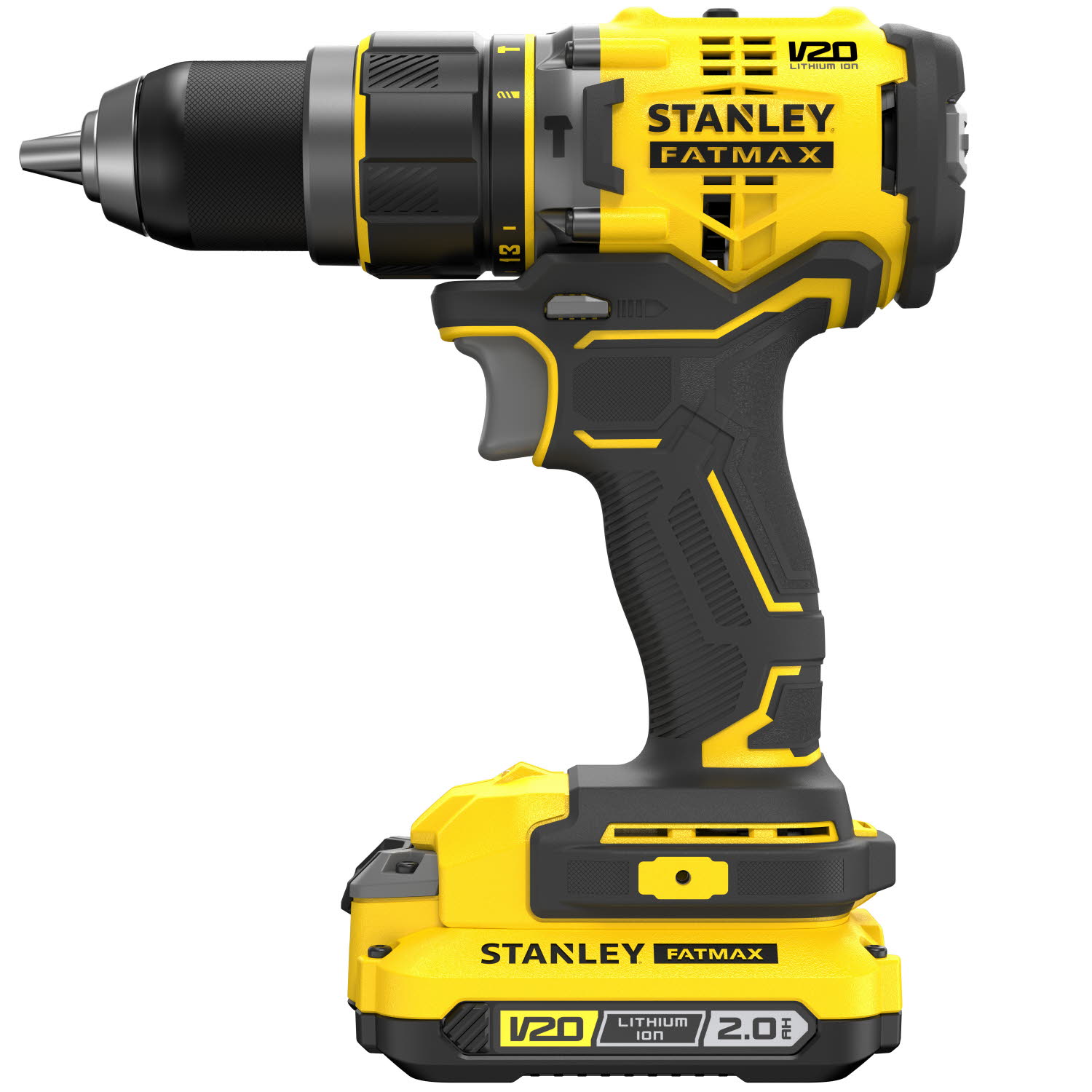

MASINA DE GAURIT CU PERCUTIE STANLEY SFMCD711D2K Type 1
[SFMCD711D2K Type 1]
MASINA DE GAURIT CU PERCUTIE STANLEY SFMCD711D2K Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE STANLEY SFMCD711D2K Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE STANLEY SFMCD711D2K Type 1
Click pentru a mari

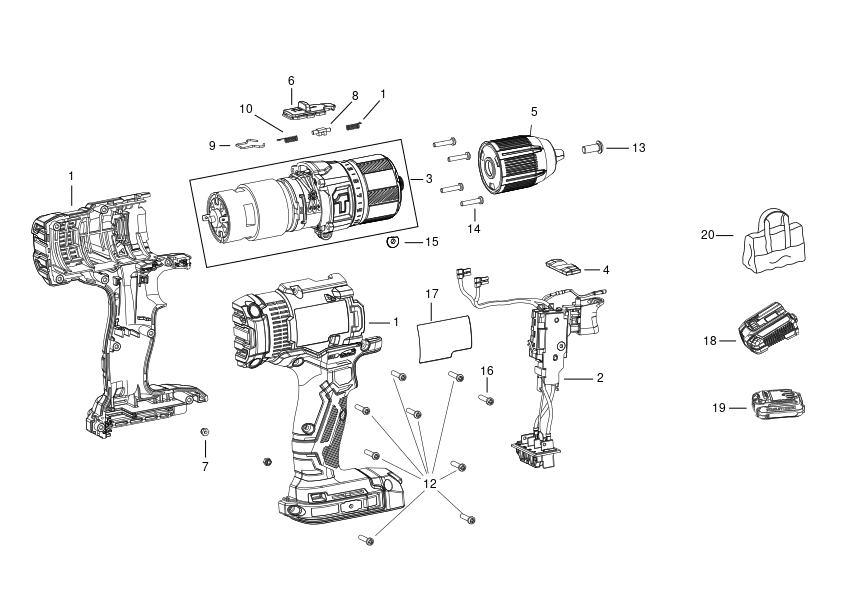

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N714290 - Indisponibil
1 1 1 HOUSING PAIR (NA715377) 4827 RON
2 1 1 SWITCH (NA233023) 21676 RON
3 1 1 GEARBOX SA (N884499) 38463 RON
4 1 1 ACTUATOR FWD/REV (N582361) 588 RON
5 1 1 CHUCK (NA263380) 4827 RON
6 1 1 ACTUATOR (N570524) 82 RON
7 1 2 NUT (90556571) 588 RON
8 1 1 HOLDER (90569691) 588 RON
9 1 1 LEAF SPRING (90556568) 588 RON
10 1 1 SPRING LH (90591282) 588 RON
11 1 1 SPRING RH (90600347) 588 RON
12 1 8 SCREW (5106167-00) 558 RON
13 1 1 SCREW (5103096-01) 558 RON
14 1 4 SCREW (5101046-00) 588 RON
15 1 1 SPACER (N593757) 588 RON
16 1 1 SCREW (497283-00) 558 RON
17 1 1 RATING LABEL (NA525248) 588 RON
18 1 1 CHARGER (N889270) 23244 RON
866 1 2 BATTERY (NA154282) 57833 RON
867 1 1 KITBOX (N714271) 21676 RON
