Top » Piese de schimb » Piese Stanley » SBR20 Type 1

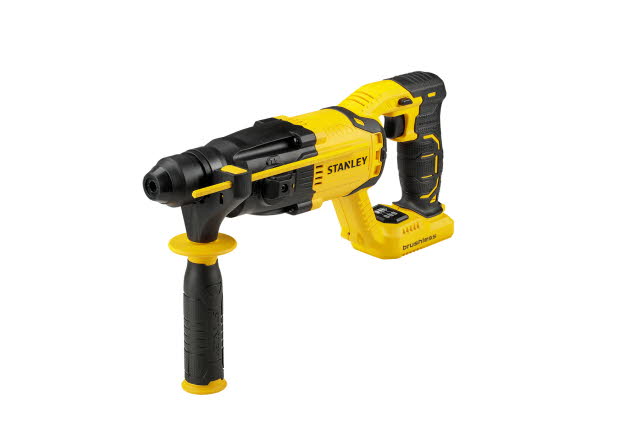

MASINA DE GAURIT CU PERCUTIE STANLEY SBR20 Type 1
[SBR20 Type 1]
MASINA DE GAURIT CU PERCUTIE STANLEY SBR20 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE STANLEY SBR20 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE STANLEY SBR20 Type 1
Click pentru a mari

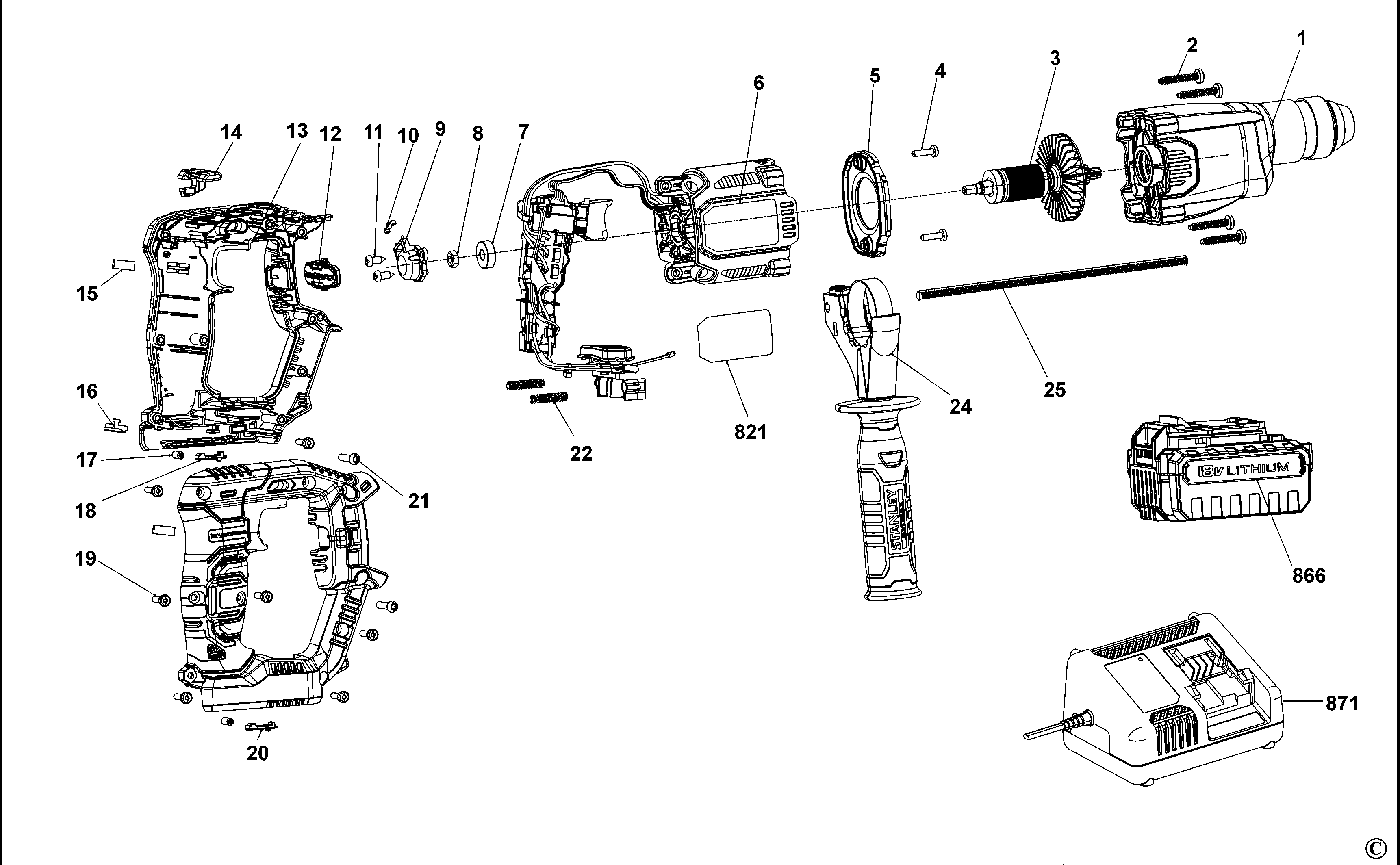

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE (N510830) 60451 RON
2 1 4 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
3 1 1 ARMATURE SA (N566480) 18568 RON
4 1 2 SCREW (330065-07) 558 RON
5 1 1 BAFFLE (N498027) 944 RON
6 1 1 MODULE (N621876) 104961 RON
7 1 1 CE BEARING (1005895-00) 1788 RON
8 1 1 NUT HEX M6 LH (N467767) 588 RON
9 1 1 HE BEARING CAP (N467131) 588 RON
10 1 1 CAP (N261987) 588 RON
11 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
12 1 1 INSERT (N519419) 668 RON
13 1 1 HOUSING HANDLE (N612554) 12361 RON
14 1 1 N496122 - Indisponibil
15 1 1 RUBBER PAD (N328740) 558 RON
16 1 1 STRIKE PLATE (N467560) 588 RON
17 1 1 RUBBER PIN (N487311) 588 RON
18 1 1 RAIL (N517456) 588 RON
19 1 7 SCREW (330065-07) 558 RON
20 1 1 COVER (N517458) 588 RON
21 1 2 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
22 1 2 SPRING (90516498) 558 RON
24 1 1 HANDLE SIDE SA (N612545) 5370 RON
25 1 1 STOP (N510648) 668 RON
866 1 1 000000-04 - Indisponibil
871 1 1 000000-04 - Indisponibil
