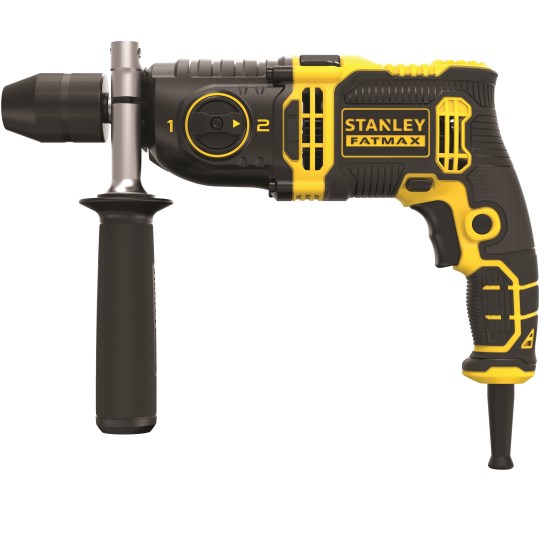

MASINA DE GAURIT CU PERCUTIE STANLEY KFFMEH1100 Type 1
[KFFMEH1100 Type 1]
MASINA DE GAURIT CU PERCUTIE STANLEY KFFMEH1100 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE GAURIT CU PERCUTIE STANLEY KFFMEH1100 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE STANLEY KFFMEH1100 Type 1
Click pentru a mari
MASINA DE GAURIT CU PERCUTIE STANLEY KFFMEH1100 Type 1
Click pentru a mari

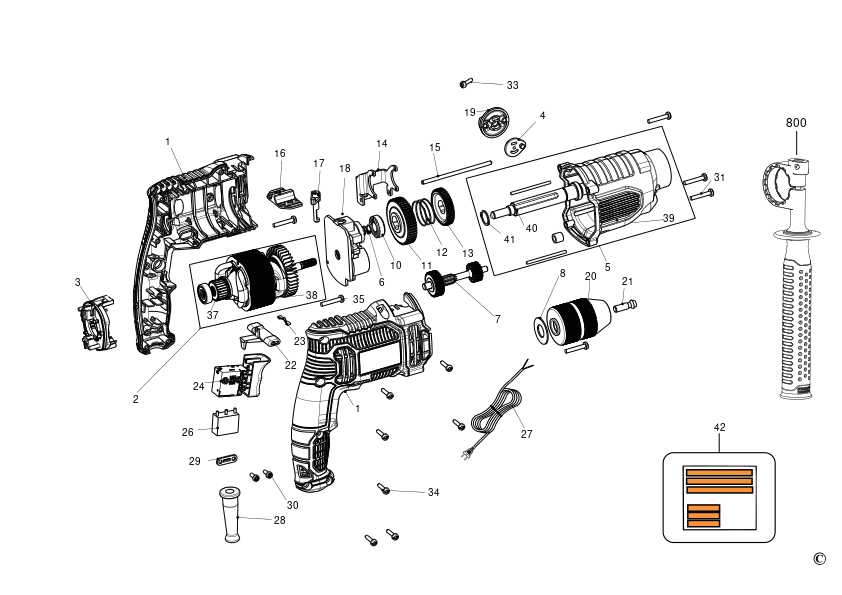

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N523193) 12361 RON
2 1 1 MOTOR (N663247) 24962 RON
3 1 1 BRUSH SA (N508445) 4827 RON
4 1 1 PLATE (90567833) 781 RON
5 1 1 GEARCASE (N663245) 12361 RON
6 1 1 SPRING (629149-00) 558 RON
7 1 1 N663477 - Indisponibil
7 1 1 INTER SHAFT SA (N786873) 10241 RON
8 1 1 WASHER (N573696) 588 RON
10 1 1 RATCHET (622172-00) 105 RON
11 1 1 Gear (90563338) 2796 RON
12 1 1 SPRING COMPRESSION (90563340) 588 RON
13 1 1 Gear (90563339) 2182 RON
14 1 1 PLATE (90566845) 1772 RON
15 1 1 GUIDE ROD (N498175) 668 RON
16 1 1 SELECTOR (N507192) 114 RON
17 1 1 PIN SA (90641385) 114 RON
18 1 1 BEARING PLATE (90567892) 6821 RON
19 1 1 KNOB (N500757) 1318 RON
20 1 1 CHUCK (N582979) 16689 RON
21 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
21 1 1 "SCREW CHUCK (1/4"" - 28 UNF - LH)" (605256-01) 781 RON
22 1 1 BAR (N506301) 588 RON
23 1 1 SPRING (90560638) 558 RON
24 1 1 SWITCH SA (N501242) 10241 RON
26 1 1 CAPACITOR (90574765) 2124 RON
27 1 1 N585441 - Indisponibil
28 1 1 CORD PROTECTOR (90567404) 781 RON
29 1 1 CLAMP CORD CORNER (329301-00) 558 RON
30 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
31 1 1 SCREW (330019-14) 558 RON
33 1 1 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
34 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
35 1 1 Screw M3.15 X42 (330019-63) 558 RON
37 1 1 ARMATURE (N663461) 15469 RON
38 1 1 FIELD SA (90640577) 13697 RON
39 1 1 GEARCASE (N663243) 5370 RON
40 1 1 SPINDLE (90640071) 6688 RON
41 1 1 SEAL RING (144803-00) 781 RON
42 1 1 RATING LABEL (N605938) 588 RON
800 1 1 N524161 - Indisponibil
800 1 1 HANDLE SA (NA117383) 10241 RON
