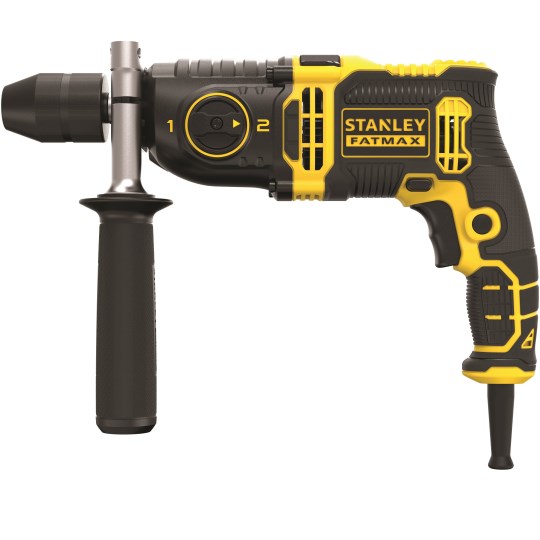

MASINA DE GAURIT CU PERCUTIE STANLEY FMEH850 Type 1
[FMEH850 Type 1]

Imagini suplimentare

Click pentru a mari

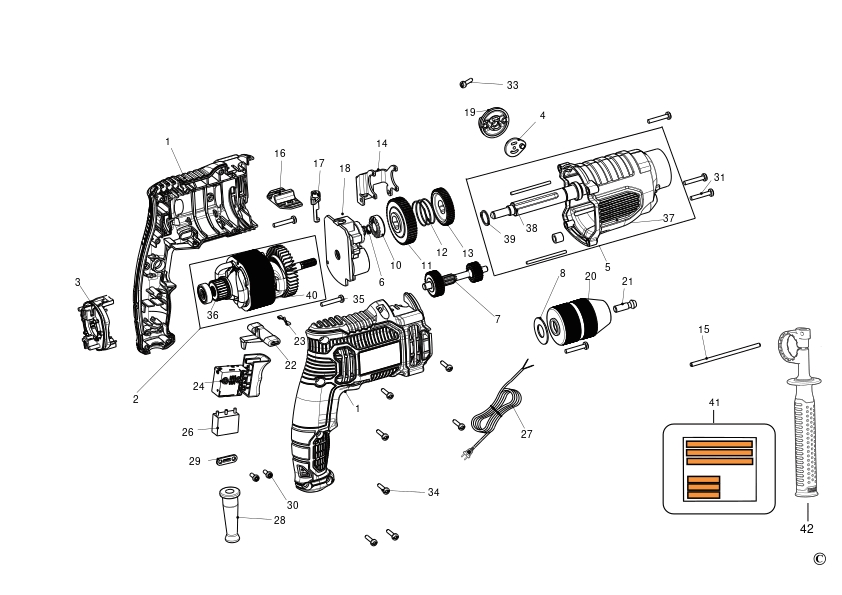

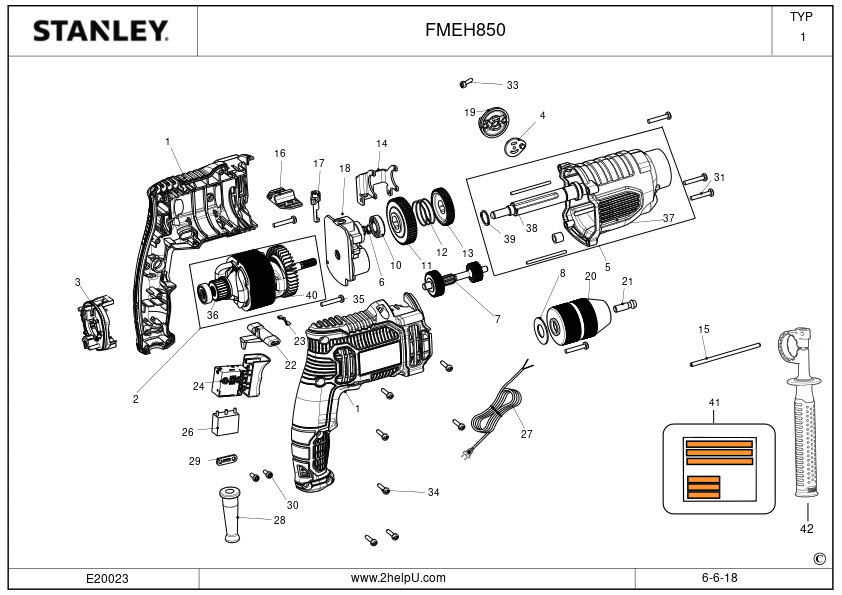

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HOUSING SA (N510381)	74¹ RON
2	1	1	MOTOR SA (N663234)	232⁴⁴ RON
3	1	1	BRUSH SA (N508445)	48²⁷ RON
4	1	1	PLATE (90567833)	7⁸¹ RON
6	1	1	SPRING (629149-00)	5⁵⁸ RON
7	1	1	N663477	-	Indisponibil
7	1	1	INTER SHAFT SA (N786873)	102⁴¹ RON
8	1	1	WASHER (N573696)	5⁸⁸ RON
10	1	1	RATCHET (622172-00)	10⁵ RON
11	1	1	Gear (90563338)	27⁹⁶ RON
12	1	1	SPRING COMPRESSION (90563340)	5⁸⁸ RON
13	1	1	Gear (90563339)	21⁸² RON
14	1	1	PLATE (90566845)	17⁷² RON
15	1	1	GUIDE ROD (N498175)	6⁶⁸ RON
16	1	1	SELECTOR (N507192)	11⁴ RON
17	1	1	PIN SA (90641385)	11⁴ RON
18	1	1	BEARING PLATE (90567892)	68²¹ RON
19	1	1	KNOB (N500757)	13¹⁸ RON
20	1	1	CHUCK (N582979)	166⁸⁹ RON
22	1	1	BAR (N526456)	5⁸⁸ RON
23	1	1	SPRING (90560638)	5⁵⁸ RON
24	1	1	SWITCH SA (90581326)	55⁹¹ RON
26	1	1	CAPACITOR (90574765)	21²⁴ RON
27	1	1	N585441	-	Indisponibil
28	1	1	CORD PROTECTOR (90567404)	7⁸¹ RON
29	1	1	CLAMP CORD CORNER (329301-00)	5⁵⁸ RON
30	1	1	Screw M3.5 X9.5 (330019-01)	5⁵⁸ RON
31	1	1	SCREW (330019-14)	5⁵⁸ RON
33	1	1	SCREW PLSTC THD FORM M3.5X13 T15 (330019-02)	5⁵⁸ RON
34	1	1	Screw M3.5X16 T15 (330019-03)	5⁵⁸ RON
35	1	1	Screw M3.15 X42 (330019-63)	5⁵⁸ RON
36	1	1	ARMATURE (N663476)	136⁹⁷ RON
37	1	1	GEARCASE (N663243)	53⁷⁰ RON
38	1	1	SPINDLE (90640071)	66⁸⁸ RON
39	1	1	SEAL RING (144803-00)	7⁸¹ RON
40	1	1	ARMATURE SA (90640146)	136⁹⁷ RON
41	1	1	N574868	-	Indisponibil
41	1	1	RATING LABEL (NA090903)	5⁸⁸ RON
42	1	1	SIDE HANDLE (N523921)	48²⁷ RON
43	1	1	FIELD SA (90640246)	123⁶¹ RON
