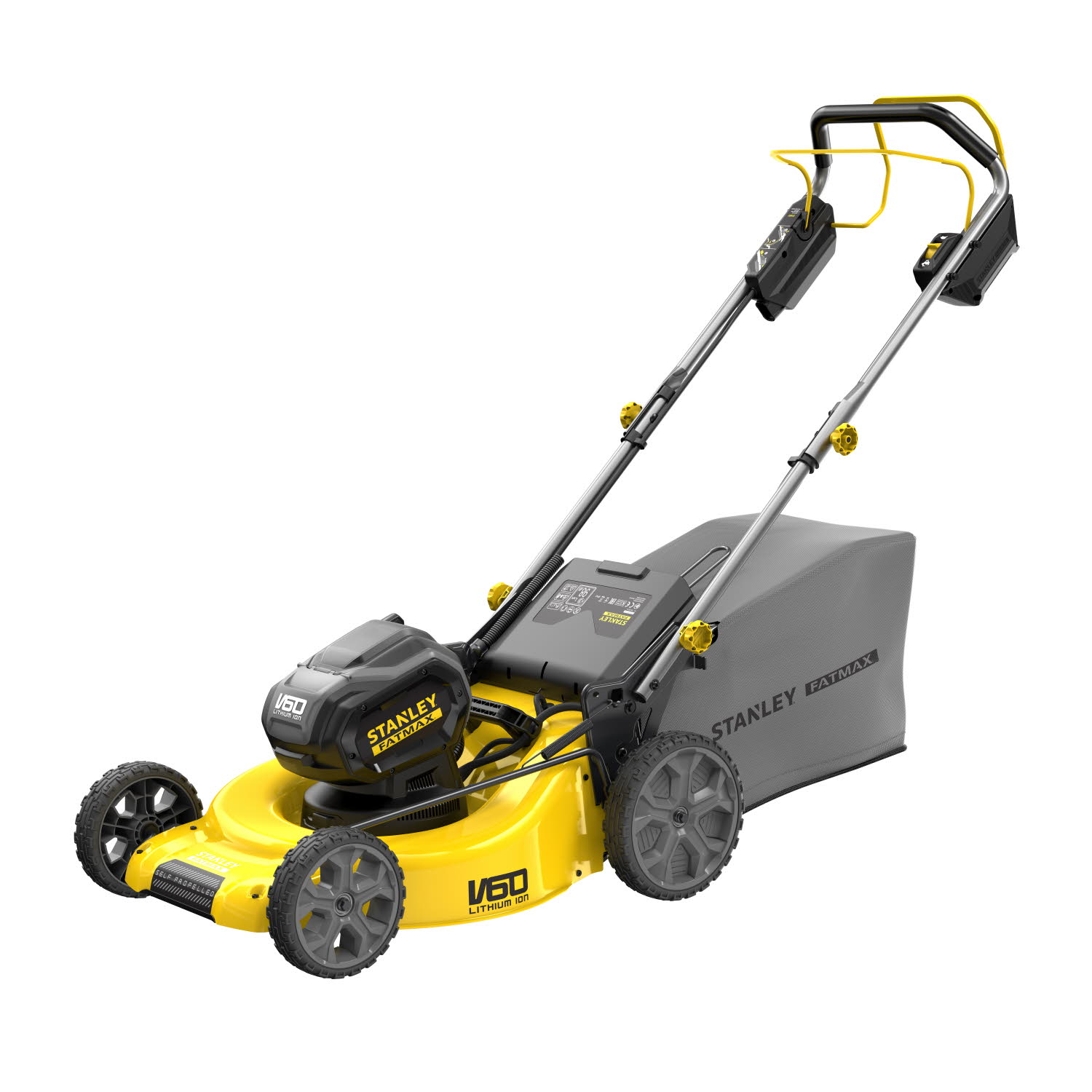

MASINA DE COSIT STANLEY SFMCMS2653 Type H1
[SFMCMS2653 Type H1]
MASINA DE COSIT STANLEY SFMCMS2653 Type H1
Click pentru a mari
Imagini suplimentare
MASINA DE COSIT STANLEY SFMCMS2653 Type H1
Click pentru a mari
MASINA DE COSIT STANLEY SFMCMS2653 Type H1
Click pentru a mari

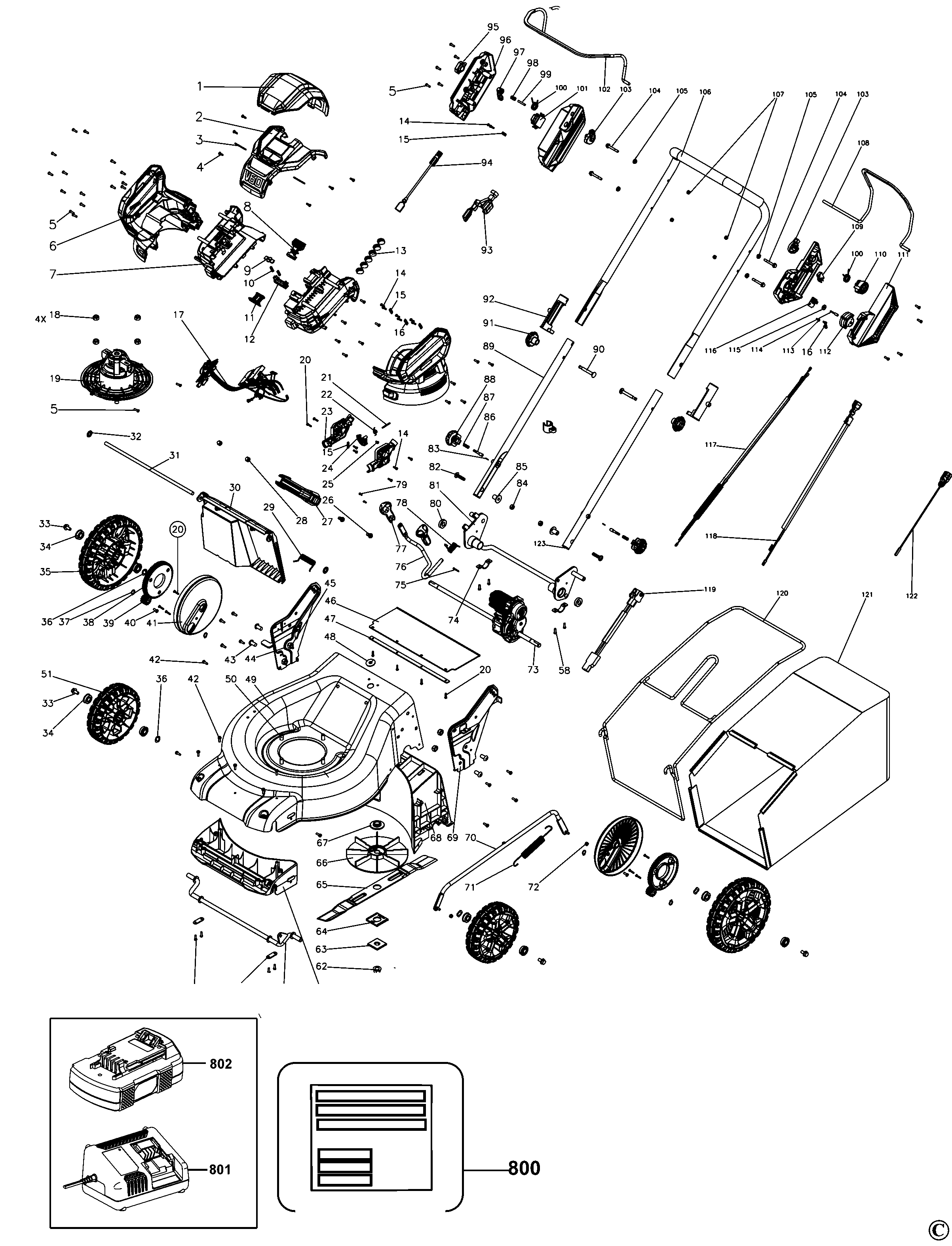

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LID (N565774) 741 RON
2 1 1 BATTERY CASE SA (N719369) 4355 RON
3 1 1 PIN (N592196) 944 RON
4 1 1 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 1 screw dw744 (330019-12) 558 RON
6 1 1 HOUSING MOTOR (N601309) 15469 RON
7 1 1 HOUSING (N601310) 12361 RON
8 1 1 Button Latch CM 60V (N580658) 82 RON
9 1 1 SUPPORT (90607453) 588 RON
10 1 1 SPRING (90606558) 588 RON
11 1 1 EJECTOR (90605769) 944 RON
12 1 1 TOOL LATCH SLIDER CRAFTSMAN 60V (N562080) 82 RON
13 1 1 WIRE (N591024) 944 RON
14 1 1 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
15 1 1 CLAMP (329301) 2182 RON
16 1 1 PCB (N585654) 2796 RON
16 1 1 CLAMP (N592599) 588 RON
17 1 1 MODULE (N725183) 10889 RON
18 1 1 NUT M10 (N455283) 588 RON
19 1 1 N601317 - Indisponibil
20 1 1 Screw M3.5X16 T15 (330019-03) 558 RON
21 1 1 PIN (N597886) 588 RON
22 1 1 SPRING (N591385) 588 RON
23 1 1 HOUSING (N716876) 2182 RON
24 1 1 ACTUATOR (N580674) 668 RON
25 1 1 SCREW (330019-48) 558 RON
26 1 1 BOLT (N637944) 588 RON
27 1 1 HANDLE (N565937) 1933 RON
28 1 1 Nut Acorn Cap - 8 x 1.25mm (N527654) 588 RON
29 1 1 SPRING (N592718) 668 RON
30 1 1 DOOR (N588865) 741 RON
31 1 1 ROD (N565930) 2796 RON
32 1 1 RING (N591697) 588 RON
33 1 1 BOLT (N604055) 588 RON
34 1 1 BEARING (N597453) 1630 RON
35 1 1 WHEEL REAR (N589931) 12361 RON
36 1 1 WASHER SPECIAL (N514019) 588 RON
37 1 1 RETAINER (034109-00) 558 RON
38 1 1 Gear (N572616) 3954 RON
39 1 1 PINION (N572615) 1772 RON
40 1 1 SCREW (330045-49) 558 RON
41 1 1 COVER (N578642) 1933 RON
42 1 1 SCREW (N630171) 588 RON
43 1 1 BOLT (N630170) 588 RON
44 1 1 PLATE (N725351) 6688 RON
45 1 1 NUT (N630169) 588 RON
46 1 1 FLAP (N589628) 3954 RON
47 1 1 PLATE (N590208) 1933 RON
48 1 1 WASHER (N590651) 588 RON
49 1 1 BASE (N727663) 55455 RON
50 1 1 BOLT (N545139) 668 RON
51 1 1 WHEEL (N588325) 10241 RON
58 1 1 SCREW (N630172) 588 RON
59 1 1 PLATE (N600127) 588 RON
60 1 1 AXLE (N594373) 5370 RON
61 1 1 INSERT (N594414) 5370 RON
62 1 1 NUT (N538858) 944 RON
63 1 1 SPACER (092715-00) 781 RON
64 1 1 WASHER INSULATING (90541434) 781 RON
65 1 1 BLADE (N566776) 12361 RON
66 1 1 FAN (N590354) 3268 RON
67 1 1 SPACER (680812-00) 105 RON
68 1 1 INSERT (N594372) 16689 RON
69 1 1 PLATE (N594371) 5370 RON
70 1 1 ROD (N594377) 3268 RON
71 1 1 SPRING (N594378) 1772 RON
72 1 1 NUT M6 (N630173) 588 RON
73 1 1 TRANSMISSION SA (N719300) 104961 RON
74 1 1 CLAMP (N600095) 1772 RON
75 1 1 PIN (N630174) 588 RON
76 1 1 LEVER (N594375) 2556 RON
77 1 1 HANDLE (N716855) 1630 RON
78 1 1 SPRING (N594376) 944 RON
79 1 1 SCREW PLASTIC (330019-41) 588 RON
80 1 1 BEARING (90136109) 1933 RON
81 1 1 AXLE (N733498) 13697 RON
82 1 1 BOLT (N535212) 668 RON
83 1 1 SPRING (90564730) 558 RON
84 1 1 NUT (N535210) 588 RON
85 1 1 SPACER (N535178) 668 RON
86 1 1 PIN (N514100) 944 RON
87 1 1 SPRING COMPRESSION (90101536) 558 RON
88 1 1 KNOB (N716863) 1630 RON
89 1 1 POLE PIECE SA (N590112) 9012 RON
89 1 1 SPRING (90541477) 781 RON
90 1 1 BOLT (N584838) 944 RON
91 1 1 PIN (N716853) 1772 RON
92 1 1 N585338 - Indisponibil
92 1 1 HANDLE SA (NA074187) 32327 RON
93 1 1 SWITCH (N603166) 944 RON
94 1 1 KEY (N591870) 2796 RON
95 1 1 BUTTON (N716872) 82 RON
96 1 1 HOUSING (N716865) 4355 RON
97 1 1 CRANK (N587963) 588 RON
99 1 1 PIN (90541437) 781 RON
100 1 1 SPRING (N593516) 668 RON
101 1 1 SWITCH (N587759) 741 RON
102 1 1 HANDLE (N722157) 3268 RON
103 1 1 CRANK (N587962) 82 RON
104 1 1 BOLT (N591023) 588 RON
105 1 1 WASHER (N591230) 588 RON
106 1 1 POLE PIECE (N565746) 20216 RON
107 1 1 LOCK-NUT (N541610) 588 RON
108 1 1 ROD (N719297) 4355 RON
109 1 1 SWITCH (90569937) 2347 RON
110 1 1 CAM (90149411) 82 RON
111 1 1 HOUSING (N719362) 4355 RON
112 1 1 LEVER (N725337) 82 RON
113 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
114 1 1 SHAFT (N587363) 1933 RON
115 1 1 Gear (90172216) 588 RON
116 1 1 PCB (N585654) 2796 RON
117 1 1 HARNESS (N604409) 18568 RON
118 1 1 HARNESS (N604460) 9012 RON
119 1 1 WIRE (N591698) 3268 RON
120 1 1 FRAME (N592733) 11337 RON
121 1 1 BAG (N727889) 28836 RON
122 1 1 KEY (N716844) 9012 RON
123 1 1 INSERT (N566731) 944 RON
800 1 1 RATING LABEL (N727927) 2182 RON
801 1 1 000000-04 - Indisponibil
802 1 1 000000-04 - Indisponibil
