Top » Piese de schimb » Piese Stanley » SFMCE500 Type 1

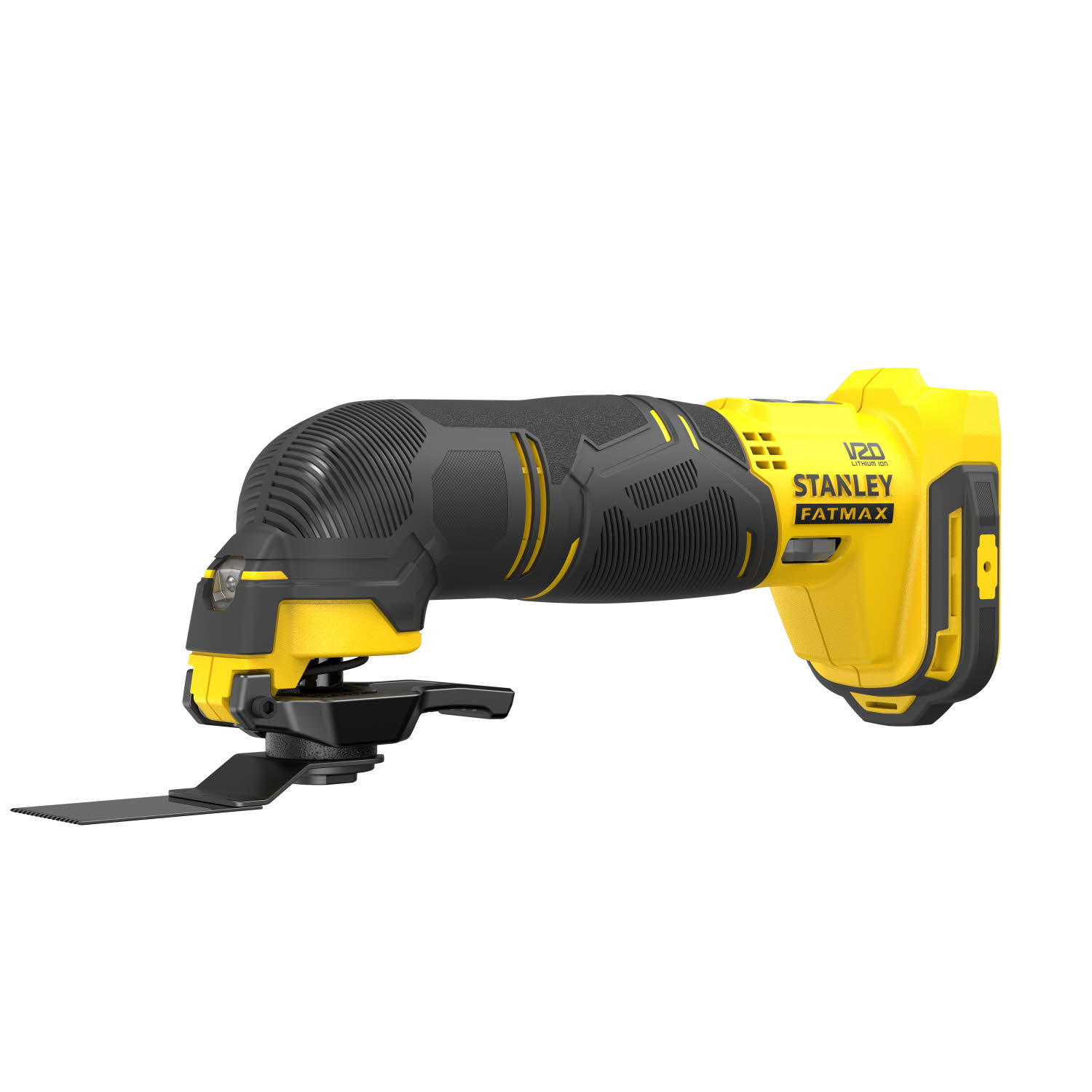

INSTRUMENT DE OSCILATIE STANLEY SFMCE500 Type 1
[SFMCE500 Type 1]
INSTRUMENT DE OSCILATIE STANLEY SFMCE500 Type 1
Click pentru a mari
Imagini suplimentare
INSTRUMENT DE OSCILATIE STANLEY SFMCE500 Type 1
Click pentru a mari
INSTRUMENT DE OSCILATIE STANLEY SFMCE500 Type 1
Click pentru a mari
INSTRUMENT DE OSCILATIE STANLEY SFMCE500 Type 1
Click pentru a mari

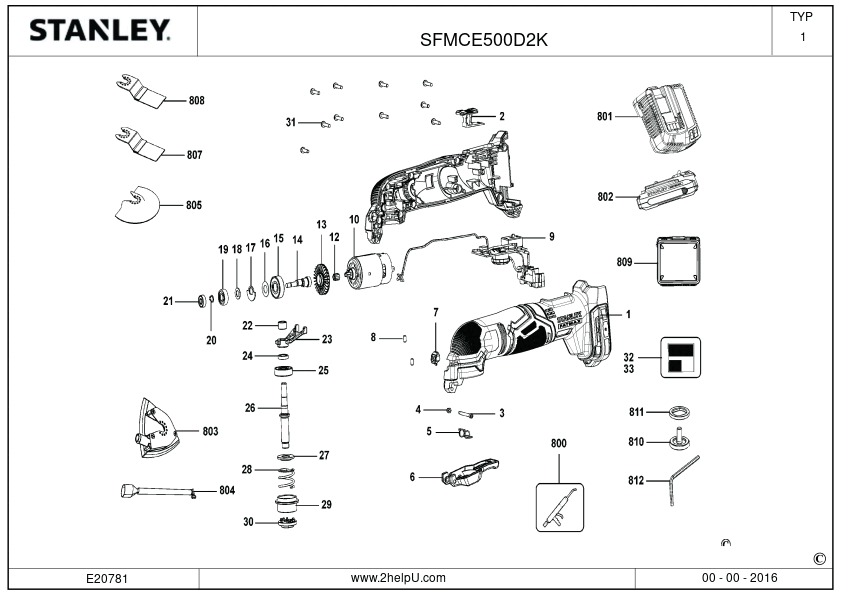

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (N688124) 741 RON
2 1 1 ACTUATOR (N537567) 588 RON
3 1 1 SCREW (90581542) 558 RON
4 1 1 NUT (90581543) 558 RON
5 1 1 SPRING TORSION (90580672) 558 RON
6 1 1 90599051 - Indisponibil
6 1 1 LEVEL (N885171) 1318 RON
6 1 1 LEVEL (NA396338) 944 RON
7 1 1 COVER (90593191) 588 RON
8 1 2 PLUG (90596629) 588 RON
9 1 1 PCB (N540960) 21676 RON
10 1 1 90592745-01 - Indisponibil
10 1 1 MOTOR SA (NA066284) 18568 RON
12 1 1 PINION (90592739) 588 RON
13 1 1 FAN (90592738) 588 RON
14 1 1 DRIVE SHAFT (90592736) 3268 RON
15 1 1 BEARING (90581550) 1452 RON
16 1 1 WASHER (90594208) 588 RON
17 1 1 PLATE (90581541) 558 RON
18 1 1 WASHER (90581562) 558 RON
19 1 1 BEARING (90586419) 2124 RON
20 1 1 CLIP (90581539) 558 RON
21 1 1 BEARING (90592737) 1772 RON
22 1 1 BEARING NEEDLE (624474-06) 105 RON
23 1 1 90580652 - Indisponibil
23 1 1 YOKE (90580652-01) 4827 RON
24 1 1 SLEEVE (90581535) 668 RON
25 1 1 BEARING,BALL (90581548) 1772 RON
26 1 1 SPINDLE (90580651) 2796 RON
27 1 1 90580653 - Indisponibil
27 1 1 SEAT (N535230) 668 RON
28 1 1 SPRING COMPRESSION (90580654) 588 RON
29 1 1 CLAMP (90580655) 2556 RON
30 1 1 WASHER CLAMP (90580656) 2796 RON
31 1 10 SCREW NO.6 X 12.7 (370748) 558 RON
32 1 1 N717427 - Indisponibil
32 1 1 RATING LABEL (NA590818) 588 RON
33 1 1 WARNING LABEL (N717430) 588 RON
33 1 1 WARNING LABEL (NA989281) 588 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 CHARGER SA (N567651) 36994 RON
801 1 1 CHARGER SA (NA378064) 32327 RON
802 1 1 N718919 - Indisponibil
802 1 1 N901002 - Indisponibil
802 1 1 000000-99 - Indisponibil
802 1 1 BATTERY (NA154282) 57833 RON
803 1 1 HEAD SA (90583530) 5031 RON
804 1 1 TUBE SA (90586018) 3466 RON
805 1 1 BLADE - CARBIDE (90585838) 6821 RON
807 1 1 BLADE - PLUNGE CUT (90604632) 2556 RON
808 1 1 BLADE - PLUNGE CUT (90604633) 3268 RON
809 1 1 KITBOX (N715606) 21676 RON
810 1 1 OUTER FLANGE (90584484) 1452 RON
811 1 1 FLANGE cod vechi 90583885 (N440293) 2124 RON
812 1 1 WRENCH SPECIAL (90584745) 893 RON
