Top » Piese de schimb » Piese Stanley » AL32D Type 1

INSTRUMENT OPTIC STANLEY AL32D Type 1
[AL32D Type 1]
INSTRUMENT OPTIC STANLEY AL32D Type 1
Click pentru a mari
Imagini suplimentare
INSTRUMENT OPTIC STANLEY AL32D Type 1
Click pentru a mari
INSTRUMENT OPTIC STANLEY AL32D Type 1
Click pentru a mari
INSTRUMENT OPTIC STANLEY AL32D Type 1
Click pentru a mari
INSTRUMENT OPTIC STANLEY AL32D Type 1
Click pentru a mari

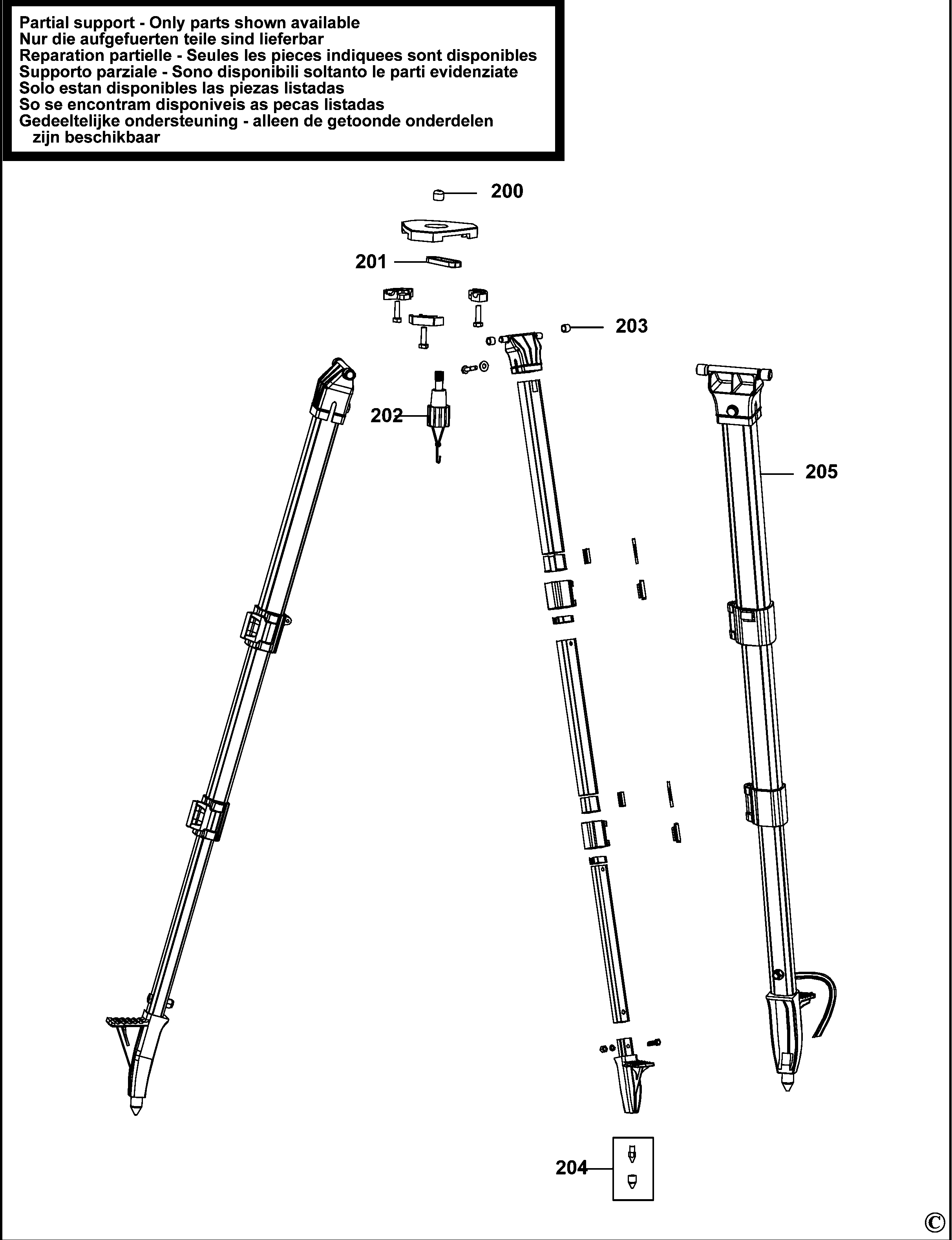

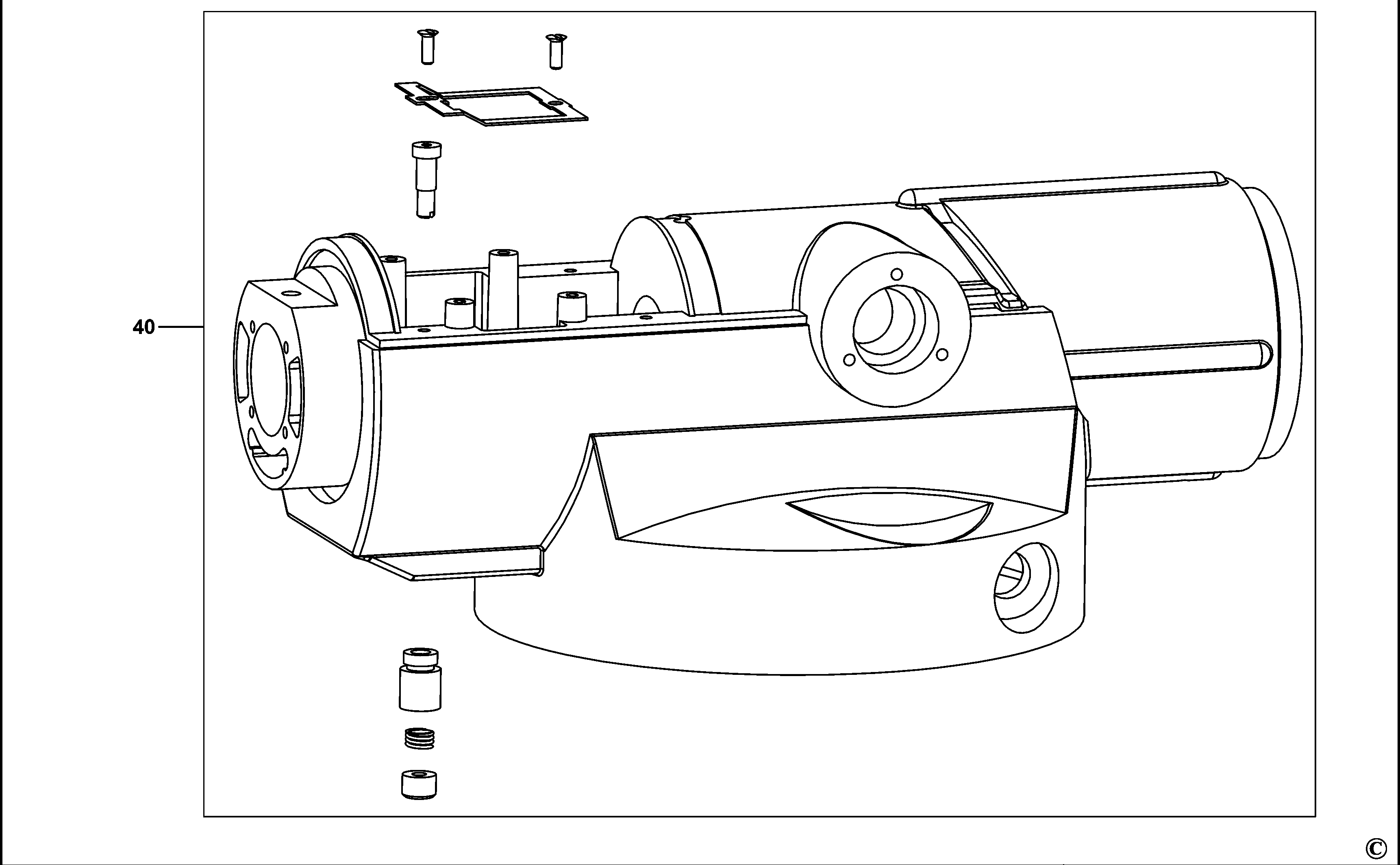

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 9 SCREW (M2.5X8 GB/T70-2000) 588 RON
2 1 1 PIN (07Z-BZ04) 944 RON
3 1 1 COMPENSATOR (71BF) 99395 RON
5 1 2 SHIM (C010) 668 RON
8 1 1 CONTROL SCREW (M034B) 944 RON
9 1 1 LENS (07BC-B02) 21676 RON
10 1 4 SCREW (M2.5X8 GB819-85) 588 RON
11 1 3 SCREW (M2X5 GB71-85) 668 RON
12 1 1 KNOB SA (07BC-M11) 4827 RON
13 1 1 COVER (71Z-P05) 2556 RON
14 1 1 LENS (07BC-5) 38463 RON
15 1 1 O RING (07BC-X02) 944 RON
16 1 1 PISTON (M033A) 82 RON
18 1 3 WHEEL ADJUSTER (P021A) 3954 RON
19 1 3 SUPPORT (M007) 1630 RON
20 1 3 SUPPORT (M005) 114 RON
21 1 3 BUSHING (C004) 588 RON
22 1 1 GASKET (71Z-X06) 82 RON
23 1 1 ADJUSTER SA (71BJ) 18568 RON
24 1 1 CAP (71Z-X01) 3268 RON
25 1 1 COVER (71Z-P01) 1318 RON
26 1 1 LENS (71BB) 40734 RON
27 1 1 SPACER (71Z-C01) 944 RON
28 1 1 SLIDE (71BD-B01) 20216 RON
29 1 1 SPRING (C016) 668 RON
30 1 1 RACK (P017) 4355 RON
31 1 2 SCREW (M2X4 GB818-85) 588 RON
32 1 1 D1007 - Indisponibil
33 1 1 COVER (71Z-P03) 4355 RON
34 1 1 GASKET (71Z-C03) 82 RON
35 1 1 O RING (71Z-X07) 2182 RON
36 1 1 GASKET (71Z-X03) 944 RON
37 1 1 LOCK (07BY) 3268 RON
38 1 1 SCREW (M1.6X3 GB823-88) 588 RON
39 1 1 INDICATOR (P002) 588 RON
40 1 1 HOUSING SA (71Z-A01A-Z) 55455 RON
43 1 1 WASHER (C001D) 668 RON
44 1 1 CIRCLIP (GB894.1-86) 668 RON
45 1 1 Gear (P010) 3954 RON
46 1 1 SHIM (C007) 944 RON
47 1 1 CIRCLIP (GB894.1-86) 668 RON
48 1 1 RING (4-15) 944 RON
49 1 1 SCALE (P007) 4827 RON
50 1 1 WASHER (C005) 2796 RON
51 1 3 SCREW (M4X8 GB823-88) 588 RON
52 1 1 BASEPLATE (A003B) 10241 RON
53 1 3 BALL (M004) 82 RON
55 1 1 COVER (A002) 10241 RON
56 1 1 BASE (A004NB) 24962 RON
57 1 3 SPRING (M2.5X4 GB9074.6-88) 588 RON
58 1 1 ADJUSTER SA (71BI) 10241 RON
59 1 1 SCREW (M2.5X6 GB71-85) 668 RON
60 1 1 SCREW (M2.5X12 GB71-85) 668 RON
61 1 1 SCREW (M2.5X6 GB818-85) 588 RON
62 1 1 LEVEL (D3003A) 741 RON
63 1 1 GASKET (C018) 944 RON
64 1 1 LENS (71BC-B01) 1933 RON
65 1 3 SCREW (M1.6X4 GB/T819-85) 588 RON
66 1 1 SHAFT (M001B) 5370 RON
67 1 1 SCREW (M5X12 GB70-85) 668 RON
68 1 1 BUSHING (L18-P03) 114 RON
69 1 1 MOUNT (07BC-M12) 3268 RON
72 1 1 SHAFT (P015) 944 RON
73 1 1 COVER SA (71Z-SG) 10241 RON
74 1 3 SCREW (M4X4 GB73-85) 588 RON
75 1 3 BUSHING (06BG-C01) 588 RON
76 1 1 SCREW (M2.5X8 GB71-85) 668 RON
78 1 1 SPACER (71Z-P12) 114 RON
79 1 1 BASE SA (D3001N-D) 57833 RON
80 1 1 SHAFT (71Z-M07A) 4355 RON
81 1 1 O RING (71Z-X05) 944 RON
82 1 1 SCREW (M2.5X3 GB818-85) 588 RON
83 1 1 Gear (71Z-M06) 5370 RON
84 1 1 SCREW (M2.5X5 GB818-85) 588 RON
85 1 1 PIN (B2X6 GB/T119) 588 RON
86 1 1 RING (71Z-P09) 82 RON
87 1 1 WASHER (WASHER-A8GB97.1-85) 588 RON
88 1 1 KNOB (71Z-P08) 2796 RON
89 1 1 WASHER (GB848-85) 588 RON
90 1 1 SCREW (M3X6 GB818-85) 588 RON
91 1 1 CAP (71Z-X04) 1933 RON
92 1 2 KNOB (X001) 1318 RON
93 1 1 KNOB (P006) 2182 RON
94 1 1 SPRING (71Z-C05) 82 RON
95 1 1 SCREW (M2.5X4 GB818-85) 588 RON
96 1 1 ADJUSTER SA (M002A) 6688 RON
97 1 1 BUSHING (P004) 944 RON
98 1 1 BUSHING (C002) 588 RON
99 1 1 SPACER (P016) 588 RON
100 1 1 SPRING (C003) 668 RON
101 1 1 KNOB (P003) 1933 RON
102 1 1 SCREW (M3X5 GB71-85) 668 RON
200 1 1 CAP (1004749-10) 1772 RON
201 1 3 ARM (1004749-39) 2796 RON
202 1 1 BELL (1004749-35) 11337 RON
203 1 6 BUSH (1004749-11) 1772 RON
204 1 3 FOOT SA (1004749-43) 4355 RON
205 1 3 LEG SA (1004749-44) 35435 RON
