Top » Piese de schimb » Piese Stanley » AL24G Type 1

INSTRUMENT OPTIC STANLEY AL24G Type 1
[AL24G Type 1]
INSTRUMENT OPTIC STANLEY AL24G Type 1
Click pentru a mari
Imagini suplimentare
INSTRUMENT OPTIC STANLEY AL24G Type 1
Click pentru a mari
INSTRUMENT OPTIC STANLEY AL24G Type 1
Click pentru a mari
INSTRUMENT OPTIC STANLEY AL24G Type 1
Click pentru a mari
INSTRUMENT OPTIC STANLEY AL24G Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW (ST2.5X7 GB845-85) 588 RON
2 1 1 COVER-TOP (07ZS-P03) 741 RON
3 1 1 LENS (55-70345) 1933 RON
4 1 1 MIRROR (55-70347) 9012 RON
5 1 1 SCREW (2.9X8 GB9074.18-88) 588 RON
6 1 1 COVER SA (07ZS-SG) 23244 RON
7 1 1 SCREW (M2.5X6 GB71-85) 668 RON

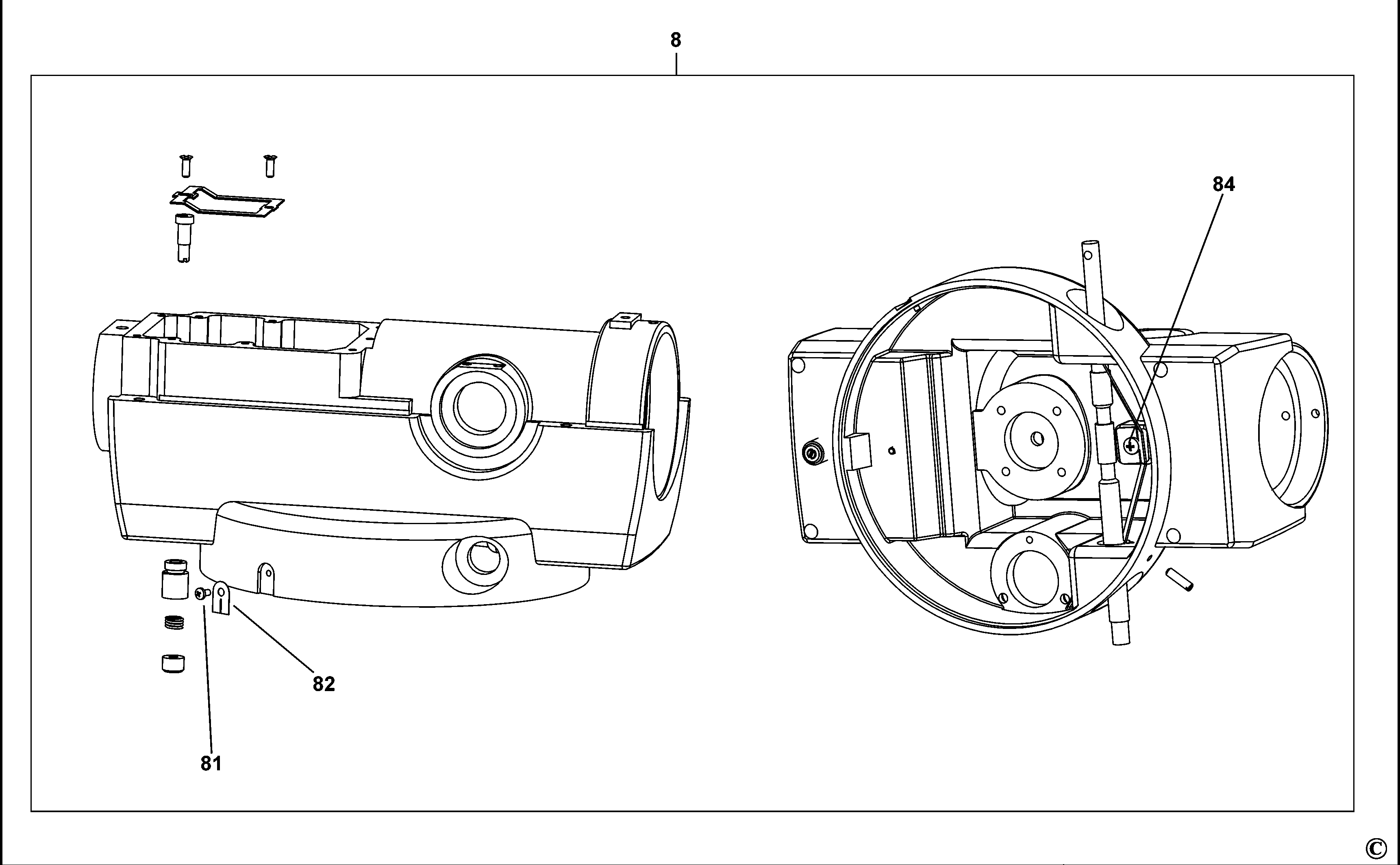

8 1 1 BODY (07Z-A01A-Z) 73079 RON
9 1 2 SCREW (M3X7 GB71-85) 668 RON
10 1 1 SCREW (M3X7 GB71-85) 668 RON
11 1 1 SCREW (M3X4 GB71-85) 668 RON
12 1 2 KNOB (X001) 1318 RON
13 1 1 ADJUSTER SA (M002A) 6688 RON
14 1 1 BUSHING (P004) 944 RON
15 1 1 BUSHING (L18-P03) 114 RON
16 1 1 BUSHING (C002) 588 RON
17 1 1 SPRING (C003) 668 RON
18 1 1 SPACER (P016) 588 RON
19 1 1 KNOB (P006) 2182 RON
20 1 1 SCREW (M3X5 GB71-85) 668 RON
21 1 1 BUSH (1004704-86) 12361 RON
22 1 1 SLIDER SA (D1006-B01) 20216 RON
23 1 1 LENS (07BB-1) 40734 RON
24 1 1 SCREW (07BB-M04A) 668 RON
25 1 1 FILTER (07BB-C01) 4355 RON
26 1 1 COVER (P047) 944 RON
27 1 2 SCREW (M2.5X8 GB70-85) 588 RON
28 1 1 GASKET (C018) 944 RON
29 1 1 LEVEL (D3003A) 741 RON
30 1 1 SCREW (M2.5X6 GB818-85) 588 RON
31 1 1 KNOB SA (55-70391) 12361 RON
32 1 8 SCREW (M2.5X10 GB823-2000) 588 RON
33 1 1 PISTON (M033A) 82 RON
34 1 2 SHIM (C010) 668 RON
35 1 1 CONTROL SCREW (M034B) 944 RON
36 1 1 MOUNT (07BC-B01) 23244 RON
37 1 1 O RING (07BC-X02) 944 RON
38 1 1 LENS (07BC-2) 35435 RON
39 1 4 SCREW (M2.5X8 GB819-85) 588 RON
40 1 3 SCREW (M2X5 GB71-85) 668 RON
41 1 1 KNOB (07BC-M10) 3954 RON
42 1 1 COVER (07BC-X01) 1772 RON
43 1 1 CAP (07BC-P01) 1772 RON
44 1 4 SCREW (M2.5X10 GB823-2000) 588 RON
45 1 1 COVER (07Z-P01) 114 RON
46 1 1 GASKET (07Z-X05) 944 RON
47 1 3 SCREW (M2.5X8 GB70-85) 588 RON
48 1 1 PIN (07Z-BZ04) 944 RON
49 1 1 COMPENSATOR (07BA) 78485 RON
50 1 1 SHAFT (M001B) 5370 RON
51 1 1 SCREW (M5X12 GB70-85) 668 RON
52 1 1 SCREW (M2.5X8 GB71-85) 668 RON
53 1 1 SHIM (C007) 944 RON
54 1 1 RING (4-15) 944 RON
55 1 3 SPRING (M2.5X4 GB9074.6-88) 588 RON
56 1 3 SCREW (M4X4 GB73-85) 588 RON
57 1 3 WHEEL ADJUSTER (P021A) 3954 RON
58 1 1 COVER (A002) 10241 RON
59 1 3 BUSHING (C004) 588 RON
60 1 3 SUPPORT (M005) 114 RON
61 1 3 BALL (M004) 82 RON
62 1 1 BASE (07ZS-P03P) 2796 RON
63 1 3 SCREW (M4X8 GB823-88) 588 RON
64 1 3 SUPPORT (M007) 1630 RON
65 1 1 CIRCLIP (GB89401-86) 668 RON
66 1 1 BASE (A004NB) 24962 RON
67 1 3 BUSHING (06BG-C01) 588 RON
68 1 1 WASHER (C005) 2796 RON
69 1 1 SCALE (P008) 4827 RON
70 1 1 Gear (P010) 3954 RON
71 1 1 CIRCLIP (GB894.1-86) 668 RON
72 1 1 BUSHING (C001) 82 RON
73 1 1 BASE SA (D3001N-G) 57833 RON
81 1 1 SCREW (M2X4 GB818-85) 588 RON
82 1 1 INDICATOR (P002) 588 RON
84 1 1 SCREW (M2.5X4 GB818-85) 588 RON

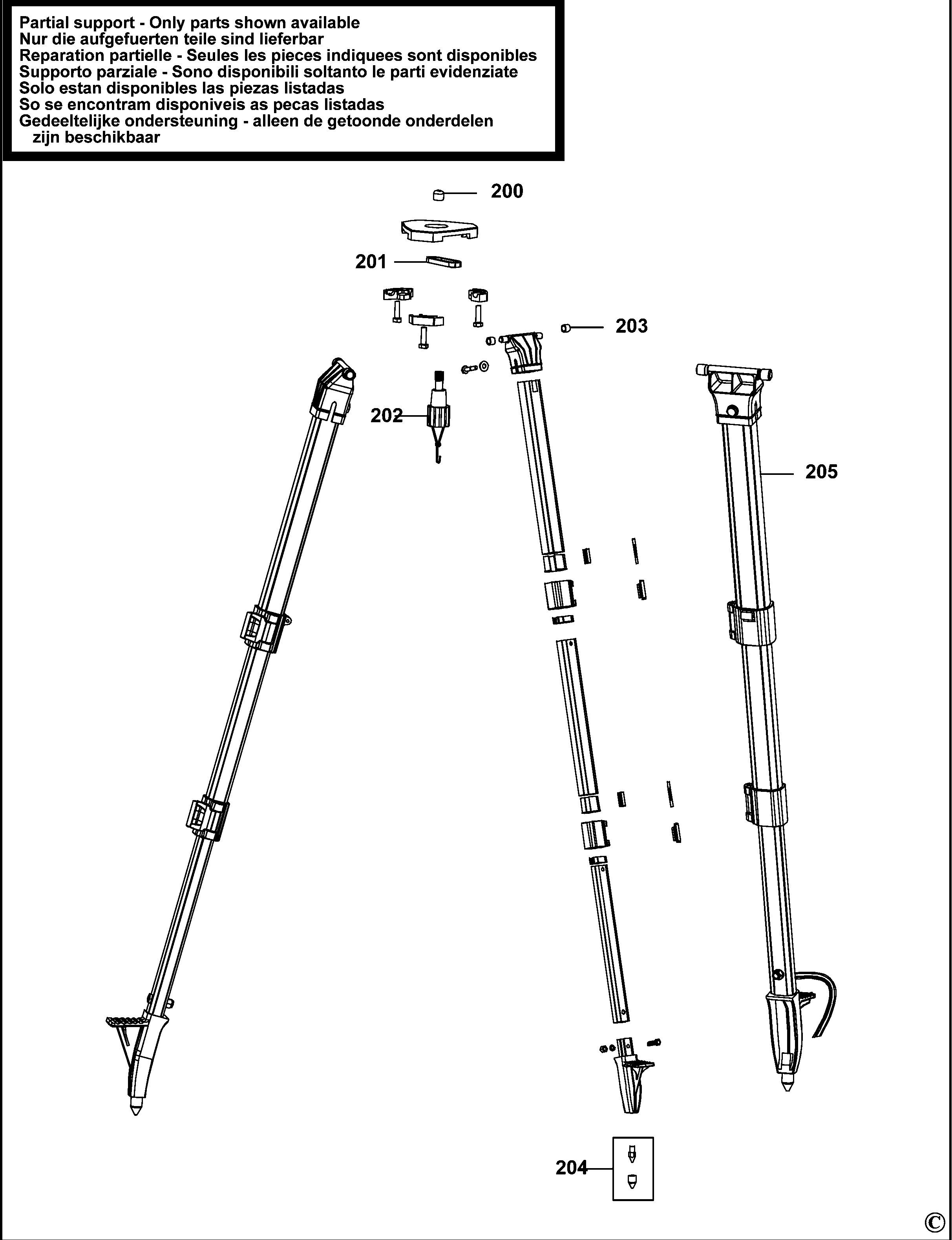

200 1 1 CAP (1004749-10) 1772 RON
201 1 3 ARM (1004749-39) 2796 RON
202 1 1 BELL (1004749-35) 11337 RON
203 1 6 BUSH (1004749-11) 1772 RON
204 1 3 FOOT SA (1004749-43) 4355 RON
205 1 3 LEG SA (1004749-44) 35435 RON
