Top » Piese de schimb » Piese Stanley » SFMCPS720B Type 1

FOARFECA DE GRADINA STANLEY SFMCPS720B Type 1
[SFMCPS720B Type 1]
FOARFECA DE GRADINA STANLEY SFMCPS720B Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA STANLEY SFMCPS720B Type 1
Click pentru a mari
FOARFECA DE GRADINA STANLEY SFMCPS720B Type 1
Click pentru a mari
FOARFECA DE GRADINA STANLEY SFMCPS720B Type 1
Click pentru a mari

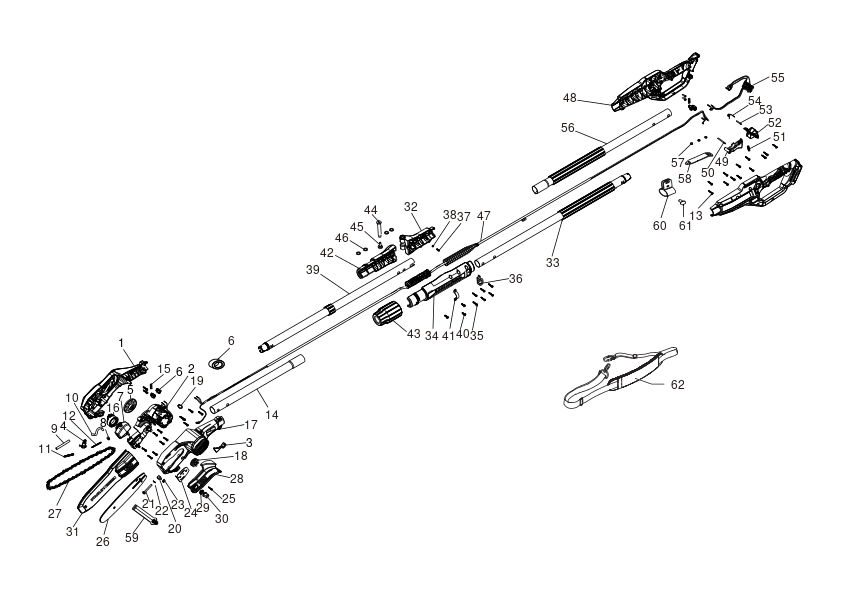

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE COVER (NA742467) 4355 RON
2 1 1 MOTOR GEARCASE (NA687228) 57833 RON
3 1 1 BAFFLE (NA363143) 588 RON
4 1 1 PUMP SA (90624557) 3954 RON
5 1 1 Gear (N597188) 3268 RON
6 1 1 CONNECTOR (NA096215) 588 RON
7 1 1 TANK (NA374397) 3268 RON
8 1 1 VALVE (90618295) 588 RON
9 1 1 TUBE OIL (NA597989) 588 RON
10 1 1 TUBE OIL (90595109) 668 RON
11 1 1 SPRING (NA597990) 588 RON
12 1 1 SPRING (NA597991) 588 RON
13 1 28 SCREW (N887126) 588 RON
14 1 1 POLE PIECE (NA334815) 4827 RON
15 1 2 CLAMP CORD CORNER (329301-00) 558 RON
16 1 1 CAP SA (NA366348) 2796 RON
17 1 1 HOUSING (NA602144) 4827 RON
18 1 1 SPROCKET (N597159) 114 RON
19 1 1 LOCKING RING (624521-00) 558 RON
20 1 1 CLAMP (N597160) 944 RON
21 1 1 SCREW (N601071) 588 RON
22 1 1 WASHER (90519433) 558 RON
23 1 1 CLAMP (N625741) 588 RON
24 1 1 PLATE (NA324562) 668 RON
25 1 1 SCREW PLASTIC THD FORM (330019-00) 558 RON
26 1 1 STZCS1220-XJ - Indisponibil
27 1 1 STZCS220-XJ - Indisponibil
28 1 1 COVER (NA602146) 1630 RON
29 1 1 BUSHING (NA161783) 668 RON
30 1 1 NUT (NA630227) 1318 RON
31 1 1 SHEATH (NA602148) 2556 RON
32 1 1 PIVOT (NA334807) 1933 RON
33 1 1 POLE PIECE (NA731464) 11337 RON
34 1 1 COVER (NA602152) 4827 RON
35 1 6 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
36 1 1 HOOK (N537367) 114 RON
37 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
38 1 1 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
39 1 1 POLE PIECE SA (NA602158) 10241 RON
40 1 3 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
41 1 1 CLAMP (NA525308) 588 RON
42 1 1 PIVOT (NA334819) 2556 RON
43 1 1 COLLAR (NA571721) 2556 RON
44 1 1 BOLT (NA523613) 114 RON
45 1 1 BOLT (NA523696) 588 RON
46 1 4 WASHER (NA524643) 588 RON
47 1 1 WIRE HARNESS (NA646373) 23244 RON
48 1 1 HANDLE SA (NA602154) 13697 RON
49 1 1 TRIGGER (NA518759) 944 RON
50 1 1 PIN (NA549962) 588 RON
51 1 1 SPRING (NA597805) 588 RON
52 1 1 LEVER LOCK-OFF (NA518760) 944 RON
53 1 1 PIN (5119820-00) 588 RON
54 1 1 SPRING (NA549654) 588 RON
55 1 1 WIRE HARNESS (NA356807) 741 RON
56 1 1 POLE PIECE SA (NA557048) 741 RON
57 1 1 MAGNET (NA686495) 588 RON
58 1 1 STRAP (NA576064) 2182 RON
59 1 1 WRENCH (NA174031) 1772 RON
60 1 1 BRACKET (NA576117) 2796 RON
61 1 1 SCREW (90641381) 588 RON
62 1 1 BELT (N718978) 4355 RON
63 1 1 CORE (NA708234) 1772 RON
821 1 1 RATING LABEL (NA571727) 588 RON
