FOARFECA DE GRADINA STANLEY SFMCPP632B Type 1
[SFMCPP632B Type 1]
FOARFECA DE GRADINA STANLEY SFMCPP632B Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA STANLEY SFMCPP632B Type 1
Click pentru a mari
FOARFECA DE GRADINA STANLEY SFMCPP632B Type 1
Click pentru a mari

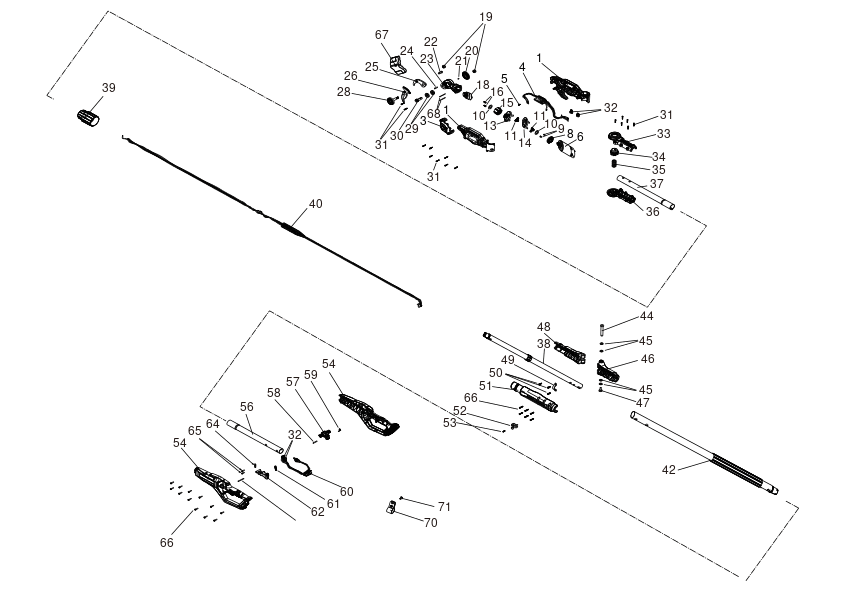

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA594760) 5370 RON
3 1 1 COVER (NA547233) 1630 RON
4 1 1 MODULE (NA534024) 27287 RON
5 1 1 SCREW (N756541) 588 RON
6 1 1 MOTOR PINION (NA695434) 16689 RON
8 1 1 ADAPTOR (N928971) 588 RON
9 1 2 SCREW (90566914) 588 RON
10 1 2 PLATE (N930006) 588 RON
11 1 6 Gear (N928176) 588 RON
13 1 1 CARRIER SA (N928161) 944 RON
14 1 1 CARRIER SA (N936784) 944 RON
15 1 1 Gear (N928174) 1772 RON
16 1 2 SCREW (N118088) 558 RON
18 1 1 BEARING SA (NA152853) 741 RON
19 1 2 Stop Nut M8 (330021-02) 558 RON
20 1 1 BEVEL GEAR (N927501) 4827 RON
21 1 1 KEY (NA018769) 588 RON
22 1 1 BOLT (NA070528) 114 RON
23 1 1 GEARCASE (NA070478) 6688 RON
24 1 1 PIN (NA070509) 588 RON
25 1 1 BLADE (N600118) 12361 RON
26 1 1 BLADE (NA070678) 18568 RON
28 1 1 NUT (NA070677) 2796 RON
29 1 2 BEARING (330003-38) 6688 RON
30 1 1 PINION (N927926) 3954 RON
31 1 15 SCREW PLASTIC THD FORM (330019-00) 558 RON
32 1 2 CONNECTOR (NA096215) 588 RON
33 1 1 HOUSING UPPER (NA531186) 2182 RON
34 1 1 BUTTON (NA607602) 82 RON
35 1 1 SPRING (NA543599) 588 RON
36 1 1 HOUSING LOWER (NA531188) 2182 RON
37 1 1 POLE PIECE (NA549947) 3954 RON
38 1 1 POLE PIECE (NA334816) 9012 RON
39 1 1 COLLAR (NA571721) 2556 RON
40 1 1 WIRE HARNESS (NA534026) 20216 RON
42 1 1 POLE PIECE (NA334817) 10241 RON
44 1 1 BOLT (NA523613) 114 RON
45 1 4 WASHER (NA524643) 588 RON
46 1 1 PIVOT (NA334807) 1933 RON
47 1 1 BOLT (NA523696) 588 RON
48 1 1 PIVOT (NA334819) 2556 RON
49 1 1 CLAMP (NA525308) 588 RON
50 1 3 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
51 1 1 COVER (NA602152) 4827 RON
52 1 1 HOOK (N537367) 114 RON
53 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
54 1 1 HOUSING SA (NA594750) 13697 RON
56 1 1 POLE PIECE (NA531728) 3954 RON
57 1 1 LEVER LOCK-OFF (NA518760) 944 RON
58 1 1 PIN (5119820-00) 588 RON
59 1 1 SPRING (NA657879) 588 RON
60 1 1 WIRE HARNESS (NA534027) 6688 RON
61 1 1 SPRING (NA597805) 588 RON
62 1 1 TRIGGER (NA518759) 944 RON
63 1 1 PIVOT (N670326) 588 RON
64 1 1 CLAMP CORD CORNER (329301-00) 558 RON
65 1 2 SCREW (373158) 558 RON
66 1 1 SCREW (N887126) 588 RON
67 1 1 SHEATH (NA564909) 1933 RON
68 1 2 PIN (N030622) 558 RON
70 1 1 BRACKET (NA576117) 2796 RON
71 1 1 SCREW (90641381) 588 RON
