Top » Piese de schimb » Piese Stanley » SFMCS650B Type 1

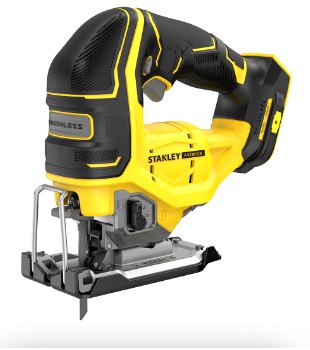

FIERASTRAU PENDULAR STANLEY SFMCS650B Type 1
[SFMCS650B Type 1]
FIERASTRAU PENDULAR STANLEY SFMCS650B Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU PENDULAR STANLEY SFMCS650B Type 1
Click pentru a mari
FIERASTRAU PENDULAR STANLEY SFMCS650B Type 1
Click pentru a mari

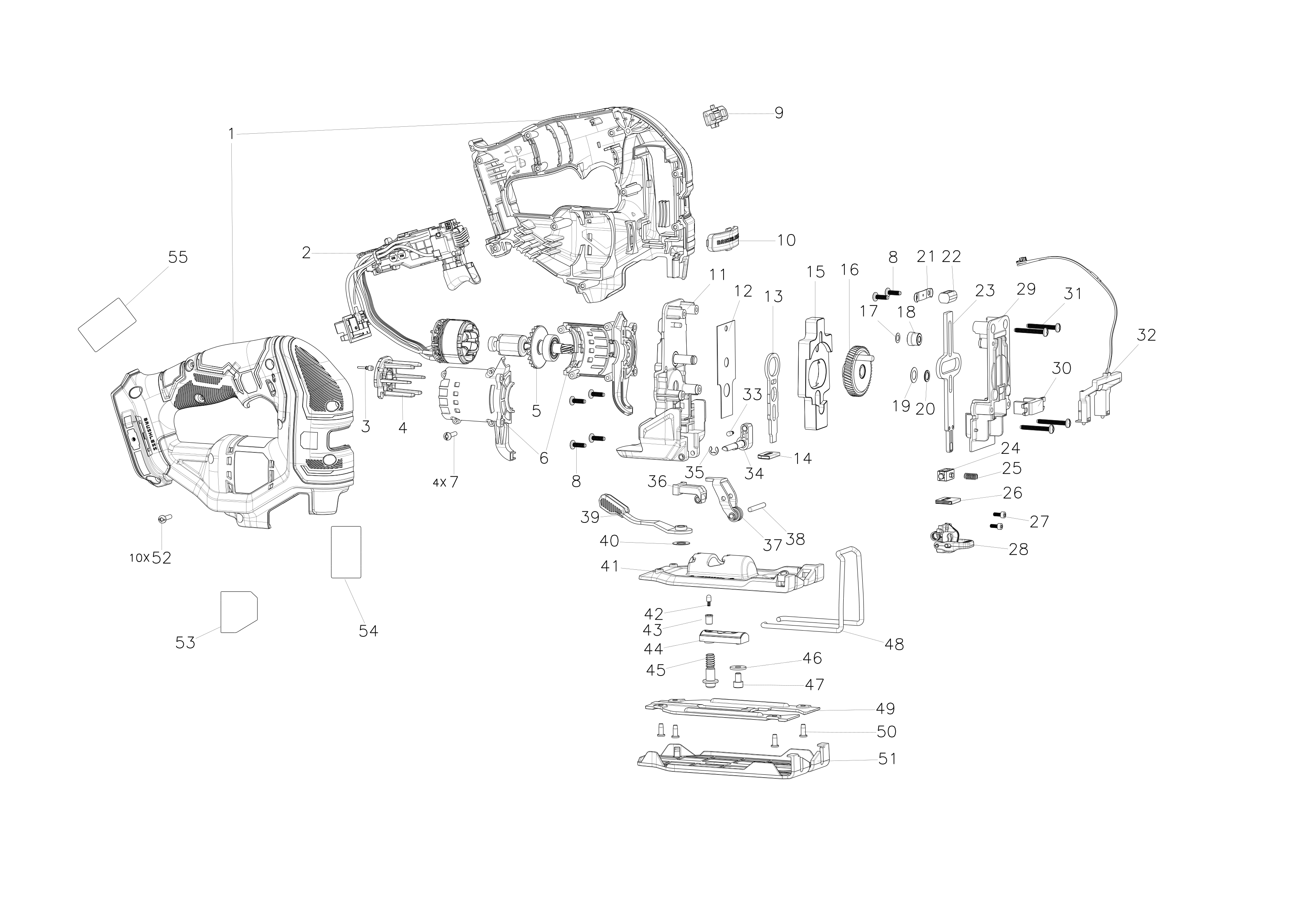

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (N815258) 13697 RON
2 1 1 SWITCH SA (NA005529) 73079 RON
3 1 1 PLUG (N593131) 588 RON
4 1 1 ADAPTOR (N694877) 668 RON
5 1 1 ROTOR SA (NA005533) 24962 RON
6 1 1 MOTOR HOUSING SA (N803479) 1772 RON
7 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
8 1 6 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
9 1 1 SWITCH LOCK OFF (N815227) 588 RON
10 1 1 LABEL (N857338) 668 RON
11 1 1 CASTING SA (NA005537) 21676 RON
12 1 1 PLATE (N769864) 588 RON
13 1 1 FORK (N765718) 3268 RON
14 1 1 SEAL SA (N723984) 1772 RON
15 1 1 COUNTER BALANCE (N765716) 5370 RON
16 1 1 GEAR SA (NA005543) 13697 RON
17 1 1 WASHER (N826283) 588 RON
18 1 1 BEARING (N765717) 588 RON
19 1 1 WASHER (N784853) 588 RON
20 1 1 RING (N802770) 588 RON
21 1 1 CLAMP BEARING (582261-00) 558 RON
22 1 1 BEARING (490329-01) 1318 RON
23 1 1 SHAFT (N765721) 4355 RON
24 1 1 SUPPORT BEARING (490330-01) 114 RON
25 1 1 SPRING COMPRESSION (N875896) 588 RON
26 1 1 N882195 - Indisponibil
26 1 1 FELT SEAL (NA354361) 10241 RON
27 1 2 370167-00 - Indisponibil
28 1 1 BLADE CLAMP (NA005544) 12361 RON
29 1 1 GEARCASE COVER (N765720) 5370 RON
30 1 1 CARRIER (490331-01) 944 RON
31 1 4 SCREW METAL THREAD FORM M4 * 30 T20 (330045-09) 558 RON
32 1 1 LED & POWER SUPPLY KIT (N876777) 4355 RON
33 1 1 INDEXING BOLT (N403227) 588 RON
34 1 1 LEVER (N857641) 3954 RON
35 1 1 CLIP (1007796-00) 588 RON
36 1 1 DUST DEFLECTOR (N777271) 668 RON
37 1 1 CRANK (NA005550) 11337 RON
38 1 1 ROLL PIN (1007511-00) 944 RON
39 1 1 LEVER SA (N859890) 1933 RON
40 1 1 WASHER M8 * 15.5 * 0.5 (582829-00) 558 RON
41 1 1 SHOE (N822273) 9012 RON
42 1 1 INDEXING BOLT (N403227) 588 RON
43 1 1 DETENT (N826877) 588 RON
44 1 1 CLAMPING BAR (N516006) 2182 RON
45 1 1 BOLT M8 * 2 PITCH (582826-00) 893 RON
46 1 1 WASHER PLAIN (640591-00) 558 RON
47 1 1 BOLT (N595379) 588 RON
48 1 1 GUARD (N801965) 2182 RON
49 1 1 SHOE (N862601) 3954 RON
50 1 4 SCREW M4X10 JIGSAW SOLE PLATE (N056875) 558 RON
51 1 1 SOLE PLATE (N825458) 114 RON
52 1 10 Screw M3.5X16 T15 (330019-03) 558 RON
53 1 1 N911825 - Indisponibil
53 1 1 RATING LABEL (NA590798) 588 RON
53 1 1 NA734812 - Indisponibil
999 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
