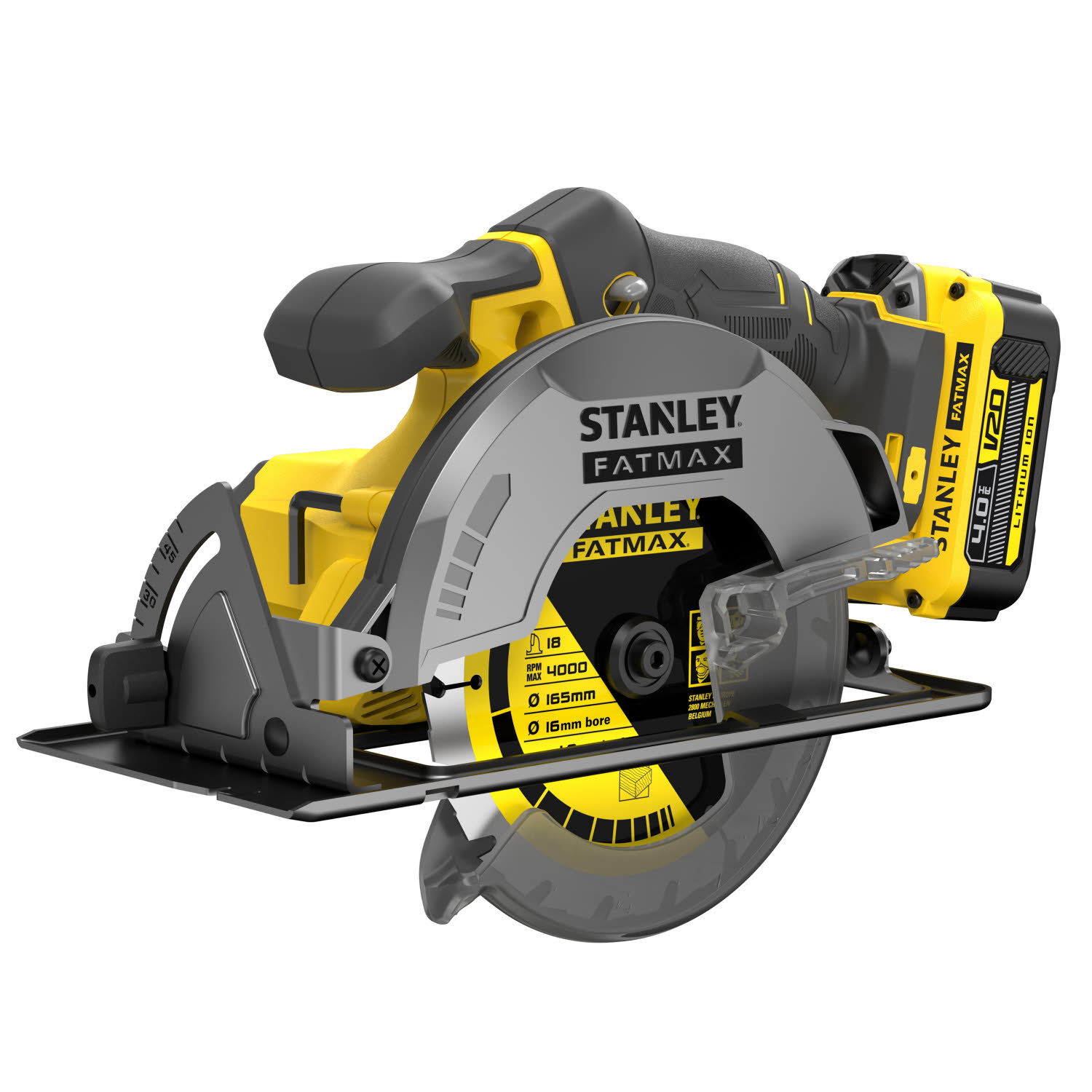

FIERASTRAU CIRCULAR STANLEY SFMCS500B Type 1
[SFMCS500B Type 1]

Imagini suplimentare

Click pentru a mari

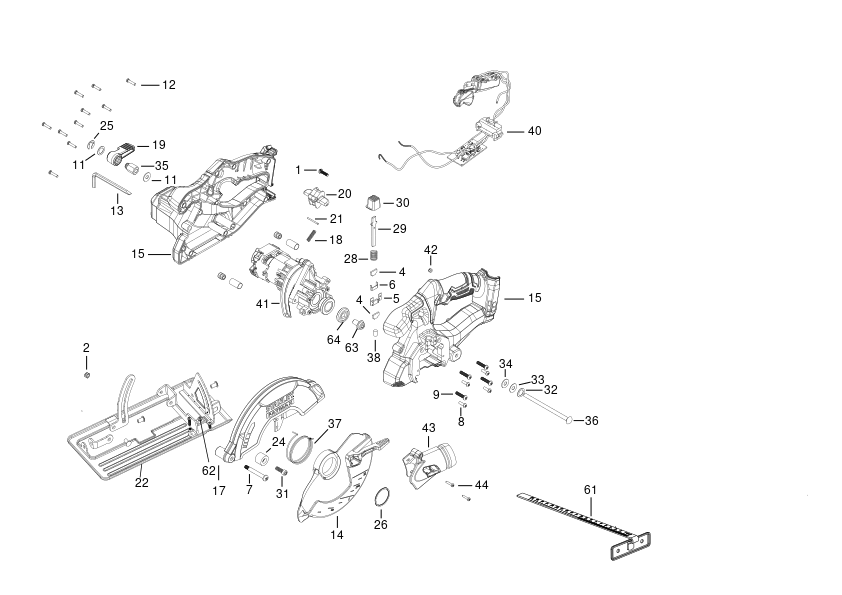

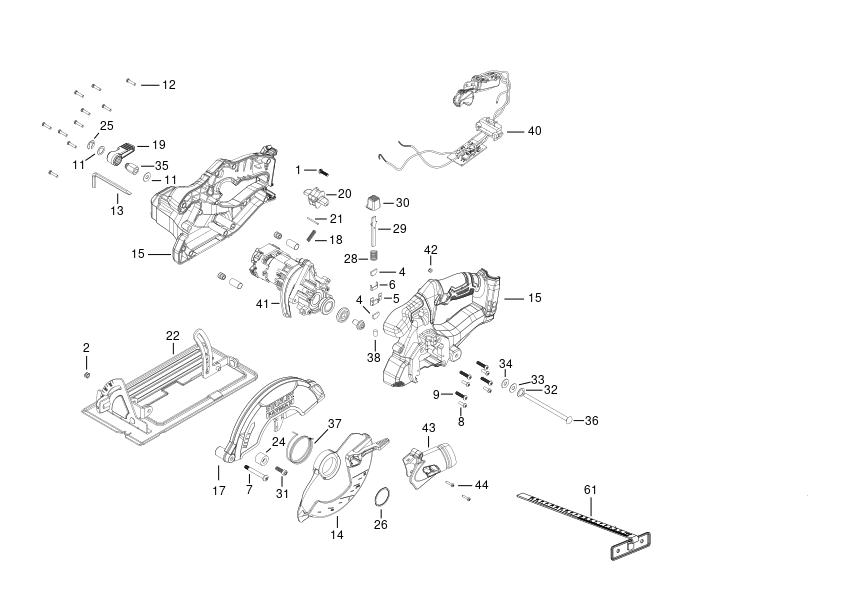

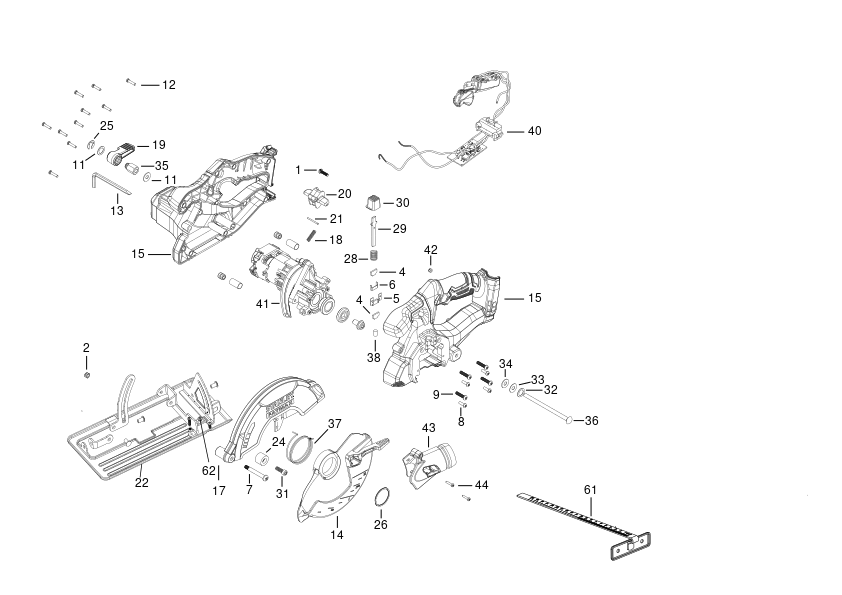

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	SCREW (N602673)	5⁸⁸ RON
2	1	1	NUT kc1440 (497557-00)	5⁵⁸ RON
4	1	2	FELT SEAL (5148016-00)	5⁸⁸ RON
5	1	1	COVER (5148017-00)	5⁸⁸ RON
6	1	1	HOLDER (5148018-00)	5⁸⁸ RON
7	1	1	SCREW (5148557-01)	5⁸⁸ RON
8	1	4	SCREW (5148739-00)	5⁸⁸ RON
9	1	4	SCREW (5148755-00)	5⁸⁸ RON
11	1	1	WASHER (932302-00)	5⁵⁸ RON
12	1	10	SCREW (N602671)	5⁸⁸ RON
13	1	1	HEX KEY (90502723)	7⁸¹ RON
14	1	1	GUARD LOWER (N567730)	39⁵⁴ RON
15	1	1	CLAMSHELL PAIR (N715179)	102⁴¹ RON
17	1	1	GUARD UPPER (N688173)	39⁵⁴ RON
18	1	1	SPRING (90591452)	5⁸⁸ RON
19	1	1	LEVER (90591864)	6⁶⁸ RON
20	1	1	BUTTON LOCK-OFF (N575803)	5⁸⁸ RON
21	1	1	PIN (90592043)	5⁸⁸ RON
22	1	1	SHOE SA (N575805)	123⁶¹ RON
24	1	1	BUMPER (90595755-02)	9⁴⁴ RON
25	1	1	RING (90596628)	5⁸⁸ RON
26	1	1	RING (90596839)	9⁴⁴ RON
28	1	1	SPRING (90597576)	5⁸⁸ RON
29	1	1	ROD (90597577)	6⁶⁸ RON
30	1	1	LOCK BUTTON (90597629-01)	11⁴ RON
31	1	1	SCREW (90609243)	5⁸⁸ RON
32	1	1	WASHER (90599319)	5⁸⁸ RON
33	1	1	WASHER (90601947)	5⁸⁸ RON
34	1	2	WASHER (90601948)	5⁸⁸ RON
35	1	1	NUT M6 (90602277-01)	9⁴⁴ RON
36	1	1	BOLT (90602278-01)	9⁴⁴ RON
37	1	1	SPRING (90602791)	6⁶⁸ RON
39	1	1	PLUG (5149025-00)	5⁸⁸ RON
40	1	1	SWITCH & PCB SA (N743008)	307⁶⁹ RON
41	1	1	GEARBOX SA (N640267)	407³⁴ RON
42	1	1	NUT (90556571)	5⁸⁸ RON
43	1	1	DUST PORT (N742612)	27⁹⁶ RON
44	1	2	SCREW (5101046-00)	5⁸⁸ RON
61	1	1	FENCE (90568785)	17⁷² RON
62	1	1	SCREW (90507876-01)	5⁸⁸ RON
63	1	1	BOLT (NA647293)	5⁸⁸ RON
64	1	1	WASHER CLAMP (NA643281)	9⁴⁴ RON
