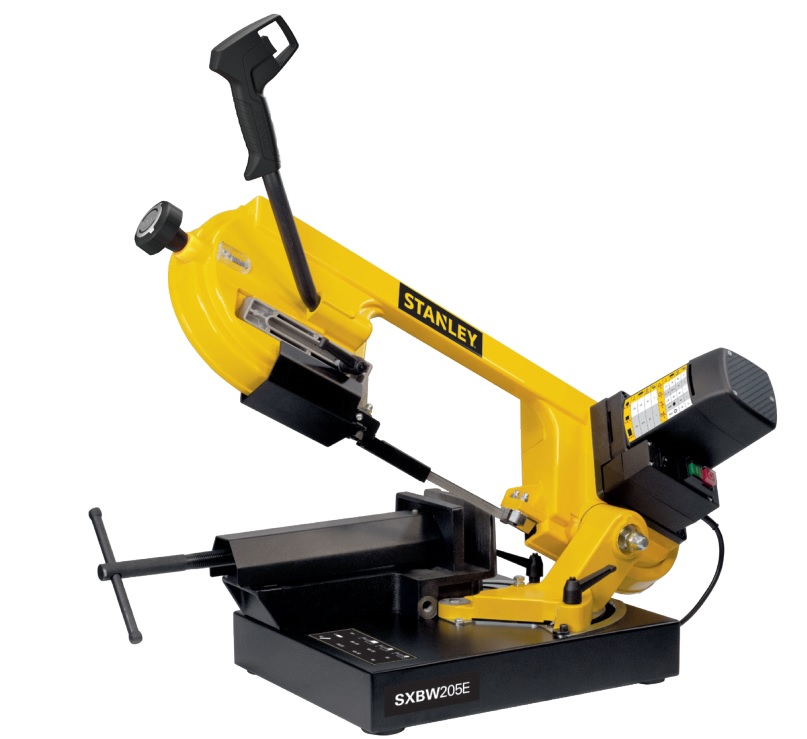

FIERASTRAU CU BANDA STANLEY SXBW205E Type 1
[SXBW205E Type 1]
FIERASTRAU CU BANDA STANLEY SXBW205E Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU CU BANDA STANLEY SXBW205E Type 1
Click pentru a mari
FIERASTRAU CU BANDA STANLEY SXBW205E Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (311499) 4355 RON
2 1 1 SPRING (5080132) 27287 RON
3 1 1 BUSHING (63040) 2796 RON
4 1 1 WASHER (5124050) 3954 RON
5 1 2 LEVER (147010) 6688 RON
6 1 1 CLAMP SA (7130678) 236862 RON
7 1 1 PIVOT SA (5138131) 113822 RON
8 1 2 WASHER (120114) 668 RON
9 1 1 NUT (100714) 944 RON
10 1 1 CAP (102114) 2796 RON
11 1 1 INDEX (5159503) 3268 RON
15 1 1 ROD DEPTH (7130552) 21676 RON
16 1 1 BASE (5133769) 228616 RON
17 1 4 SCREW (320616) 668 RON
18 1 2 ECCENTRIC (5124029) 1630 RON
19 1 1 PLASTIC ADAPTOR (5138042) 25728 RON
20 1 2 RIVET (402905) 668 RON
22 1 4 CONNECTING ROD (320825) Indisponibil Indisponibil
27 1 2 BUSHING (5063067) 5370 RON
28 1 1 CONNECTING ROD (5142105) 9012 RON
29 1 1 BRACKET (5137778) 13697 RON
30 1 4 FEET (5137793) 1318 RON
36 1 1 BOLT (5171087) 6688 RON
42 1 2 HANDLE (5140002) 2796 RON
47 1 1 COVER (5182828) 16689 RON
48 1 2 SCREW (400605) 668 RON
49 1 2 PIN (150701) 1318 RON
50 1 1 Gear (7213019) 60451 RON
51 1 2 BEARING (606005) 11337 RON
52 1 1 SCREW (330406) 668 RON
53 1 1 COVER (5183066) 3954 RON
54 1 1 ARM (5042954) 125542 RON
54 1 1 ARM (5042953) 236862 RON
56 1 1 WOODRUFF KEY (150149) 944 RON
57 1 3 GUIDE (5154103) 944 RON
59 1 1 WHEEL (5214022) 63720 RON
61 1 1 NUT (101412) 944 RON
63 1 1 SHAFT (5001568) 39318 RON
64 1 1 SLIDER (5137808) 27287 RON
65 1 1 WASHER (155149) 944 RON
66 1 1 BEARING (606204) 13697 RON
67 1 1 WASHER (155116) 944 RON
68 1 1 WHEEL (7214210) 85494 RON
69 1 1 PROTECTOR (5181736) 85494 RON
73 1 1 WASHER (5124047) 3268 RON
74 1 1 WHEEL (5214222) 85494 RON
75 1 1 TENSION BLOCK (7130776) 48037 RON
76 1 1 SPACER (5120638) 114 RON
77 1 2 BEARING (590624) 6688 RON
78 1 1 PROTECTOR (5181739) 10241 RON
79 1 19 SPRING (80259) 1318 RON
80 1 1 SPACER (5122024) 3954 RON
82 1 1 SCREW (5100504) 5370 RON
83 1 1 SPRING (5081005) 2556 RON
85 1 8 GUIDE (5130734) 1933 RON
88 1 1 PROTECTOR (5181737) 32327 RON
89 1 1 CABLE (5871048) 13697 RON
90 1 1 HANDLE LH (5050170) 3268 RON
92 1 1 HANDLE RH (5050169) 3954 RON
93 1 1 LEVER (5142119) 30769 RON
94 1 1 INDEX (5159504) 1318 RON
95 1 2 NEEDLE (179901) 1630 RON
96 1 1 SCREW (320835) 668 RON
97 1 1 TRIGGER (802317) 11337 RON
100 1 4 CAP (102106) 944 RON
101 1 3 WASHER (120206) 668 RON
102 1 2 WASHER (120718) 82 RON
103 1 1 LEVER (147006) 741 RON
105 1 1 NEEDLE (174016) 82 RON
106 1 5 WASHER (129004) 668 RON
110 1 8 BEARING (600607) 4827 RON
115 1 1 PROTECTOR (5181854) 13697 RON
116 1 2 SCREW (5100064) 741 RON
117 1 2 SCREW (5100065) 10241 RON
118 1 1 GUIDE (5130771) 16689 RON
119 1 1 WASHER (155140) 668 RON
120 1 1 GEAR SA (7213021) 48037 RON
121 1 3 SCREW (424060) 668 RON
122 1 1 MOTOR COVER (5182519) 3954 RON
124 1 1 SWITCH (802314) 4355 RON
125 1 1 FAN (5112021) 3954 RON
126 1 1 CORDSET (5871047) 10241 RON
127 1 1 MOTOR SA (7801614) 176482 RON
129 1 1 CORD CLAMP (5154501) 1318 RON
131 1 1 SCREW (320540) 668 RON
132 1 2 SUPPORT (5850005) 10241 RON
133 1 1 SWITCH (1004786-48) 20216 RON
135 1 1 COVER (5182517) 13697 RON
137 1 2 BRUSH (5850109) 741 RON
138 1 1 THERMOSTAT (816003) 18568 RON
145 1 1 FILTER (816004) 23244 RON
146 1 1 HOUSING (5182823) 5370 RON
148 1 1 COVER (5182509) 63720 RON
149 1 1 ARMATURE SA (7013130) 99395 RON
150 1 1 FIELD SA (5024111) 63720 RON
151 1 1 MOTOR COVER (5182839) 741 RON
152 1 1 BEARING (731012) 10241 RON
153 1 1 GEAR SA (7213018) 49827 RON
154 1 2 BEARING (730609) 741 RON
155 1 1 SUPPORT (5181883) 4827 RON
156 1 1 5181884 - Indisponibil
156 1 1 PROTECTOR (5181880) 10241 RON
157 1 1 CORD PROTECTOR (5181004) 1933 RON
800 1 1 WHEEL SA (7075165) 40734 RON
