CUT SAW STANLEY FME365 Type 1
[FME365 Type 1]
CUT SAW STANLEY FME365 Type 1
Click pentru a mari
Imagini suplimentare
CUT SAW STANLEY FME365 Type 1
Click pentru a mari
CUT SAW STANLEY FME365 Type 1
Click pentru a mari

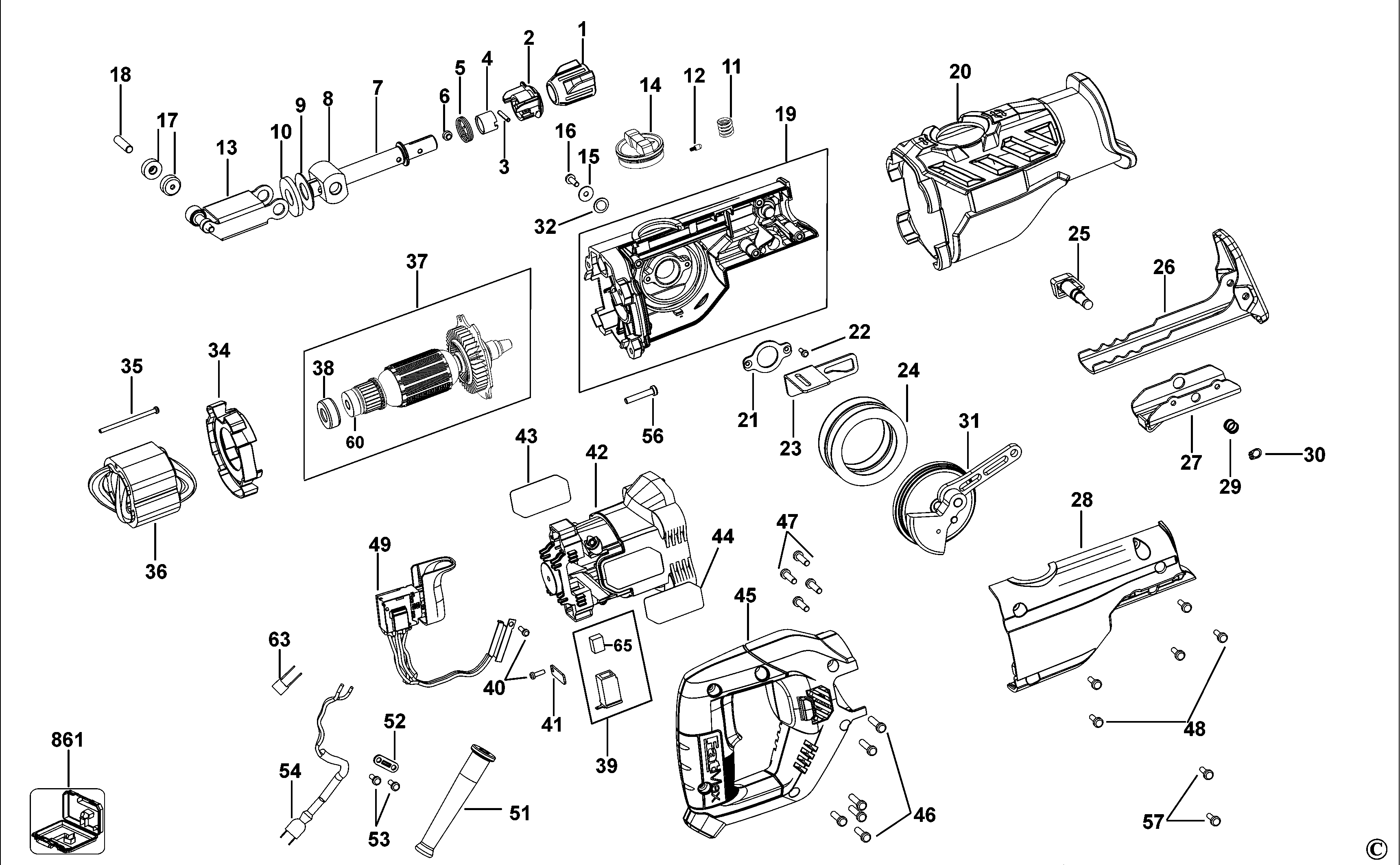

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOOT (90562315) 781 RON
2 1 1 COLLAR (90562332) 4137 RON
3 1 1 PIN (90570102) 558 RON
4 1 1 SLEEVE (90562334) 781 RON
5 1 1 SPRING (90562333) 558 RON
6 1 1 PIN (90562314) 1229 RON
7 1 1 SHAFT SA (90587516) 4472 RON
8 1 1 BEARING (90587517) 2347 RON
9 1 1 WASHER (90562321) 781 RON
10 1 1 FELT SEAL (90562320) 781 RON
11 1 1 SPRING COMPRESSION (90562319) 558 RON
12 1 1 INDEXING BOLT (N403227) 588 RON
12 1 1 DETENT (326467-00) 558 RON
13 1 1 TRACK (90587518) 4137 RON
14 1 1 KNOB SA (90583997) 1117 RON
15 1 1 WASHER (90563044) 558 RON
16 1 1 SCREW (90563040) 558 RON
17 1 2 ROLLER (90562303) 781 RON
18 1 1 PIN (90562304) 558 RON
19 1 1 GEAR CASE SA (90587519) 14315 RON
20 1 1 RUBBER BOOT (90574947) 9282 RON
21 1 1 BEARING PLATE (90562305) 781 RON
22 1 2 SCREW (90502260) 558 RON
23 1 1 ACTUATOR (90562299) 1452 RON
24 1 1 BEARING THRUST (90563562) 4137 RON
25 1 1 BUTTON SA (90583996) 190 RON
26 1 1 SHOE SA (90563570) 4137 RON
27 1 1 SUPPORT PLATE (90562309) 2347 RON
28 1 1 COVER SA (90587520) 7940 RON
29 1 1 SPRING (618427-00) 558 RON
30 1 1 CLIP (90552725) 558 RON
31 1 1 GEAR SA (90563563) 15993 RON
32 1 1 98197-03 - Indisponibil
32 1 1 WASHER (098197-03) 558 RON
34 1 1 BAFFLE FAN (90562519) 893 RON
35 1 2 Screw M3.12X52 (330019-64) 558 RON
36 1 1 FIELD 230V (90587521) 11519 RON
37 1 1 ARMATURE 230V (90587522) 1891 RON
37 1 1 ARMATURE SA (90636471) 25728 RON
38 1 1 CAP (90565402) 558 RON
39 1 1 BRUSH PAIR 230V (90587523) 3018 RON
40 1 3 SCREW (330019-28) 588 RON
41 1 1 BRUSH HOLDER (90561435) 781 RON
42 1 1 FIELDCASE (90582682) 4472 RON
43 1 1 RATING PLATE (90583465) 558 RON
44 1 1 BRAND LABEL (90583466) 558 RON
44 1 1 BRAND LABEL (90607347) 588 RON
45 1 1 HANDLE SA (90587524) 7940 RON
46 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
47 1 4 screw dw744 (330019-12) 558 RON
48 1 5 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
49 1 1 SWITCH (90563353) 7940 RON
51 1 1 N542553 - Indisponibil
51 1 1 PROTECTOR CORD (330005-01) 105 RON
51 1 1 CORD PROTECTOR (N918736) 668 RON
52 1 1 CLAMP CORD CORNER (329301-00) 558 RON
53 1 2 Screw M3.5 X9.5 (330019-01) 558 RON
54 1 1 CORDSET (M/PLUG) GB (90579848) 10512 RON
56 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
57 1 2 SCREW (90568551) 558 RON
60 1 1 BEARING (574853-08) 1117 RON
63 1 1 CAPACITOR (90568607) 893 RON
65 1 1 BRUSH PAIR 230V SA (90569536) 3466 RON
861 1 1 KITBOX (90580689) 17335 RON
861 1 1 KIT BOX (90580689-01) 20216 RON
