CIOCAN ROTOPERCUTOR STANLEY SHR243K Type 1
[SHR243K Type 1]
CIOCAN ROTOPERCUTOR STANLEY SHR243K Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR STANLEY SHR243K Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR STANLEY SHR243K Type 1
Click pentru a mari

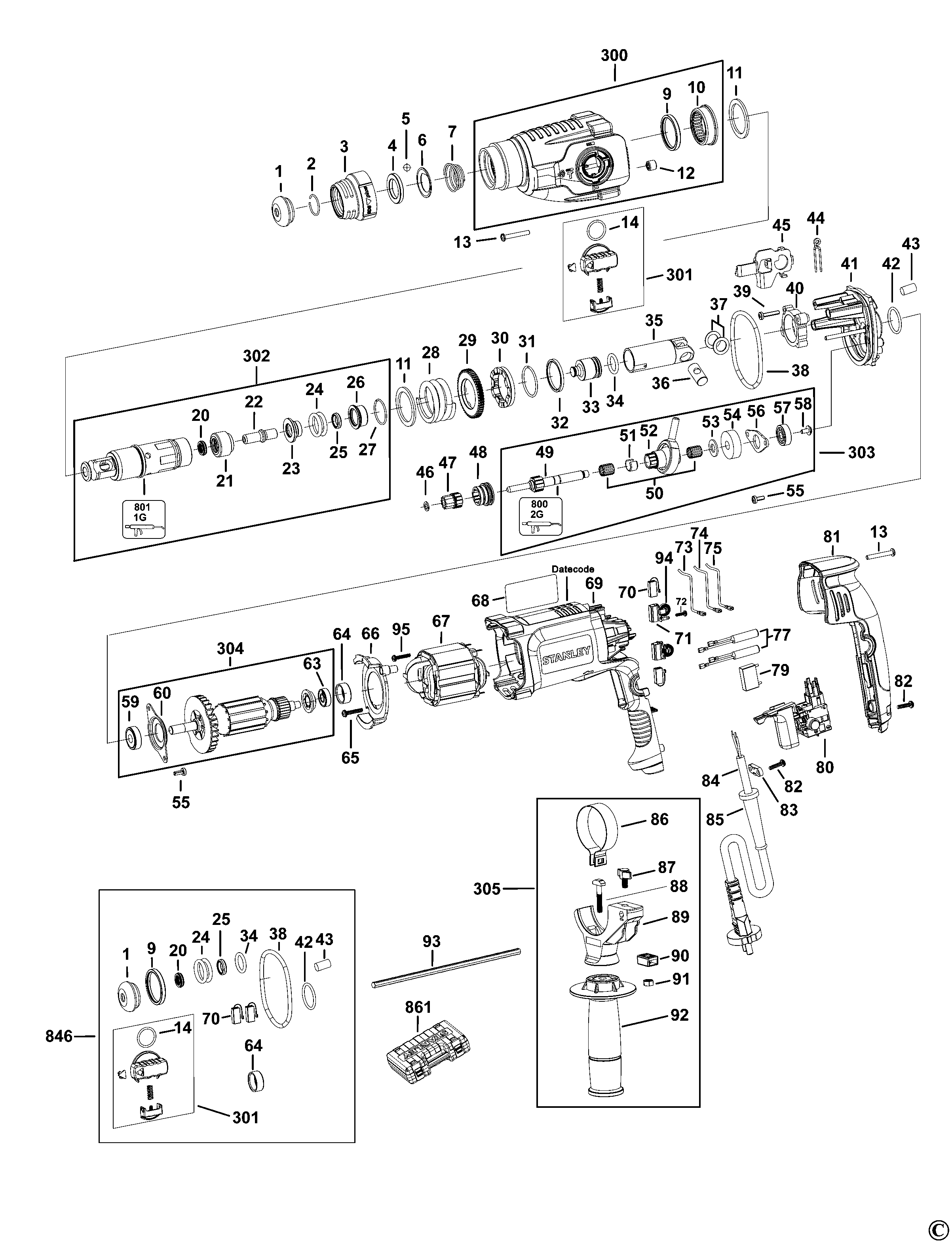

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RUBBER BOOT (N465557) 668 RON
2 1 1 CIRCLIP (4030104010) 588 RON
3 1 1 TUBE (N465555) 668 RON
4 1 1 WASHER. CUP (4030104020) 668 RON
5 1 1 BALL STEEL (4030304014) 588 RON
6 1 1 RETAINER (4030104006) 588 RON
7 1 1 SPRING COMPRESSION (4030108003) 588 RON
9 1 1 SEAL (N465532) 82 RON
10 1 1 BEARING NEEDLE-1 (577813-00) 3018 RON
11 1 2 WASHER (N465552) 668 RON
12 1 1 BEARING (N465533) 944 RON
13 1 5 SCREW (N468888) 588 RON
14 1 1 O RING (4030303002) 588 RON
20 1 1 RING (N465542) 668 RON
21 1 1 BEARING (N465543) 2556 RON
22 1 1 BEAT PIECE (N465541) 1772 RON
23 1 1 DAMPER (N465545) 2796 RON
24 1 2 O RING (N465544) 668 RON
25 1 1 RING (N465547) 944 RON
26 1 1 RAM (N465546) 1933 RON
27 1 1 RING (N465548) 588 RON
28 1 1 SPRING (N465551) 1933 RON
29 1 1 N531538 - Indisponibil
29 1 1 Gear (N465550) 5370 RON
30 1 1 N531539 - Indisponibil
30 1 1 RING (N465549) 3268 RON
31 1 1 RING (N465553) 588 RON
32 1 1 RING (N465554) 588 RON
33 1 1 RAM (N465560) 2556 RON
34 1 1 O RING (N465561) 944 RON
35 1 1 PISTON (N465559) 3954 RON
35 1 1 NA783992 - Indisponibil
36 1 1 BEARING SPINDLE (N465562) 1630 RON
37 1 2 WASHER (N465563) 588 RON
38 1 1 O RING (N465535) 588 RON
39 1 3 SCREW (N465538) 588 RON
40 1 1 BEARING (N465537) 2182 RON
41 1 1 HOUSING BEARING (N465534) 4355 RON
42 1 1 O RING (4030103003) 588 RON
43 1 1 FELT (N465536) 588 RON
44 1 1 SPRING (N465523) 588 RON
45 1 1 PLATE (N465521) 82 RON
46 1 1 WASHER (N465566) 588 RON
47 1 1 Gear (N465567) 4827 RON
48 1 1 COLLAR (N465568) 1933 RON
49 1 1 INTER SHAFT (N465565) 5370 RON
50 1 2 BEARING CAGE 9X12X13 (577818-00) 944 RON
51 1 1 SPACER (N465570) 588 RON
52 1 1 BEARING (N465569) 11337 RON
53 1 1 WASHER (N465574) 588 RON
54 1 1 Gear (N465573) 3268 RON
54 1 1 Gear (NB075029) 2182 RON
55 1 4 SCREW (N468881) 588 RON
56 1 1 BEARING PLATE (N465576) 588 RON
57 1 1 BEARING (49106007) 114 RON
58 1 1 SCREW (N468882) 588 RON
59 1 1 BEARING (49111014) 1933 RON
60 1 1 BEARING PLATE (N465516) 114 RON
63 1 1 BEARING (49111011) 944 RON
64 1 1 SLEEVE BEARING (4140303002) 588 RON
65 1 2 SCREW (N496704) 588 RON
66 1 1 GUIDE (N465511) 588 RON
67 1 1 FIELD SA (N531440) 9012 RON
69 1 1 HOUSING MOTOR (N531520) 5370 RON
70 1 1 BRUSH PAIR 230V (N465518) 944 RON
71 1 1 BRUSH HOLDER (N465517) 1772 RON
71 1 1 BRUSH HOLDER (NB158279) 3954 RON
72 1 4 SCREW (49206001) 588 RON
73 1 1 WIRE (N469365) 588 RON
74 1 1 LEADWIRE (4030101006) 588 RON
75 1 2 LEADWIRE (4030101614) 588 RON
77 1 2 INDUCTOR (4020404607) 82 RON
79 1 1 CAPACITOR (N510278) 1318 RON
80 1 1 SWITCH (N468884) 5370 RON
81 1 1 HANDLE COVER (N531537) 2182 RON
82 1 4 SCREW (N468889) 588 RON
83 1 1 CORD CLAMP (4100301008) 588 RON
84 1 1 CORDSET (Z49306025) 4827 RON
85 1 1 CORD PROTECTOR (49303607) 588 RON
86 1 1 COLLAR (4030204012) 944 RON
86 1 1 NA200922 - Indisponibil
87 1 1 SCREW (4030101008) 588 RON
88 1 1 SCREW (4030104001) 668 RON
89 1 1 PAD (4030101026) 944 RON
90 1 1 NUT (4030101022) 588 RON
91 1 1 NUT (49205013) 588 RON
92 1 1 HANDLE (4030301001) 82 RON
93 1 1 DEPTH ROD (4030101019) 588 RON
94 1 1 SPRING BRUSH (4030108002) 588 RON
95 1 2 SCREW (N468887) 588 RON
300 1 1 GEARCASE SA (N465530) 9012 RON
301 1 1 BUTTON SA (N465524) 2182 RON
302 1 1 SPINDLE SA (N465539) 18568 RON
303 1 1 INTER SHAFT SA (N465564) 20216 RON
304 1 1 N582783 - Indisponibil
304 1 1 ARMATURE SA (NA784375) 20216 RON
305 1 1 HANDLE SIDE SA (N479434) 4827 RON
800 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
801 1 1 N505291 - Indisponibil
801 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
846 1 1 SERVICE KIT (N510826) 12361 RON
861 1 1 KIT BOX (N469697) 12361 RON
