CIOCAN ROTOPERCUTOR STANLEY SFMCH900M22 Type 1
[SFMCH900M22 Type 1]
CIOCAN ROTOPERCUTOR STANLEY SFMCH900M22 Type 1
Click pentru a mari
Imagini suplimentare
CIOCAN ROTOPERCUTOR STANLEY SFMCH900M22 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR STANLEY SFMCH900M22 Type 1
Click pentru a mari
CIOCAN ROTOPERCUTOR STANLEY SFMCH900M22 Type 1
Click pentru a mari

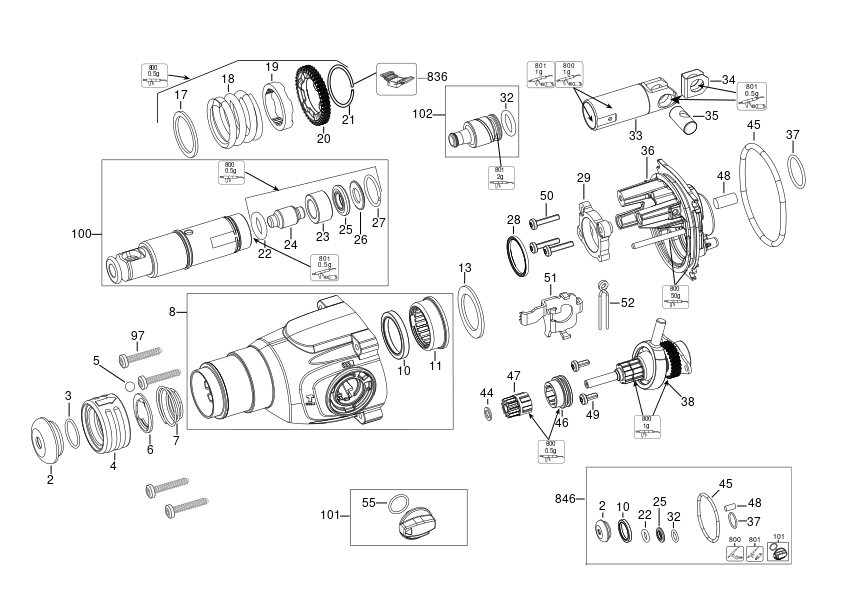

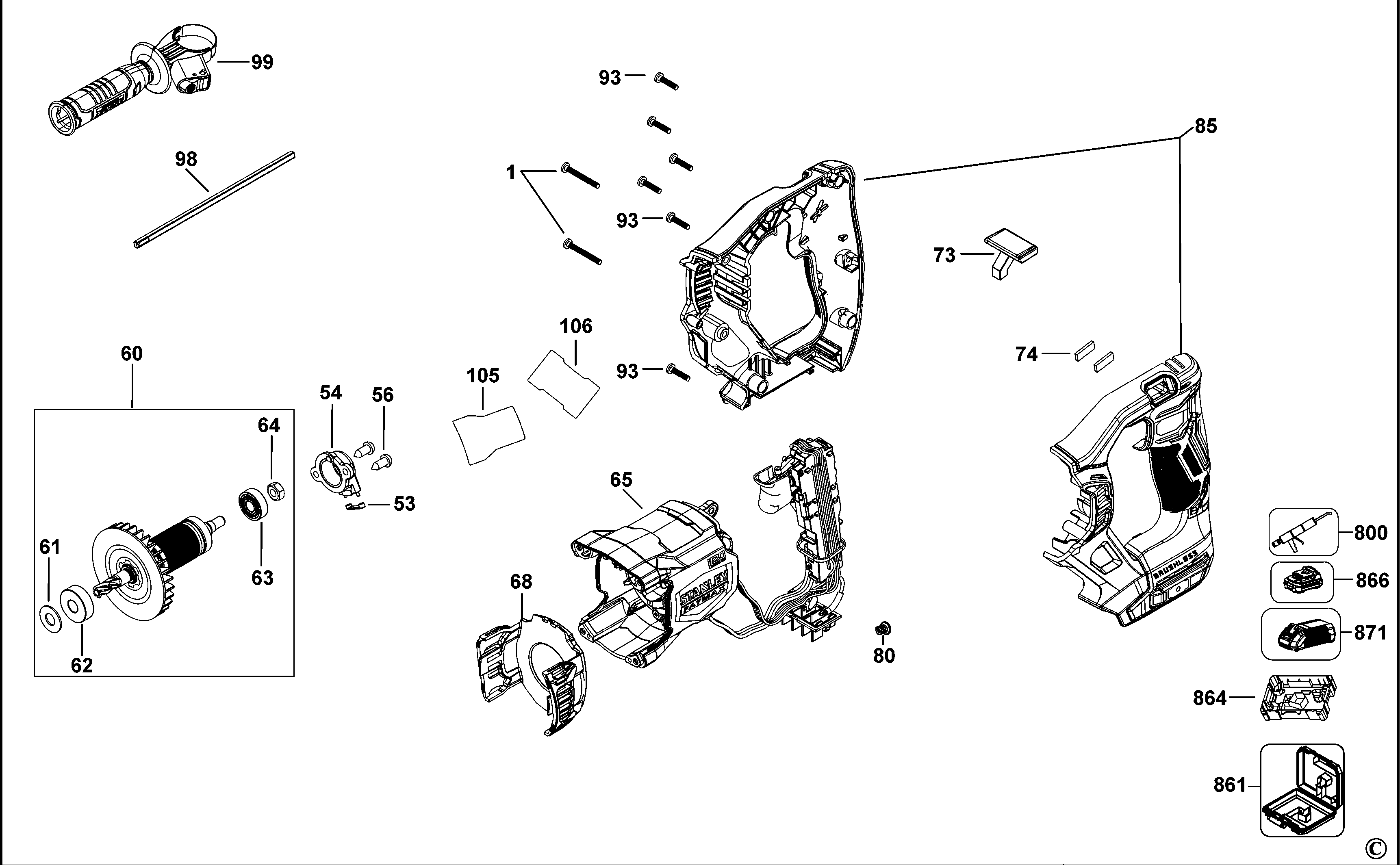

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW PLSTC THD FORM M3.5 X 30 (330065-27) 558 RON
2 1 1 SEAL LIP (323489-00) 893 RON
3 1 1 RING SNAP 21 (579212-00) 781 RON
4 1 1 SPINDLE SA (NA098071) 28836 RON
4 1 1 Sliding Tube (NA073152) 2182 RON
5 1 1 BALL (N629539) 588 RON
5 1 1 BALL 7.0 (583890-00) 781 RON
6 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
7 1 1 SPRING BEVEL (871690) 558 RON
8 1 1 HOUSING SA (N807769) 16689 RON
10 1 1 RING SEALING DIA28 (N496180) 1933 RON
11 1 1 NEEDLE BEARING (N020023) 3018 RON
13 1 1 WASHER,NEEDLE BEARING (1005788-00) 82 RON
17 1 1 WASHER (N899980) 668 RON
17 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
18 1 1 SPRING (N264677) 1318 RON
19 1 1 O RING (NA014716) 4827 RON
19 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
20 1 1 Gear (NA012069) 5370 RON
20 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
21 1 1 LOCKING RING (N869110) 588 RON
21 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
22 1 1 O-RING 13X4 (N394276) 82 RON
23 1 1 GUIDE BEAT PIECE (N470388) 1772 RON
24 1 1 BEAT PIECE (NA534440) 2796 RON
25 1 1 RING RAMCATCHER (580990-00) 1117 RON
26 1 1 RAM CATCHER OPP/MPP (N531681) 1933 RON
27 1 1 RING SNAP 22.5 (N294259) 588 RON
28 1 1 RING (N267565) 82 RON
29 1 1 BEARING (N417745) 2556 RON
32 1 1 O RING 14X3 (N264642) 114 RON
33 1 1 PISTON (N417749) 9012 RON
34 1 1 WASHER U SHAPE (1005842-00) 558 RON
35 1 1 CROSS BOLT (N325041) 1630 RON
36 1 1 HOUSING BR OPP/MPP WITH PACK FOR SERVICE (N495931) 9012 RON
37 1 1 O RING 22X2 (N264673) 588 RON
38 1 1 NB464073 - Indisponibil
44 1 1 WASHER INTERSHAFT FRONT (1005844-00) 558 RON
45 1 1 O RING 68X4 (N264672) 668 RON
46 1 1 COLLAR (N417853) 1772 RON
47 1 1 Gear (N417859) 4355 RON
48 1 1 FELT (1005812-00) 558 RON
49 1 2 SCREW TAPTITE M4X10 ANU LOCK (N445171) 588 RON
50 1 3 SCREW TAPTITE M4X20 ANU LOCK (324006-15) 558 RON
51 1 1 PLATE (NA048777) 1772 RON
52 1 1 SPRING MODE SWITCH (1005795-00) 558 RON
53 1 1 CAP (N261987) 588 RON
54 1 1 HE BEARING CAP (N467131) 588 RON
55 1 1 SERING (N091381-00) 588 RON
56 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
60 1 1 ARMATURE SA (N485568) 18568 RON
61 1 1 WASHER (N554533) 588 RON
62 1 1 BEARING BALL (330003-60) 190 RON
63 1 1 CE BEARING (1005895-00) 1788 RON
64 1 1 NUT HEX M6 LH (N467767) 588 RON
65 1 1 MOTOR & SWITCH SA (N807757) 57833 RON
65 1 1 NB476218 - Indisponibil
68 1 1 BAFFLE FAN (N732235) 944 RON
73 1 1 ACTUATOR FWD/REV (N738183) 588 RON
74 1 2 RUBBER PAD (N328740) 558 RON
80 1 1 SPRING (N453948) 3268 RON
85 1 1 CLAMSHELL SET (N764303) 5370 RON
85 1 1 NB457993 - Indisponibil
93 1 6 SCREW (N771107) 588 RON
97 1 4 SCREW PLSTC THD FORM M4X30 T20 (330065-28) 558 RON
98 1 1 STOP (N510648) 668 RON
99 1 1 HANDLE SIDE SA (N764300) 10241 RON
99 1 1 NA809369 - Indisponibil
100 1 1 SPINDLE SA (NA098071) 28836 RON
100 1 1 SPINDLE SA (NA098108) 25728 RON
100 1 1 SASPINDLE+SLIDINGTUBE HAMMER FOR SERVICE (NA419837) 18568 RON
101 1 1 SELECTOR SA (N807782) 3268 RON
102 1 1 RAM SA (N418035) 5370 RON
105 1 1 RATING LABEL (NA590809) 588 RON
106 1 1 LABEL (N765764) 588 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
836 1 1 SERVICE TOOLING KIT (596005-99) 84238 RON
836 1 1 S.T.CIRCLIP REMOVER (1003960-99) 74397 RON
836 1 1 S.T.CIRCLIP REMOVER (1003959-99) 42123 RON
846 1 1 ERVICE KIT (N807790) 33797 RON
861 1 1 KITBOX (N636764) 25728 RON
864 1 1 INSERT (N743996) 6688 RON
866 1 1 BATTERY (NA158849) 10889 RON
871 1 1 CHARGER SA (NA378064) 32327 RON
