Top » Piese de schimb » PIESE METABO » 0910057529 11

Workstand UNIVERSAL-KGS - 0910057529 11 - -
[0910057529 11]
Workstand UNIVERSAL-KGS - 0910057529 11 - -
Click pentru a mari
Imagini suplimentare
Workstand UNIVERSAL-KGS - 0910057529 11 - -
Click pentru a mari

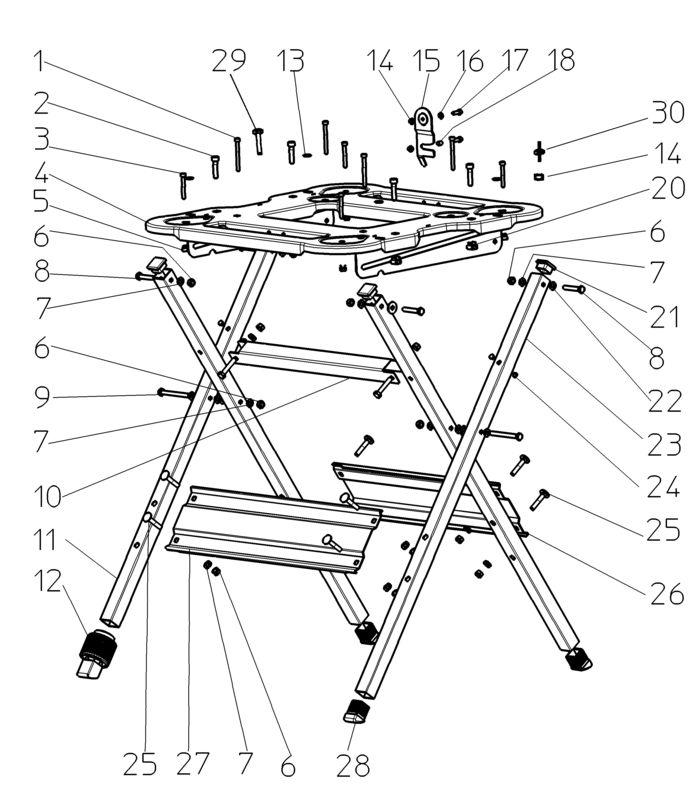

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
2 1 4 Cap screw (86121000812) 446 RON
3 1 4 HEXAGON SOCKET HEAD CAP SCREW M 6X45 VER (86121029632) 446 RON
4 1 1 TABLE PANEL UNI-MASCHINENST.-KGS (81382687090) 59166 RON
5 1 4 CAGE NUT M 6 BLECHST?RKE 1,7-2,5 (86264619660) 446 RON
6 1 16 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
7 1 24 Washer (86300016322) Indisponibil Indisponibil
8 1 6 HEXAGON HEAD SCREW M 8X45 VERZ. (86102001085) 446 RON
9 1 2 Hex head screw (86102045619) 446 RON
10 1 1 STANCHION BL 1,50X99X454 UNI-MASCHINENST (81382687392) 11519 RON
11 1 1 LEG 4KT 30X30X1,5X865 UNI-MASCHINENST.-K (81382687171) 11519 RON
12 1 1 ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR (82010200787) 7157 RON
13 1 12 Washer (86305002087) 446 RON
14 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
15 1 1 FASTENING HOOK BL 2,00X45X124 (81492043555) 105 RON
16 1 1 CUP SPRING (87053081619) 446 RON
17 1 2 Cap screw (86121023081) 446 RON
18 1 1 SPACER SLEEVE (86442059304) 446 RON
20 1 4 CAGE NUT M 8 BLECHST?RKE 1,8-3,2 (86264139374) 781 RON
21 1 4 Lamellar plug black (81391059264) 446 RON
22 1 2 Washer (86305002486) 446 RON
23 1 3 LEG 4KT 30X30X1,5X940 UNI-MASCHINENST.-K (81382687155) 10288 RON
24 1 4 CABLE GLAND STOPPING PLUG 15/8,5X6,9 (88243687730) 446 RON
25 1 8 Truss head screw (86110059297) 446 RON
26 1 1 CROSSHEAD BL 1,50X170X454 UNI-MASCHINENS (81382687139) 8275 RON
27 1 1 CROSSHEAD (81382687112) 8275 RON
28 1 3 FOOT (81381726173) 1340 RON
29 1 4 Cap screw (86121016638) 446 RON
30 1 2 THREADED BOLT RD 6X29,2 M6/SW10 MASCHINE (81485713790) 190 RON
