Workstand KGS - 0910003518 11 - -
[0910003518 11]
Workstand KGS - 0910003518 11 - -
Click pentru a mari
Imagini suplimentare
Workstand KGS - 0910003518 11 - -
Click pentru a mari

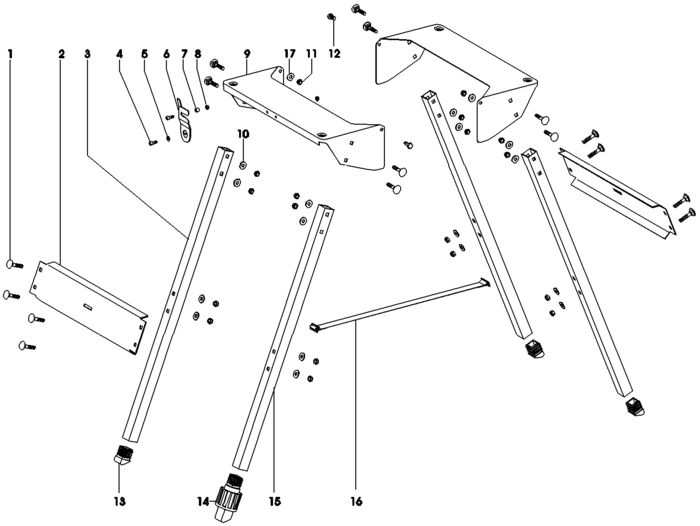

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 16 Truss head screw (86110059297) 446 RON
2 1 2 STANCHION BL 2X140X502 (81382210057) 7157 RON
3 1 3 LEG 4KT 30X30X1,5X840 (81382210073) 11519 RON
4 1 2 Cap screw (86121023081) 446 RON
5 1 1 CUP SPRING (87053081619) 446 RON
6 1 1 FASTENING HOOK BL 2,00X45X124 (81492043555) 105 RON
7 1 1 SPACER SLEEVE (86442059304) 446 RON
8 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
9 1 2 TABLE PANEL BL 2X220X740 (81392203121) 15993 RON
10 1 16 Washer (86305002486) 446 RON
12 1 2 Hex head screw (86103001178) Indisponibil Indisponibil
13 1 3 FOOT (81381726173) 1340 RON
14 1 1 ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR (82010200787) 7157 RON
15 1 1 LEG 4KT 30X30X1,5X755 (81382210081) 955 RON
16 1 1 STRAP 25X550 -1 (84841203459) 3018 RON
17 1 2 Washer (86300016322) Indisponibil Indisponibil
18 1 18 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
7500 1 1 SPARE PARTS LIST 4-SEITIG/A4 ART.-NR. 09 (81153658265) 105 RON
