Top » Piese de schimb » PIESE METABO » 0021152501 10

WIG 250 AC/DC - 0021152501 10 - EU 230V
[0021152501 10]
WIG 250 AC/DC - 0021152501 10 - EU 230V
Click pentru a mari
Imagini suplimentare
WIG 250 AC/DC - 0021152501 10 - EU 230V
Click pentru a mari

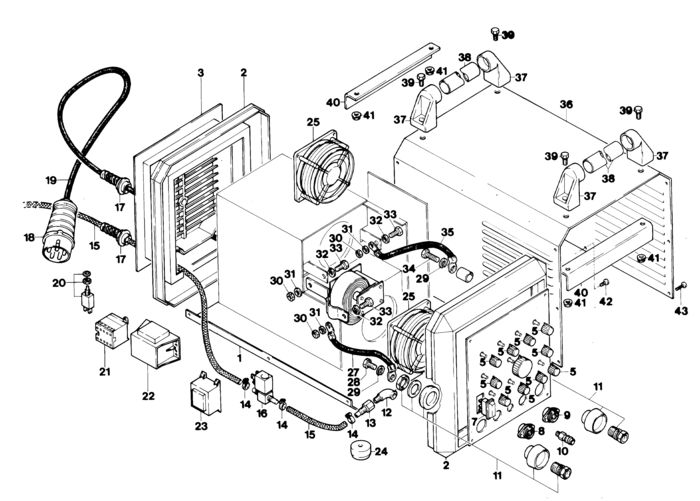

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 CARRIER FRAME 50X328X358 (81321112389) 13756 RON
3 1 1 LOUVERED PANEL 52,5X257X289 (81321401712) 10288 RON
5 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
7 1 1 8111123269 - Indisponibil
8 1 1 SOCKET M.FLANSCH M 13 (88215115624) 15993 RON
9 1 1 SOCKET M.FLANSCH M 13 (88215115624) 15993 RON
10 1 1 QUICK COUPLING 2-TEILIG M.MUTTER U.SCHLA (87710004883) 10288 RON
11 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
12 1 1 7871010905 - Indisponibil
14 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
15 1 1 7850012088 - Indisponibil
16 1 1 SOLENOID VALVE M. ZWISCHENPL. /ET (81002185713) 21361 RON
17 1 1 8240123801 - Indisponibil
18 1 1 PLUG 16 A CEE (88215068120) 5479 RON
20 1 1 MOTOR PROTECTION RELAY 1,5 A ETA 106-P10 (88100004900) 13756 RON
21 1 1 CONTACTOR 230 V 40-60 HZ B 6-30-10 (88104073825) 24046 RON
22 1 1 PILOT TRANSFORMER 380/330/220 V ET (81327140244) 54357 RON
23 1 1 1327140236 - Indisponibil
24 1 1 RUBBER DOOR STOP RD 40X25 MIT H?LSE (87056016427) 1564 RON
25 1 1 COOLING FAN ET (88041140179) 171574 RON
28 1 1 HEXAGON HEAD SCREW M 10X16 (86103001321) 105 RON
29 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
30 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
31 1 1 Washer (86300016322) Indisponibil Indisponibil
32 1 1 Washer (86300016322) Indisponibil Indisponibil
33 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
37 1 1 1321115663 - Indisponibil
38 1 1 1341405943 - Indisponibil
39 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
40 1 1 1322115659 - Indisponibil
41 1 1 Flange nut (6209110995) 446 RON
42 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
43 1 1 6189145754 - Indisponibil
7040 1 1 CONTROL PART ET (88106655899) 392698 RON
7060 1 1 POWER UNIT PCB NTAC4 ET (88106655910) 14839 RON
7070 1 1 PRINTED CIRCUIT BOARD Typ:IDRIVER6 ET (88106655929) 197187 RON
7080 1 1 PRINTED CIRCUIT BOARD TYP:ACMODUL4 ET (88106655937) 197187 RON
7090 1 1 8102655940 - Indisponibil
7100 1 1 PRINTED CIRCUIT BOARD TYP:INPWBR4 ET (88106655953) 343820 RON
7120 1 1 POWER SWITCH AC-SWITCH250 ET (88112655973) 78836 RON
7170 1 1 SHUNT ET (88051656025) 41718 RON
7190 1 1 COOLING FAN ET (88041656043) 197187 RON
7270 1 1 PRINTED CIRCUIT BOARD TYP:?BERTRAGER ACD (88106656127) 295725 RON
